Specifications
Brand Name :
LEEHO
Model Number :
CM144H
Certification :
IEC61215/IEC61730/TUV/CQC/ISO
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/P, Western Union, MoneyGram
Packaging Details :
pallet loading
Type :
Half Cut
Junction box :
IP65 Rated
Warranty :
12YEARS/ 30YEARS
Frame :
Anodized Aluminium Alloy
Material :
mono 166*166mm solar cell
Number of cells :
72pcs CUT CELLS
Product name :
440W solar panel
Application :
Solar Home System,Roof Solar System or Solar Farm,Residential/Commercial,Solar energy systems,Solar Power System
Weight :
14
Description

430w/440w/445w/450w 144cells Ldk A Grade Mono Half Cut Solar Panel

FEATURES:

Higher system voltages can effectively reduce BOS
Lower operating temperature and temperature coefficient, obtain higher profit
Significantly reduce the effect of hot spot temperature and shadow shielding
Half-cut design for better mechanical load performance
Ease of use in more demanding environments

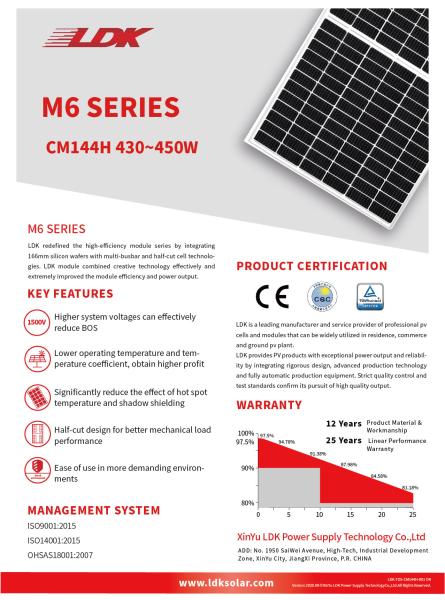

M6 SERIES
LDK redefined the high-efficiency module series by integrating 166mm silicon wafers with multi-busbar and half-cut cell technologies. LDK module combined creative technology effectively and extremely improved the module efficiency and power output

ELECTRICAL PARAMETERS@STC CM144H-430〜450

Max. Power Output Pmax (W)

430

435

440

445

450

Power Tolerance

0-3%

0 〜+3%

0-+3%

0~+3%

0 〜+3%

Max. Power Voltage Vmp (V)

41.27

41.47

41.67

41.87

42.06

Max. Power Current Imp (A)

10.42

1049

10.56

10.63

10.7

Open Circuit Voltage Voc (V)

49.65

49.85

50.05

50.26

50.43

Short Circuit Current Isc (A)

ll.O8

Il.l5

H.22

H.29

H.36

Module Efficiency (%)

19.46

19.69

19.92

20.14

20.37

STC (Standard Test Condition): Irradiance lOOOW/m2 , Cell Temperature 25OC, Air Mass 1.5

ELECTRICAL PARAMETERS@NMOT

Max. Power Output Pmax (W)

323

327

331

334

338

Max. Power Voltage Vmp (V)

38.45

38.64

38.82

39.01

39.19

Max. Power Current Imp (A)

8.4

8.46

8.52

8.57

8.63

Open Circuit Voltage Voc (V)

47.19

47.38

47.57

47.77

47.93

Short Circuit Current Isc (A)

8.93

8.99

9.05

9.1

9.16

Nominal Module Operating Temperature (NMOT), Irradiance of 800W/m2, Spectrum AM 1.5, Ambient Temperature 20°C, Wind Speed Im/s

TEMPERATURE COEFFICIENTS

Temperature Coefficients of Pmp

-0.36%/°C

Temperature Coefficients of Voc

-0.29%/°C

Temperature Coefficients of Isc

+0.048%/°C

MECHANICAL PARAMETERS

Cell Type

Mono 166 X83mm

Number of Cells

I44pcs (2X (6X12))

Dimensions (L^W*H)

2l08Xl048X35mm

Weight

25kg

Frame

Anodized Aluminum

Junction Box

IP67, 3 bypass diodes

Cable, Length

4mm2, 350mm

Product Description

Glass

*Anti Reflective Glass

*Self-cleaning function

*Module efficiency is increased by 2%

*Service life is as long as25years(30years optional)

*Translucency of normal luminance is increased by 2%

Solar Cell

* Anti-PID
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module

Frame

* Conventional frame
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and prolong service life

Junction box

*Heat dissipation

*Long service life

*IP67 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition
