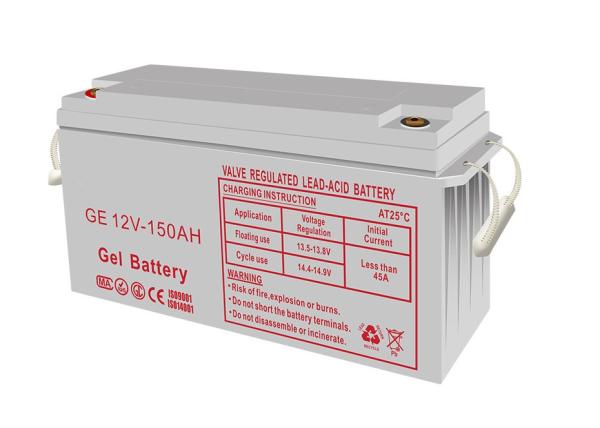

12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply
Specifications
Brand Name :
LEEHO
Model Number :
GEL 12V 150AH
Certification :
IEC61215/IEC61730/TUV/CQC/ISO
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000 Piece/Pieces per Month
Packaging Details :
Package by strong kraft box.
SIZE :
484*170*247
Battery Size: :
12V`150AH
Battery type: :
Gel Battery
Capacity: :
150Ah@10hr-rate
Design life: :
10years
Case material: :
A.B.S
Application: :
Home Appliances, Golf Carts, Electric Power Systems, Solar Energy
Weight: :
41KGS
Terminal type: :
T11
Warranty: :
1year
Self-discharge: :
Less 2%/month
Description

12V 150AH Solar Gel Battery Communication Power Supply Sealed Lead Acid Gel Battery

Nominal Voltage 12V
Nominal Capacity(10HR) 150AH
Dimension Length 484 ±3mm (19.06 inches)
Width 170 ±2mm (6.69 inches)
Container Height 242 ±2mm (9.53 inches)
Total Height (withTerminal) 247 ±2mm (9.72 inches)
Approx Weight Approx 41 Kg (90.39Ibs)
Terminal T11
Container Material ABS
Rated Capacity 160.8 AH/8.04A (20hr ,1.80V/cell,25℃/77℉)
150.0 AH/15.0A (10hr,1.80V/cell,25℃/77℉)
131.6 AH/26.3A (5hr,1.75V/cell,25℃/77℉)
119.3 AH/39.8A (3hr,1.75V/cell,25℃/77℉)
96.9 AH/96.9A (1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current 1500A (5s)
Internal Resistance Approx 2.7mΩ
Operating Temp.Range Discharge : -30~50℃ (5~122℉)
Charge : 0~40℃ (32~104℉)
Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range 25 ±3℃ (77 ±5℉ )
Cycle Use Initial Charging Current less than 45 A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature 40℃ (104 ℉)103%
25℃ ( 77 ℉ )100%
0℃ ( 32℉ ) 86%
Self Discharge GEL series batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher temperatures the time interval will be shorter.

FEATURES:

· low resistance characteristics and high efficiency

· low self-discharge, strong recovery ability, adaptable temperature: -20℃-60℃
· Leadingot purity reaches 99.9%
· Anti-fall, anti-corrosion, strong resistance to pressure

Safety Valve:With up-dated AGM valve regulated technology
Terminal:Good Electrical conductivity,Good anti-corrosion
Through-wall welding thechnology:Advanced pole-group welding, casting and through-wall welding technology;

Plate:The raw material is lead ingot with purity up to 99.9%
Container:Battery cabinets are applied ABS material.
Our Advantages
The raw material is LEAD ingot with purity up to 99.9%:
1.Durable;
2.multiple times of cycle;
3.10years design life.
Patented formula:
1.1 year storage ;
3.Strong recovery ability;
2.Low self-discharge;
4.Adaptable temperature: -20℃-60℃
Automatic equipment production:
1.Standardizied quality;
2.High efficiency production;
3.7 days delivery.
Solar/wind energy photovoltaic system
Armamentarium
Electrocar
Monitoring system
Educational Multimedia Project

Applied range

Telecom, Internet (cloud computing/Internet of Things/Big data center/ARTIFICIAL intelligence), Government, banking,Manufacturing,Transportation, health care, education, wholesale and retail, petroleum and petrochemical, electricity, securities and other finance, insurance,Logistics, households and individuals, coal and other energy, research, others...
20 Years industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
