10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave
10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave
Specifications
Brand Name :
LEEHO
Model Number :
LH-10000VA 8000W
Certification :
IEC61215/IEC61730/TUV/CQC/ISO
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Battery type :
Lead Acid,Lithium,maintenance free
MPPT/PWM :
MPPT
MAXIMUM SOLAR CHARGE CURRENT :
60A/48v
Application :
Home,Commercial,Industrial,Dooor control/Medical/Audio/Wind Energy/Solar Energy,Residential
Work time (h) :
24 Hours
Load power (w) :
8kw
Output voltage (v) :
220-240/110-270V
Description

10KVA/8KW 60A LOW FREQUENCY PURE SINE WAVE OFF GRIDE MPPT solar power system for home GEL BATTERY

Off grid solar power systems, or in other words off grid solar kits, are not connected to utility company. They cannot take or feed power back into the grid. They keep the energy produced by the solar system into the battery bank.

NO. Dscreption Specification QTY
0730 * Low frequency INVERTER & CONTROLLER 8KW 48v 60A / 220v SET 1
0691 LDK 440W 42V BICFACIAL A GRADE PCS 18
0668 * 12v200ah 530*248*265 pc 12
combine box 4input 1output 1
Totally 32

DETAILS:

Name QTY L W H CBM weight totally
CBM		 totally
weight
Low frequency INVERTER & CONTROLLER 8KW 1 720 335 210 0.05 29.00 0.05 29.00
12v200ah 12 530 248 265 0.03 60.30 0.42 723.60
LDK 440W 42V BICFACIAL 18 2200 35 1085 0.08 24.00 1.50 432.00
TOTALLY: 1.97 1184.60

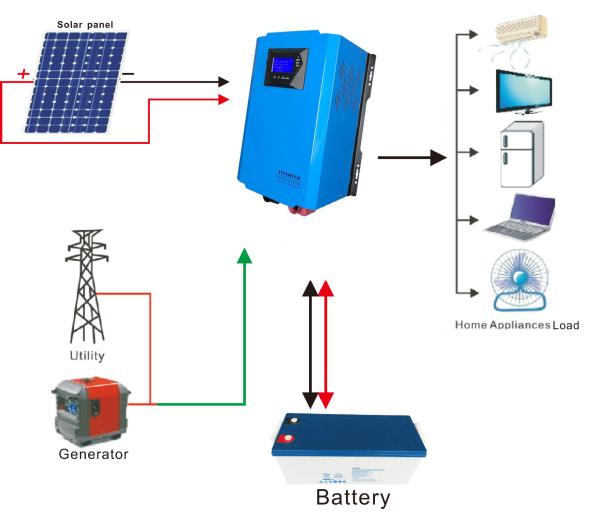

SYSTEM:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

INVERTER:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

Smart Inverter LH series
Features:
Pure sine ware output
Optional MPPT/PWM solar charge controller 60A MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode” to Conserve Energy Auto restart when Ac is recovering
Smart battery charger design for optimized battery performance Selectable charging current based on applications
AC input/DC input/Solar input optional priority
Auto Restart Voltage
Capacity(VA) LH1000V LH1500VA LH2000VA LH3000VA LH4000VA LH5000VA LH6000VA LH7000VA LH8000VA LH10000VA
Rated Power 800W 1200W 1600W 2400W 3200W 4000W 5000W 5600W 6400W 8000W
Voltage(DC) 12V 24V/48V 48V
Nominal Voltage 220VAC
Voltage Range 154-265VAC ;185-264VAC ( selectable)
Frequency 50-60HZ Auto sensing
Power Factor 0.8
Voltage 220VAC
Frequency 50/60HZ
Waveform Pure Sine Wave
Transfer Time (AC
to DC)		 <8ms
Transfer Time (DC
to AC)		 <8ms
Output Voltage
Regulation		 土10%
Bypass Mode Yes
Saver Mode Yes
Efficiency >98%
Input Protection Circuit Breaker
Output Protection Circuit Breaker
Battery Type VRLA / GEL /GEL DEEP CYCLE
Charging Current 20A 30A 20A/10A 30A/15A 40A/20A 55A/28A 30A 40A 45A 55A
Low Level disconnect
(Selectable)		 10V- 11V 20V -22V/40V-44V 40V -42V
PWM controller
Voltage range		 15VDC-33VDC 30VDC-66VDC 60VDC-150VDC
PWM Maximum PV display open
circuit voltage		 38V 75V 75V
Maximum PV
array power		 720W 1400W/2800W 3400W
MPPT control
voltage range		 18V-150V 34V-150V/68V-150V 60V-150V
MPPT Maximum PV display open
circuit voltage		 150VDC
Maximum solar
charge current		 60A
LCD indicator
status		 AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc.
LED indicator status AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red
LOW battery alarm Audible alarm-5 seconds beeping
Overload alarm Audible alarm- continuous beeping
Fault Audible alarm- continuous beeping
Temperature 0-60℃
Humidity —10℃~90℃ Non condensing
Accoustic Noise(db) >55dB
Size L*W*H(mm) 470mm*335mm*210mm 720mm*335mmm*210mm
Weight (kg) 12 18.5 18.5 20 22 22 23 27 30 33

SOLAR PANEL:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

ELECTRICAL PARAMETERS@STC CM144H-430〜450
Max. Power Output Pmax (W) 430 435 440 445 450
Power Tolerance 0-3% 0 〜+3% 0-+3% 0~+3% 0 〜+3%
Max. Power Voltage Vmp (V) 41.27 41.47 41.67 41.87 42.06
Max. Power Current Imp (A) 10.42 1049 10.56 10.63 10.7
Open Circuit Voltage Voc (V) 49.65 49.85 50.05 50.26 50.43
Short Circuit Current Isc (A) ll.O8 Il.l5 H.22 H.29 H.36
Module Efficiency (%) 19.46 19.69 19.92 20.14 20.37
STC (Standard Test Condition): Irradiance lOOOW/m2 , Cell Temperature 25OC, Air Mass 1.5
ELECTRICAL PARAMETERS@NMOT
Max. Power Output Pmax (W) 323 327 331 334 338
Max. Power Voltage Vmp (V) 38.45 38.64 38.82 39.01 39.19
Max. Power Current Imp (A) 8.4 8.46 8.52 8.57 8.63
Open Circuit Voltage Voc (V) 47.19 47.38 47.57 47.77 47.93
Short Circuit Current Isc (A) 8.93 8.99 9.05 9.1 9.16
Nominal Module Operating Temperature (NMOT), Irradiance of 800W/m2, Spectrum AM 1.5, Ambient Temperature 20°C, Wind Speed Im/s
TEMPERATURE COEFFICIENTS
Temperature Coefficients of Pmp -0.36%/°C
Temperature Coefficients of Voc -0.29%/°C
Temperature Coefficients of Isc +0.048%/°C
MECHANICAL PARAMETERS
Cell Type Mono 166 X83mm
Number of Cells I44pcs (2X (6X12))
Dimensions (L^W*H) 2l08Xl048X35mm
Weight 25kg
Frame Anodized Aluminum
Junction Box IP67, 3 bypass diodes
Cable, Length 4mm2, 350mm

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

BATTERY:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

Product Paramenters

Nominal Voltage 12V
Nominal Capacity (10HR) 200AH
Dimension Length 522 ±3mm (20.55 inches)
Width 240 ±2mm (9.45 inches)
Container Height 221 ±2mm (8.70 inches)
Total Height (withTerminal) 226 ±2mm (8.89 inches)
Approx Weight Approx 55.0 kg (121lbs)
Terminal T11
Container Material ABS
Rated Capacity 209.1 AH/10.4A (20hr ,1.80V/cell,25℃/77℉)
200.0 AH/20.0A (10hr,1.80V/cell,25℃/77℉)
173.0 A H/34.6A (5hr,1.75V/cell,25℃/77℉)
157.2 AH/52.4A (3hr,1.75V/cell,25℃/77℉)
122.8 AH/122.8A (1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current 1800A (5s)
Internal Resistance Approx 3.4mΩ
Operating Temp.Range Discharge : -30~50℃ (5~122℉)
Charge : 0~40℃ (32~104℉)
Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range 25 ±3℃ (77 ±5℉ )
Cycle Use Initial Charging Current less than 60.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature 40℃ (104 ℉)103%
25℃ ( 77 ℉ )100%
0℃ ( 32℉ ) 86%
Self Discharge GEL series batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher
temperatures the time interval will be shorter.

Warranty
FULL SETS SYSTEM 1years
Solar

12years products on materials

25years liner power performance
Inverter 1year
GEL battery 1year
LI battery 3years
GRAPHENE battery 5years
