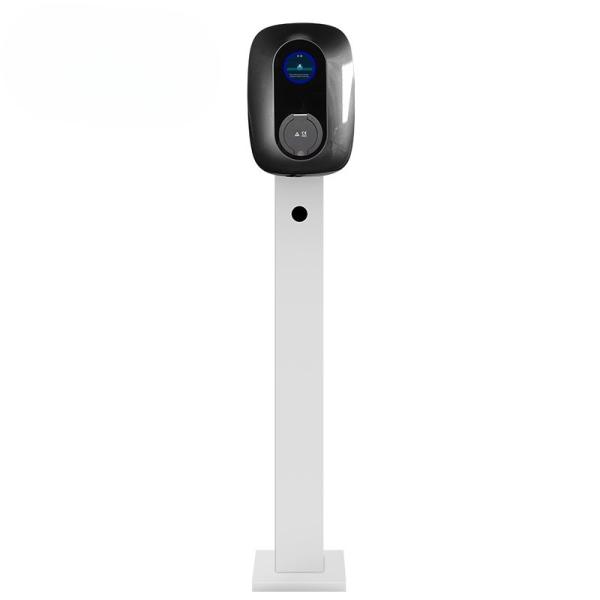

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger
Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger
Specifications
Place of Origin :
Guangdong, China
Brand Name :
ohory electric
Certification :
FCC, ETL&CETL, CE , TÜVmark certified, CQC compliant.
MOQ :
10set
Price :
Confirm price based on product
Packaging Details :
According to requirement
Delivery Time :
Depends on Total Quantity
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :
100 set/day
Communication :
WiFi&Bluetooth
Input Cable Length :
3.5m/5m/7m/7.5m
Temperature :
-30~+50℃
Humidity :
5%~95%RH
Protection :
IP66
Product Weight :
<8.9KG
Leakage Protection :
Type A+DC6mA
Description

Product Features
Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Strong compatibility with electric car models.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Multiple intelligent detection and protection functions.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Voltage¤t detection and accurate power calculation.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Available for automatically locking the charging gun.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger 3-inch round LCD displays standby, charging and fault status.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Various authorization modes with plug-and-charge, RFID card charging, App charging, Code scanning charging, Button Reservation Charging, etc.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Various charging methods of automatic full charging, reservation charging, etc.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Four levels of current setting,equipped with memory function, which defaults to the nearest current level after switching on, without the need for repeated settings.
Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Support OCPP1.6 protocol (can connect to standard OCPP platforms specified by customers)

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger ETL&CETL, FCC, TÜVmark, CE, and CQC certification standards compliant.

Applications

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Suitable for home use in residential quarters, private residences, factories and other places.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Suitable for commercial use in office buildings, urban complexes, etc.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Suitable for parking lots, public charging station,etc.

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger Suitable for New Energy Vehicle 4S Stores, workshop debugging, driving school, etc.

Product Parameters

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger

Input Voltage AC230V±10% AC400V±10% AC400V±10%
Input Frequency 50/60Hz±1Hz
Output Power 7kW 11kW 22kW
Current 32A 16A(3-phase) 32A(3-phase)
Display 3 inches round LCD screen
Communication RFID；WiFi&Bluetooth；4G；Ethernet
Gun Cable Length /
Temperature -30~+50℃
Humidity 5%~95%RH
Protection IP54(vehicle connertor mated with holder) IP65(vehicle connertor mated with cap)
Appearance Size 368mm×256mm×143mm
Product Weight <2.8KG
Leakage Protection Type A+DC6mA

Type 2 Connector 7kW/11kW/22kW Wallbox / Floor Mounted AC EV Charger
