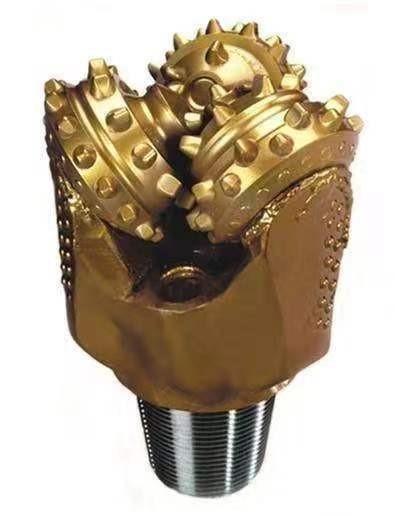

Inserted Teeth Tri Cone Oil Drill Bit HDD Rock Bits Anti Corrosion
Inserted Teeth Tri Cone Oil Drill Bit HDD Rock Bits Anti Corrosion
Specifications
Brand Name :
OHANG TECH
Model Number :
118-660.4mm
Place of Origin :
CHINA
MOQ :
1
Packaging Details :
Sea Freight Packing
Delivery Time :
30-50 days
Payment Terms :
T/T
Name :
Tricone drill bit
Seal :
Metal / Rubber
for :
drill / HDD
Description

Tricone Drill Bit (Full Series of Roller Bearing-Rubber Sealing-Inserted Teeth Tri-Cone Bits) Basic Info.

Transport Package
Paper Box
Origin
Hebei
HS Code
8207191000
Production Capacity
50000

Product Description

Product Features
SRM (Slide Bearing-Rubber Sealing Milled Teeth) bits can load a higher WOB in normal RPM condition. It applies in different formation from very soft to very hard matched with different cutting structure.
Product Features:
- Slide bearing is applied
- Hard alloy is welded on the surface of tooth to increase the wearing resistance performance
- Cone bearing is silver coated which provides more loading ability and anti-seizure ability
- O sealing ring is made of HNBR which is more corrosion and high temperature resistant; larger sealing ring cross section increases sealing adaptability
- Steel ball locked cone provides more security and is applicable to high speed rotation.
- 250 ºC high temperature and anti-corrosion lubricant is applied which the high temperature resistance performance of bit sealing lubricating system.
- Optimized milled teeth surface weld improves the anti-corrosion performance of drill bit
- Optimized milled teeth quantity and teeth arrangement structure give full play to the cutting ability and cutting speed of drill bits.
Tricone Bit Specification
Conventional Inserted Teeth Tri-Cone Bits
IADC Code Size Available Protodrakonov Scale of Hardness Recommend WOB
KN/mm		 Recommend RPM
3-7/8" 4-3/8" 4-5/8" 5-1/4" 6" 7-1/2" 8-1/2" 8-3/4" 9-1/2" 12-1/2"
98.4mm 111.1mm 117.5mm 133.4mm 152.4mm 190.5mm 215.9mm 222.2mm 241.3mm 311.1mm
437 √ √ f=5~7 0.35~0.9 60~150
517 √ √ √ √ f=6~8 0.4~0.95 60~150
537 √ √ f=8~10 0.75~0.85 60~150
637 f=10~12 0.75~1.20 40~70
2-3/8REG 2-7/8REG 3-1/2REG 4-1/2REG 6-5/8REG "√" means regularly available products; other types or sizes shall be custom made accordingly.
Thread Connection Available
Conventional Milled Teeth Tri-Cone Bits
IADC Code Size Available Protodrakonov Scale of Hardness Recommend WOB
KN/mm		 Recommend RPM
3-7/8" 4-3/8" 4-5/8" 5-1/4" 6" 7-1/2" 8-1/2" 8-3/4" 9-1/2" 12-1/2"
98.4mm 111.1mm 117.5mm 133.4mm 152.4mm 190.5mm 215.9mm 222.2mm 241.3mm 311.1mm
125 f=1~3 0.3~0.7 80~200
131 √ √ √ √ √ f=1~3 0.3~0.7 80~200
135 √ √ √ √ √ f=3~5 0.4~0.8 70~180
145 √ √ √ √ √ f=4~6 0.75~0.85 60~160
2-3/8REG 2-7/8REG 3-1/2REG 4-1/2REG 6-5/8REG "√" means regularly available products; other types or sizes shall be custom made accordingly.
Thread Connection Available
