Filter press with 0.4Mpa Stainless steel vertical filter plate
Filter press with 0.4Mpa Stainless steel vertical filter plate
Filter press with 0.4Mpa Stainless steel vertical filter plate
Filter press with 0.4Mpa Stainless steel vertical filter plate
Filter press with 0.4Mpa Stainless steel vertical filter plate
Filter press with 0.4Mpa Stainless steel vertical filter plate
Filter press with 0.4Mpa Stainless steel vertical filter plate
Filter press with 0.4Mpa Stainless steel vertical filter plate
Specifications
Place of Origin :
China(Yixing, Jiangsu)
Brand Name :
Juneng Machinery
Certification :
CE、 ASME U、ISO9001
Model Number :
NYB-30
MOQ :
One set
Packaging Details :
Standard Wooden Case
Delivery Time :
60 days
Payment Terms :
TT
Supply Ability :
40 set / months
Price :
USD $ 14925 per set
Other Name :
Oil bleaching filter
Material :
SS304
Structure :
Vertical
Operation :
Hermetic
Clean :
Water flushing
Discharge :
Vibtation discharging
Description

Filter press with 0.4Mpa Stainless steel vertical filter plate, capacity 6-8T/H

Product description:

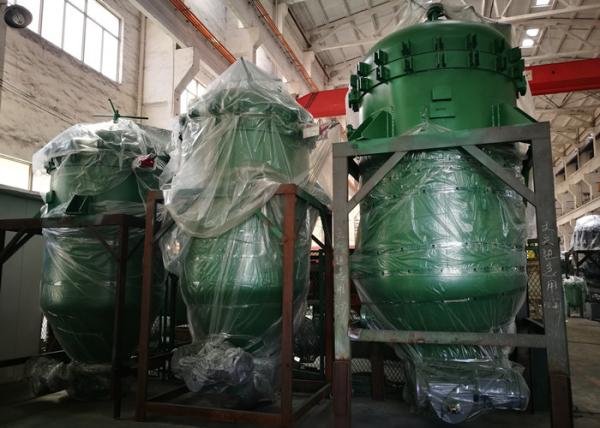

The filter is composed of shell, filtration plate, cover, and automatic dump device. Among them, the filtration plate is made of many layers of stainless steel filtration materials, and they re installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

This model is a combination structure. The customer use it directly when the machine arrive to plant .

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

Application:

Oil industry crude oil , bleached oil, hydrided oil, radonized oil, stearin, fatty acid, etc.(such as soybean oil, rap seed oil, palm oil)
Petrochemical products diesel oil, lubricating oil, paraffin and mineral moil products
Organic chemical products various organic acid, ester, benzene and aldehyde
Oil paint resin, varnish, dye and lacquer


Product competitive advantage:

This equipment has many advantages such as :

1 . Unique structure, compact volume, highfilter efficiency, fineness of filtered liquor

2 . No material wastage, without consumption of filter paper, filter cloth.

3 . It’s only consuming small quantity of filter aid.

4 . It can be conveniently maintained, cleaned and operated at very low cost.

Product Specifications:

Model

Filtration
area

Filter cake
volume

Treatment
capacity

Work

Pressure

Work

temperature

Machine
volume

Machine
weight

NYB-30

30

600

6-8 T/H

0.1-0.4 Mpa

≤150℃

2300 L

2500 kg

Juneng Group

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
