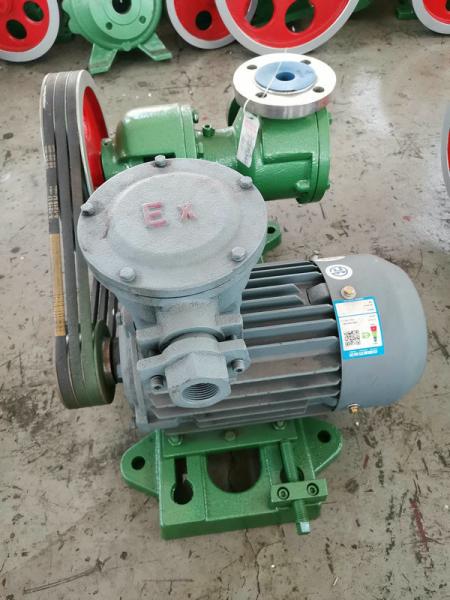

Electric Waste Oil Transfer Pumps / Small Centrifugal Pump Ductile Iron Alloy
Waste Oil Transfer Pumps description:
1. All spare parts interchangeable with most of the international Brand pump which helps customer
to source spare parts easily
2. Thick, Strong Concentric casing provides extended life over conventional volute designs. The
Concentric design minimizes turbulence and abrasive wear.
3. Pump casing made from hard ductile iron alloy, increased abrasion resistant capability compared
to competitors pump.
4. Wide open-vane impeller creates lower axial thrust for improved bearing life.
5. Pump impeller made from hard ductile iron alloy, extended life over competitors design.
6. Antiloosening impeller lock bolt to eliminate pump damage in case of improper motor hook-up.
7. High quality no-adjustment mechanical seal to provide zero leakage and longer operation life.
8. Replaceable shaft sleeve prevents shaft wear.
9. All bearings from top brand for reliable operation.
10.The skid for supporting pump and motor is made from casting instead of welding to provide
reliable operation and less vibration in a result to extend the pump and motor life.
QC/Technical Support
1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.
2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.
Waste Oil Transfer Pumps advantage:
1, The structure of the pump conforms to international standard. The impellers are tape open structure. It’s suitable for the liquid with high solids concentration and various suspension.
2, It’s horizontal split type and back pullout construction. It needn’t to dismount pipes and motor when maintenance.
3, Shaft seal introduce mechanical seal and power seal. It’s safety and reliable.
4, Wear parts of the cover of impeller can interchange. Repairing work is simple which reduces costs.
5, Rotors of the pump can compensate in axial, which can increase its service life.
Waste Oil Transfer Pumps Specifications:
Model | Flow Q m3/h | Lift H m | Speed r/min | Power kW | NPSHr m |
IHK40-25-180 | 6.3 | 40 | 2900 | 4 | 2.3 |
IHK50-32-200 | 12.5 | 50 | 2900 | 7.5 | 2.3 |
IHK65-40-250 | 25 | 80 | 2900 | 18.5 | 2.3 |
