Sulfur Dewaxing Horizontal Pressure Metal Leaf Filter 0.4 Mpa Carbon Steel
Sulfur Dewaxing Horizontal Pressure Metal Leaf Filter 0.4 Mpa Carbon Steel
Sulfur Dewaxing Horizontal Pressure Metal Leaf Filter 0.4 Mpa Carbon Steel
Sulfur Dewaxing Horizontal Pressure Metal Leaf Filter 0.4 Mpa Carbon Steel
Sulfur Dewaxing Horizontal Pressure Metal Leaf Filter 0.4 Mpa Carbon Steel
Sulfur Dewaxing Horizontal Pressure Metal Leaf Filter 0.4 Mpa Carbon Steel
Specifications
Brand Name :
Juneng
Model Number :
WYB
Certification :
ISO/CE
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
USD15000-200000/set
Payment Terms :
L/C, T/T
Supply Ability :
30 sets/month
Delivery Time :
60 work days
Packaging Details :
seaworthy packing
Product name :
horizontal plate pressure filter
Application :
Liquid Filtration,Oil
Type :
Horizontal
Working pressure :
0.4 Mpa
Filter area :
5-200 ㎡
Working temperature :
150℃
Spare parts :
supply the whole lifetime
Description

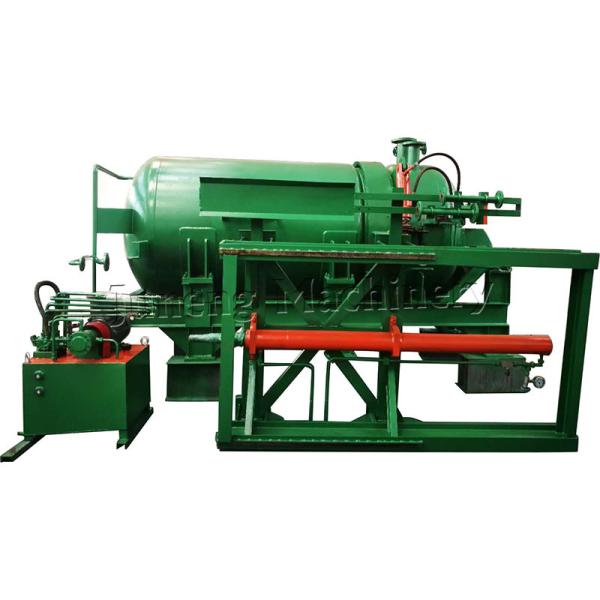

Horizontal sulfur dewaxing pressure metal leaf filter carbon steel

1.Product introduction

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.

This product is an efficient, energy saving solid-liquid separation equipment of enclosed operation type. It is widely employed in industries such as chemical engineering, petroleum, foodstuff and pharmaceutical, etc.

Once the stable filter cake is realized, the minute filter aid particles provide countless micro passages, which entrap the suspended impurity and let the clear liquid through.

2.Technical parameters

Area series(㎡) 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100,120,140,160,180,200
Shell diameter series(mm) 900,1200,1400,1500,1600,1700,1800,2000
Working pressure(Mpa) 0.4
Working temperature(℃) 150
Promimate treatment ca(T/h.㎡)
oil 0.2
drinks 0.8

3.Application

(1) Food industry : Syrups, edible oils, dewaxing , decolour, degrease


(2) Chemical industries: Sulphur, aluminum sulfate, Polyaluminum chloride, plastic, dyestuff intermediate, bleaching liquid, lubricant additives and intermediate and high pressure polyethylene, etc.

(3) Dry, semidry cake and clean filtrate recovery.

4.Company profile

Jiangsu Juneng Machinery North Branch in Yixing

Addressed in Zhoutie Town, Yixing Cicy, the norh branch of Jiangsu Juneng Machinery Co.,Ltd focus on all kinds of filters, such as vertical pressure leaf filters, horizontal pressure leaf filters, self-cleaning filters and bag filters etc.

Welcome to visit us if you would have any interest in our products.

5.Certifications

5.Exhibition
