Juneng aging oil treatment tricanter continuous decanter centrifuge

1.Product Description

The three-phase separation decanter centrifuge is a fully enclosed, fully automatic and continuous process for the treatment of aging oil. This product has been successfully used in Daqing Oilfield and Liaohe Oilfield.

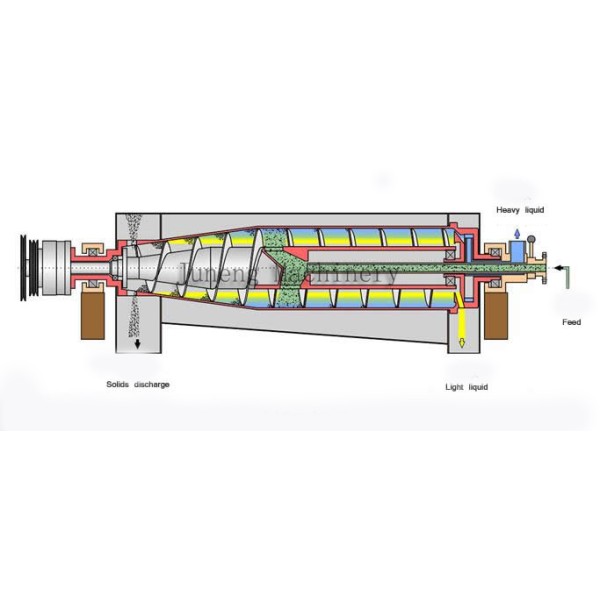

The aging oil from the storage tank has a high viscosity due to a long deposition time, so it must be heated and a demulsifier added to reduce the viscosity. The aged oil enters the three-phase decanter centrifuge through the pump, and the centrifuge rotates at a high speed. Under the action of a large centrifugal force, the solid (sludge) with high density settles on the drum wall. Two liquid phases with different densities form concentric cylinders, with the lighter liquid phase (oil) in the inner layer and the heavier liquid phase (water) in the outer layer.

The thickness of different liquid rings can be adjusted by the liquid adjusting plate. The sludge deposited on the drum wall is conveyed by the screw conveyor to the cone end of the drum body, and discharged from the discharge port. It can be transported to the designated place by the conveyor belt. A trolley can also be used to transport sludge. The separated oil is transported to the storage tank through the oil discharge pipeline, and the separated water is also discharged through the drainage pipeline.

2.Main technological parameters

1) Washing and dehydration of starch

2) Dehydration of soybean wheat proteins

3) Dehydration of fish meal and fish

4) Dehydration of brewers' grains

5) Purification of juice and dehydration of fruit fiber

6) Separation and purification of animal and vegetable oil

3.Advantages

4.Main features

1) All parts coming into contact with the product are made of stainless steel.
2) 3-phase AC motor for controlled torque starting via frequency converter
3) Approximately 80 to 90 % of the oil is recovered.
4) Low personnel costs due to continuous and automatic operation.
5) Highest g-force for higher solids output
6) Adjustable bowl speed via VFD
7) Automatic adjustment of differential speed via VFD
8) Two motor drive
9) Belts for both primary motor and secondary motor

5.Company profile

Juneng Machinery (China) Co., Ltd in Nanjing

Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.

Our team

Metallographic analysis

Dynamic balance detection

Certifications

Packing&Delivery
