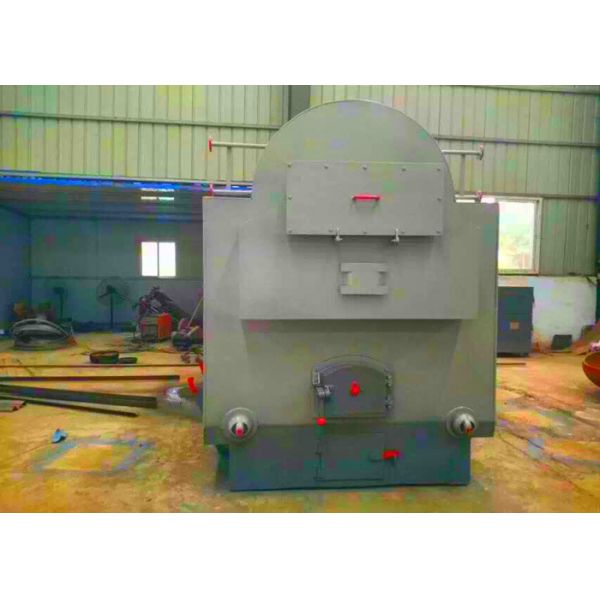

Safe Operation Coal Fired Water Heater , Industrial Coal Boiler For Troop
Safe Operation Coal Fired Water Heater , Industrial Coal Boiler For Troop
Specifications
Brand Name :
Yinyu
Model Number :
CDZH/CDHL
Certification :
ISO/BV
Place of Origin :
Henan China
MOQ :
1
Price :
$5,000.00-$10,000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Qty/per month
Delivery Time :
10-30 work days
Packaging Details :
Loose packge
Material :
GB/T 3087-2008
Dimension :
Depends on capacity
Weight :
Depends on capacity
Manufacture :
Yes
Thermal efficiency :
82%-85%
Type :
Nature circulation
Structure :
Fire tube
Style :
Vertical/Horizontal
Output :
Hot water
Warranty :
1 year,Lifetime maintain commitment
Description

High Efficiency Hot Water Output Coal Fired Hot Water Boiler For Troop

According to the characteristics of biomass fuel design special furnace arch, the front arch and the rear arch adapt, the unique secondary oxygen distribution device, improve the fuel ember rate, completely solve the problem of biomass fuel combustion black smoke;
The inertial separation of soot from the outlet of the furnace effectively reduces the dust concentration of the exhaust smoke and reduces the wear on the heated surface at the rear.
Furnace body using thickened high-quality insulation material insulation, heat loss is small;
Boiler quick installation factory, easy to install;
Special furnaces are arranged with hot surfaces, not coking, and have wide fuel adaptability.

Safe Operation Coal Fired Water Heater , Industrial Coal Boiler For Troop

Part of product parameters

CDZH0.7-95/70SCI

NO; Name Unit Number Description
1 Rated efficiency MW 0.7
2 Grate area ㎡ 1.85
3 Rated outlet/inlet water temperature ℃ 95/70
4 Heating efficiency % 81
6 Design fuels / Biomass,coal,rice husk...
10 Bulk size mm 3900×1840×3120

CDZH1.4-95/70SCI

NO; Name Unit Number Description
1 Rated efficiency MW 1.4
2 Grate area ㎡ 2.8
3 Rated outlet/inlet water temperature ℃ 95/70
4 Heating efficiency % 81
6 Design fuels / Biomass,coal,rice husk...
10 Bulk size mm 4500×2240×3320

CDZL0.7-95/70SCI

NO; Name Unit Number Description
1 Rated efficiency MW 0.7
2 Grate area ㎡ 1.85
3 Rated outlet/inlet water temperature ℃ 95/70
4 Heating efficiency % 81
6 Design fuels / Biomass,coal,rice husk...
10 Bulk size mm 3900×1840×3120

CDZL1.4-95/70SCI

NO; Name Unit Number Description
1 Rated efficiency MW 1.4
2 Grate area ㎡ 2.8
3 Rated outlet/inlet water temperature ℃ 95/70
4 Heating efficiency % 81
6 Design fuels / Biomass,coal,rice husk...
10 Bulk size mm 4500×2240×3320

Our services

Pre-sale service:
We help customer choose the best boiler model according to

different requirements of various industry. Before delivery we

will provide foundation drawing, layout drawing, boiler room

layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the

production process to ensure on time delivery with perfect

finished product.
After-sale service:

1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is

available.
3. Our engineers will held a training for boiler workers to

ensure the safe operation.
4. Free maintenance and repair for one year and lifelong

service.

Boiler application areas

Safe Operation Coal Fired Water Heater , Industrial Coal Boiler For Troop
