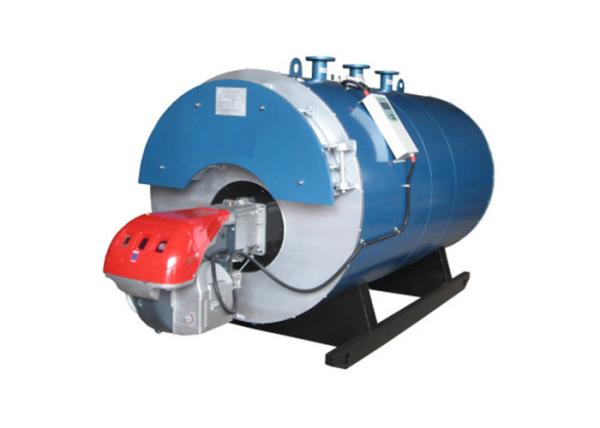

Automatic PLC Control Gas Hot Water Boiler , Gas Hot Water Furnace
Automatic PLC Control Gas Hot Water Boiler , Gas Hot Water Furnace
Specifications
Brand Name :
Yinyu
Model Number :
CWNS
Certification :
ISO/BV
Place of Origin :
Henan China
MOQ :
1
Price :
$5,000.00-$10,000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Qty/per month
Delivery Time :
10-30 work days
Packaging Details :
Loose package
Material :
GB/T 3087-2008
Dimension :
Depends on capacity
Weight :
Depends on capacity
Manufacture :
Yes
Thermal efficiency :
92%-95%
Type :
Nature circulation
Structure :
Fire tube
Style :
Vertical/Horizontal
Output :
Hot water
Warranty :
1 year,Lifetime maintain commitment
Description

1t Environment Protection Fully Automatic Oil Fired Gas Fired Hot Water Boiler

Gas hot water boiler is a kind of hot water boiler, gas hot water boiler to gas (such as natural gas, liquefied petroleum gas, urban gas, biogas, etc.) as fuel, through the burner to water heating, to achieve heating and provide life, bath hot water, boiler intelligence is high, heating fast, low noise, no dust, is a very economical hot boiler varieties.
Gas hot water boiler has environmental protection, energy saving, safety, automatic operation of the remarkable characteristics, very convenient to use, in addition, because of the operation of the economy, government policies to encourage, gas hot water boilers are more and more known to everyone's favor.
Gas hot water boiler configuration microcomputer controller, importburner, the use of hot water circulation pump automatic circulation boiler and heating pipe in the hot water to achieve heating purposes, or heating insulation water tank hot water to achieve bath requirements, gas hot water pot furnace widely used in government agencies, enterprises, factories, hospitals, schools, hotels, hotels and other enterprises and institutions.

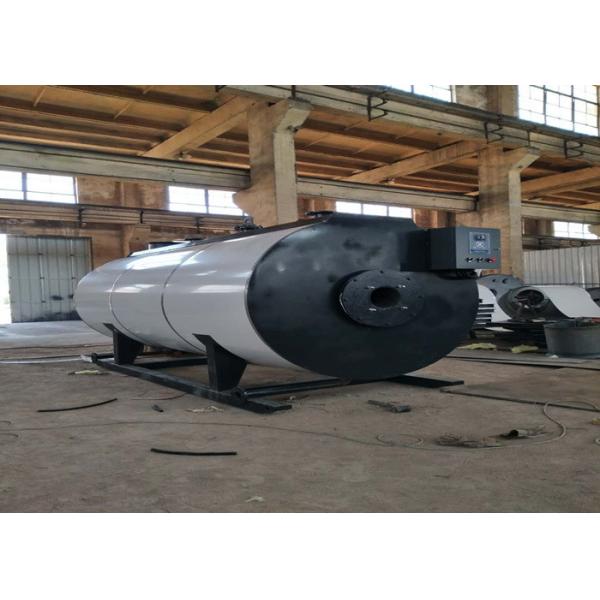

Automatic PLC Control Gas Hot Water Boiler , Gas Hot Water Furnace

Part of product paremeters

CWNS0.7-95/70

NO; Name Unit Number Description
1 Rated efficiency MW 0.7
2 Water volume M³ 1.4
3 Rated outlet/inlet water temperature ℃ 95/70
4 Heating efficiency % 99
5 Output/inlet diameter mm DN100
6 Design fuels / Oil/Gas
7 Blow down valve diameter mm DN100
8 Heating area(room) ㎡ 6000
9 Hot water output M³/h 18
10 Bulk size mm 2400×1200×1800

Our services

Pre-sale service:
We help customer choose the best boiler model according to

different requirements of various industry. Before delivery we

will provide foundation drawing, layout drawing, boiler room

layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the

production process to ensure on time delivery with perfect

finished product.
After-sale service:

1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is

available.
3. Our engineers will held a training for boiler workers to

ensure the safe operation.
4. Free maintenance and repair for one year and lifelong

service.

Boiler application areas

Automatic PLC Control Gas Hot Water Boiler , Gas Hot Water Furnace
