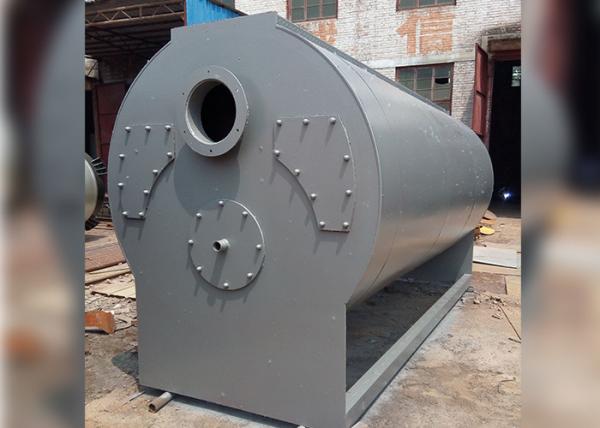

2400000 Kcal Electric Thermal Oil Boiler , Electric Thermic Fluid Heater
2400000 Kcal Electric Thermal Oil Boiler , Electric Thermic Fluid Heater
Specifications
Brand Name :
Yinyu
Model Number :
DRYL
Certification :
ISO/BV
Place of Origin :
Henan China
MOQ :
1
Price :
$5,000.00-$10,000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Qty/per month
Delivery Time :
7-30 work days
Packaging Details :
Loose packge
Material :
GB/T 3087-2008
Usage :
Industries
Style :
Vertical/Horizontal
Structure :
Electric heating
Type :
Nature circulation
Pressure :
Low pressure
Output :
Hot transfer fluid
Warranty :
1 year,Lifetime maintain commitment
Color :
Customized
Thermal efficiency :
95%-98%
Description

2,400,000 Kcal High Efficiency Electric Heating Thermal Oil Boiler​

Conductive thermal oil furnace is the electric heater directly inserted into the organic carrier (thermal oil) direct heating, and through the high temperature oil pump liquid phase circulation to the heated heating oil to the heating equipment, and then by the heating equipment outlet back to the electric heating furnace heating, forming a complete cycle heating system. The electric heating thermal conductive oil furnace uses several explicit temperature control instrument control, and has the function of super temperature alarm, low oil level alarm and super-pressure alarm.

2400000 Kcal Electric Thermal Oil Boiler , Electric Thermic Fluid Heater

Parameters

DRYL-4200Y(Q)

NO; Name Unit Number Description
1 Rated thermal power KW 4200
2 Rated working power Mpa 1.0
3 Rated inlet/outlet ℃ ℃ 310/290
4 Design efficiency ％

92.45(Oil)

92.13(Gas)
5 Boiler heat efficiency ％ More than 98% Be added economizer
6 Design fuels / Light oil,Gas
7 Fuels LHV MJ/kg 42.917(Oil)
MJ/Nm3 35.438(Gas)
8 Consumption of fuels kg/h 70.77(Oil)
Nm³/h 86.53(Gas) Be added economizer
9 Radiation heating area m² 7.199
Convection heating area m² 28.71
GGH heating area m² 10.965
10 Fume temperature ℃ 136.68(Oil)
℃ 137.02 (Gas)
11 Fume temperature ℃ 60-80 Be added economizer
12 Excess air coefficient / 1.15
13 Volume m3 0.46
14 Bulk weight kg 4250
15 Bulk size mm 6000×3000×2800
16 Chimney mm Φ325×10000
17 Combustion model / Micro positive pressure Chamber combustion
18 Boiler structure feature Horizontal-type chamber combustion
19 Control way Full automation/Manual
20 Ignition way High-tension/Electrode
Our services

Pre-sale service:
We help customer choose the best boiler model according to

different requirements of various industry. Before delivery we

will provide foundation drawing, layout drawing, boiler room

layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the

production process to ensure on time delivery with perfect

finished product.
After-sale service:

1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is

available.
3. Our engineers will held a training for boiler workers to

ensure the safe operation.
4. Free maintenance and repair for one year and lifelong

service.

Boiler application areas
2400000 Kcal Electric Thermal Oil Boiler , Electric Thermic Fluid Heater
