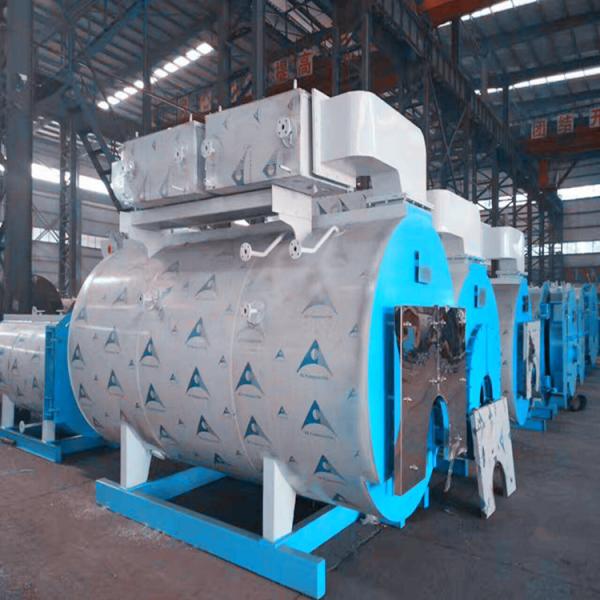

Widely Used Low Pressure Operation easily Gas Fired Oil Fired Steam Boiler
Boilers are widely used, industrial and civil, the following enterprises will use steam boilers: steam boilers through heat exchangers, the heat of steam exchange to water, water heating, and then heating, heating, bathing, production and other uses.
Food industry: food processing, medical industry and filling bottles and cans, etc. used as disinfection, food industry can be used as steamed meat, rice. Wine also uses steam.
In the petrochemical industry, steam can heat oil and increase liquidity.
Steam is also used in the petrochemical production process.
Production enterprises, the use of steam is more extensive, such as insulation foam board, production with steam heating raw material foaming production. The wood used to make furniture should be dried by steam in order to make furniture. The aeganding bricks for construction also need to be dried with steam, and power generation can also be generated.
Washing ironing industry: dry cleaner, dryer, washing machine, dewatering machine, ironing machine, ironing and other equipment supporting the use of
Packaging machinery industry: labeling machine, set of standard machine supporting the use of
Biochemical industry: fermentation tanks, reactors, laminated pots, mixers, emulsifiers and other equipment supporting the use of
Food machinery industry: tofu machine, steaming box, sterilizing tank, packaging machine, paint equipment, sealing machine and other equipment supporting the use of
Other industries: (oil fields, automobiles) steam cleaning industry, (hotels, dormitories, schools) steam or hot water supply, (bridges, railways) concrete maintenance.
Etc
Product parameter:
WNS2-1.25-YQ
NO; | Name | Unit | Number | Description |
1 | Rated evaporation | t/h | 2 | |
2 | Rated working power | Mpa | 1.25 | |
3 | Rated outlet ℃ | ℃ | 193 | |
4 | Design efficiency | % | 92.6(Oil) | |
5 | Boiler heat efficiency | % | More than 98% | Be added economizer |
6 | Design fuels | / | Light oil,Gas | |
7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
MJ/Nm3 | 35.438(Gas) | |||
8 | Consumption of fuels | kg/h | 137.9(Oil) | |
Nm³/h | 167.325(Gas) | Be added economizer | ||
9 | Radiation heating area | m² | 8.527 | |
Convection heating area | m² | 41.838 | ||
GGH heating area | m² | 23.195 | ||
10 | Fume temperature | ℃ | 137.863(Oil) | |
℃ | 134.28 (Gas) | |||
11 | Fume temperature | ℃ | 60-80 | Be added economizer |
12 | Excess air coefficient | / | 1.15 | |
13 | Volume | m3 | 5 | |
14 | Bulk weight | kg | 9700 | |
15 | Bulk size | mm | 4531×2150×2544 | |
16 | Chimney | mm | Φ500×10000 | |
17 | Total power consumption | KW | Oil:13,Gas:11 | |
18 | Combustion model | / | Micro positive pressure | Chamber combustion |
19 | Boiler structure feature(Three-pass structure) | Horizontal-type chamber combustion | ||
20 | Control way | Full automation/Manual | ||
21 | Ignition way | High-tension/Electrode |
Our service:
In-sale service:
We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
