Specifications
Brand Name :
Yinyu
Model Number :
DZS
Certification :
ISO,BV
Place of Origin :
Henan China
MOQ :
1
Price :
$5,000.00-$10,000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Qty/per month
Delivery Time :
7-45 work days
Packaging Details :
Loose package
Name :
Indoor Wood Fired Boiler
Manufacture :
Yes
Thermal efficiency :
82%-85%
Type :
Biomass
Structure :
Fire/water tube
Style :
Horizontal
Output :
Steam/hot water
Warranty :
12 months
Description

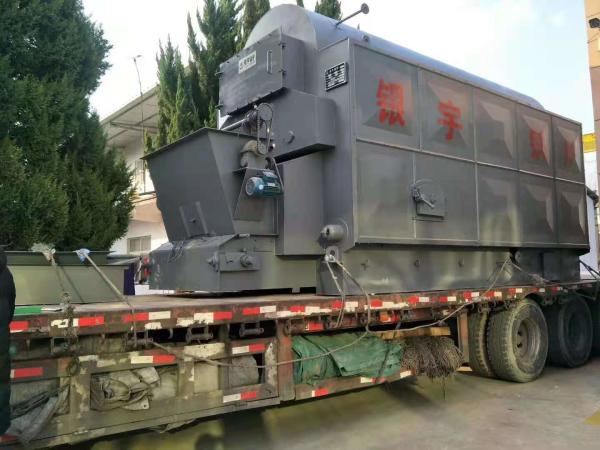

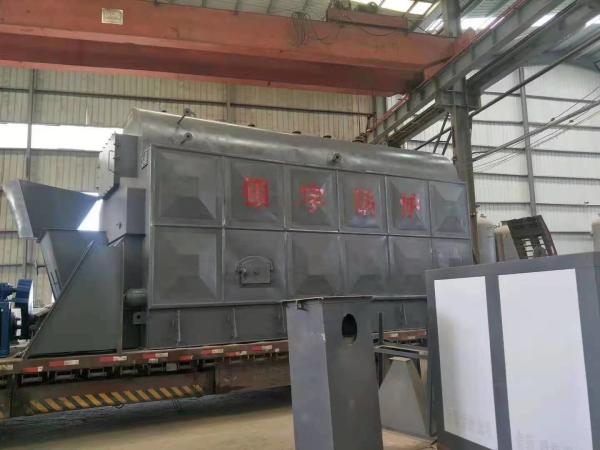

Biomass 4t/H Indoor Wood Fired Boiler Furnace Package Type

Introduction

The DZS series quickly installed coal/biomass fired steam boiler is the most advanced water-fire tube boiler in worldwide market and foreign market,this series boiler can be used in textile,food and corrugated box factory with high efficiency, small in size and long working life.

The coal/biomass fired steam boiler after improvement takes use of structure of wing type smoke duct,one-way screwed smoke tube,arched tube plate,smoke and gas separate room and several other advanced technology,which has increased the water circulation speed and safety factor.This series boiler is well designed,compactly made up, quickly installed,mono layer,so that the civil engineering and investment could be saved.With these improvement, the boiler's working life extend much to be the national energy saving product.

Product parameters

DZS4-1.25SCI

NO; Name Unit Number Description
1 Rated output t/h 4
2 Rated working power Mpa 1.25
3 Rated steam pressure 194
4 Heating efficiency % 80
5 Grate area 5.18
6 Design fuels / Biomass,coal,rice husk...
7 Fume temperature 169
8 Bulk size mm 6470×2820×3668

DZS6-1.25SCI

NO; Name Unit Number Description
1 Rated output t/h 6
2 Rated working power Mpa 1.25
3 Rated steam pressure 194
4 Heating efficiency % 80
5 Grate area 7.55
6 Design fuels / Biomass,coal,rice husk...
7 Fume temperature 166.3
8 Bulk size mm 8244×2951×3550

Etc

Boiler application areas:food &feed processing industry,hotel,school&government,chemial&pharmaceutical industry,commercial plaze,troops&hospital,bath center&swimming pool,paper industry,community&villa etc
