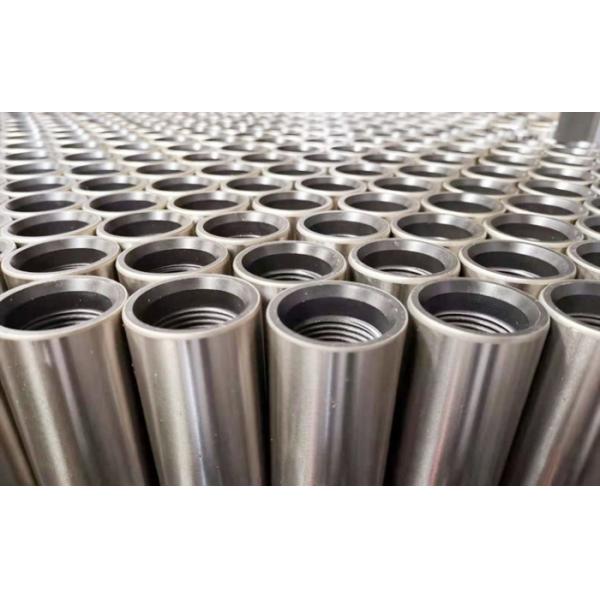

API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
API 11B Class T And Class SM Sucker Rod Coupling 3/4 7/8 1
Specifications
Model Number :
5/8",3/4",7/8",1",1 1/8"
Certification :
API 11B
Place of Origin :
China
MOQ :
100 pc
Price :
USD2-20/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 pieces per month
Delivery Time :
25-30 work days
Packaging Details :
Export Wooden Case
Product Name :
API 11B Class T and Class SM Sucker Rod Coupling 3/4" 7/8" 1"
Keywords :
Sucker Rod Couplings
Usage :
Oil Production
Size :
5/8",3/4",7/8",1",1 1/8"
Grade :
C,K,D,KD,HL,HY
Class Type :
Class T, SM
Description

API 11B Class T and Class SM Sucker Rod Coupling 3/4" 7/8" 1"

Class T and Class SM coupling for sucker rods are manufactured as per API Specification 11B. For the thread cutting, we are using cold form rolled by displacing rather than by removing of material for making the coupling thread. The thread rolling cutting results in a compressive stress at the root of the thread, giving maximum strength to the traditional weak point of cut-thread couplings.
Class T coupling is using AISI 5140 to manufacture.The coupling is coated using phosphate chemical treatment or black oxide on customer's request.For Class SM coupling, the spray metal is a specification hardening process and is applied on the base metal.
The couplings are available in full size, slim hole and over size.Also, combination couplings are available for different diameters (sub-coupling) for both Class T and Class SM couplings.
We recommend changing sucker rod couplings after three make-ups, provided the connection threads have been inspected and deemed acceptable for reuse.
Chemical Properties, %: Class T Coupling
Steel
AISI 5140
C
0.37~0.44
Si
0.17~0.37
Mn
0.50~0.80
P
≤0.040
S
≤0.040
Spray Metal Coating Chemical Properties, %: Class SM Coupling
Carbon
0.50~1.00
Silicon
3.50~5.50
Phosphorus
0.00~0.02
Sulfur
0.00~0.02
Chromium
12.00~18.00
Boron
2.50~4.50
Iron
3.00~5.50
Cobalt
0.00~0.10
Titanium
0.00~0.05
Aluminum
0.00~0.05
Zirconium
0.00~0.05
Nickel
Balance
OD
Coupling OD
Length
Wrench length
Wrench width
mm
in
(inch- mm)
(inch- mm)
mm
mm
16
5/8
38.1(1.500)
101.6(4.000)
31.8
34.9
19
3/4
41.3(1.625)
101.6(4.000)
31.8
38.1
22
7/8
46.0(1.812)
101.6(4.000)
31.8
41.3
25
1
55.6(2.187)
101.6(4.000)
31.8
47.6
29
1 1/8
60.3(2.375)
114.3(4.500)
41.3
53.9

API 11B Class T And Class SM Sucker Rod Coupling 3/4
