2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
2000psi -15000psi 2 1/16 ~4 1/16 API 16C Kill And Choke Manifold For Oil Well Control
Specifications
Model Number :
2 1/16"- 4 1/16"
Certification :
API 16C
Place of Origin :
China
MOQ :
1 set
Price :
USD2000-50000/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
15-30 work days
Packaging Details :
Export Wooden Case
Product Name :
2000psi -15000psi 2 1/16 "~4 1/16" API 16C Kill And Choke Manifold For Oil Well Control
Keywords :
Kill And Choke Manifold
Application :
Oil Drilling
Size :
2 1/16"- 4 1/16"
Working Pressure :
2000psi ~ 15000psi
Working Temperature :
-46℃—121℃
Material Grade :
EE、FF、HH
Specification Grade :
PSL 1- PSL4
Working Medium :
Oil, gas, mud
Color :
Red or as customer requirement
Description

2000psi -15000psi 2 1/16 "~4 1/16" API 16C Kill And Choke Manifold For Oil Well Control

2000psi -15000psi 2 1/16

2000psi -15000psi 2 1/16 "~4 1/16" API 16C Kill And Choke Manifold For Oil Well Control

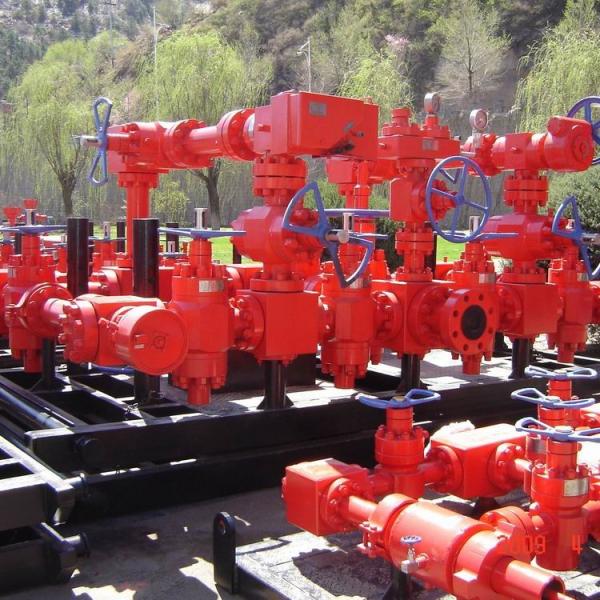

Choke Manifold

The Choke Manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components. It is a necessary device of control the well kick and executes the pressure control on oil & gas well in the process of drilling. When BOP closed, it can control the final pressure from casing by adjusting the opening & closing of the choke valve, which avoid pollution of oil-layer and improve the speed of drilling and control blowout effectively.

2000psi -15000psi 2 1/16

Features

· Medium: oil, gas, ,mud.

· PSL: PSL1 to PSL4.

· M.C: EE, FF, HH.

· Working pressure (PSI): 2000, 3000, 5000, 10000, 15000.

· Master bore: 2-1/16'', 2-9/16'', 3-1/8'' (3-1/16''), 4-1/16''.

· Conforms to API 16C.

Kill Manifold

The Kill Manifold consists of choke valves, gate valves, pressure gauges and line pipes. One end of the kill manifold is connected to the drilling spool and the other to the pump.

2000psi -15000psi 2 1/16

Features

· Medium: oil, gas, ,mud.

· PSL: PSL1 to PSL4.

· M.C: EE, FF, HH.

· Working pressure (PSI): 2000, 3000, 5000, 10000, 15000.

· Master bore: 2-1/16'', 2-9/16'', 3-1/8'' (3-1/16''), 4-1/16''.

· Conforms to API 16C.

Specifications

Design according to customer demand.

Name Choke manifold Kill manifold
Model JG/S2-35 JG/SY-35 JG/SY2-70 JG/S2Y2-105 YG-35 Y-70 YG-105
Main diameter and sideward diameter 31/8× 21/16(80× 52) 41/16× 29/16(103× 65) 41/16× 31/16(103× 78)
Working pressure Psi (MPa) 3000(21)
5000(35)		 3000(21)
10000(70)		 5000 (35) 10000 (70) 15000 (105)
Working temperature º C (° F) LU -46º C ~ +121º C (-50° F ~ 250° F)
Working mediums Drilling fluid, mud and petroleum (with sulfuretted hydrogen)
Control type Two-winged manual choke valve Two-winged hydraulic manual choke valve Three-winged hydraulic manual choke valve Four-winged double-hydraulic manual choke valve Two-winged main relief valve

Products Show:

2000psi -15000psi 2 1/16

2000psi -15000psi 2 1/16

2000psi -15000psi 2 1/16

2000psi -15000psi 2 1/16

Packaging & Shipping:

2000psi -15000psi 2 1/16

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com
