4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
4'' 6 8 Wellhead Assembly , Carbon Steel Air O Grip Union
Specifications
Model Number :
4'' 6", 8", 10", 14", 16", etc
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
USD10-100/piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 pieces per month
Delivery Time :
7-20 work days
Packaging Details :
Export Wooden Case
Product Name :
Air O Grip Union/Pneumatic Tyre Union Low Pressure Carbon Steel Air Grip Union Fittings
Keywords :
Air O Grip Union/Pneumatic Tyre Union
Application :
Oilfield pipeline connection
Size :
4'' 6", 8", 10", 14", 16", etc
Maximum sealing pressure :
0.4MPa
Medium temperature :
-45°C ~50°C
Material :
Carbon Steel + NBR
Product Structure :
Steel shell + pneumatic tire
Recovery time :
1-3 seconds
Feature :
Quick install and seal
Description

Air O Grip Union/Pneumatic Tyre Union Low Pressure Carbon Steel Air Grip Union Fittings

Product Description

Air Grip union is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system. 150 psi maximum line pressure, 4, 6, 8, 10, 12, 14 and 16 inch sizes.


Recommended service:
Mud suction and return lines and low-pressure fluid lines

Features:
1. Shot of rig air inflates tube to seal around pipe
2. Fast, easy make-up without close alignment
3. Allows pipe expansion or misalignment without breaking the seal
4. No nuts, bolts, or wrenches required

In the Air Grip unions(Air-O-unions) we have patents:

1. Medium available: mud, oil, water

2. Medium temperature: -45°C ~50°C

3. Reconversion time when deflated: 1-3 seconds.

4. Medium pressure: 0.1-0.5Mpa

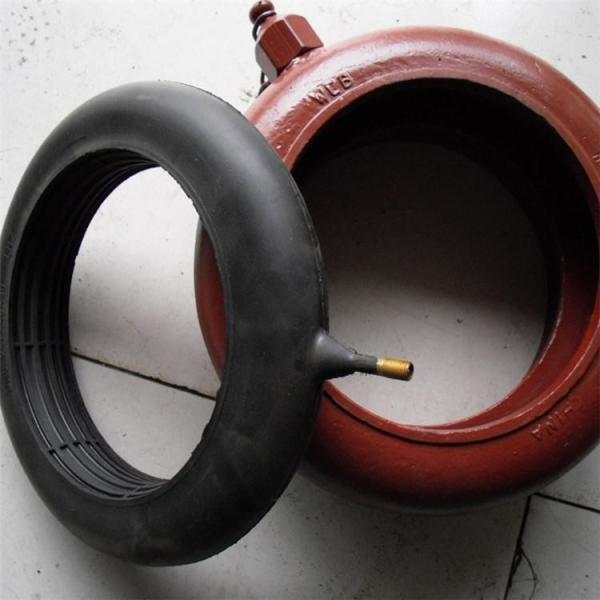

5. Structure: steel shell and air bag

6. Material: shell for 20# casting steel, tyre for rubber.

Technical Parameter

Normal Pipe

4″

6″

8″

10″

12″

14″

16″

Size(mm)

-100

-150

-200

-250

-300

-350

-400

Tube I.D.(mm)A

114

171

222

278

329

384

413

Body I.D.(mm)B

117

176

227

283

333

388

416

Butt-weld I.D.(mm)C

129

203

257

308

340

409

441

Butt-weld I.D.(mm)D

141

219

273

324

356

425

547

Body O.D.(mm)E

168

260

311

368

419

476

503

Height(mm)F

80

102

102

108

108

108

108

Wt.(kgs)-Air bag

0.3

0.65

0.8

1

1.2

1.5

1.7

Wt.(kgs)-Assembly

5.5

8.2

9.2

12

13.5

15

20

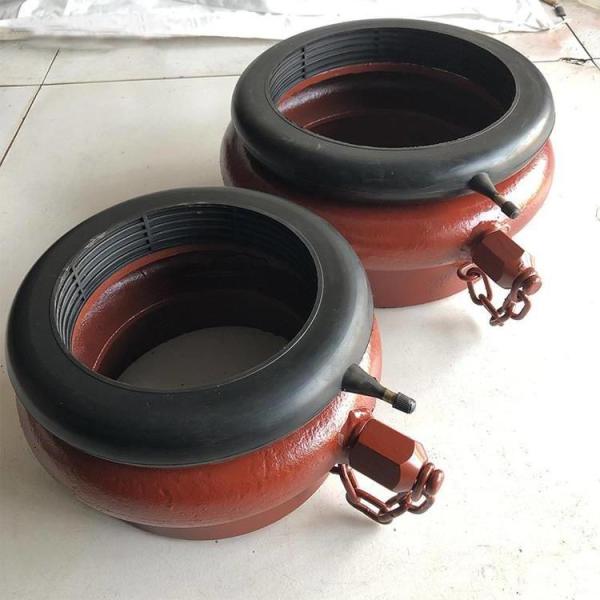

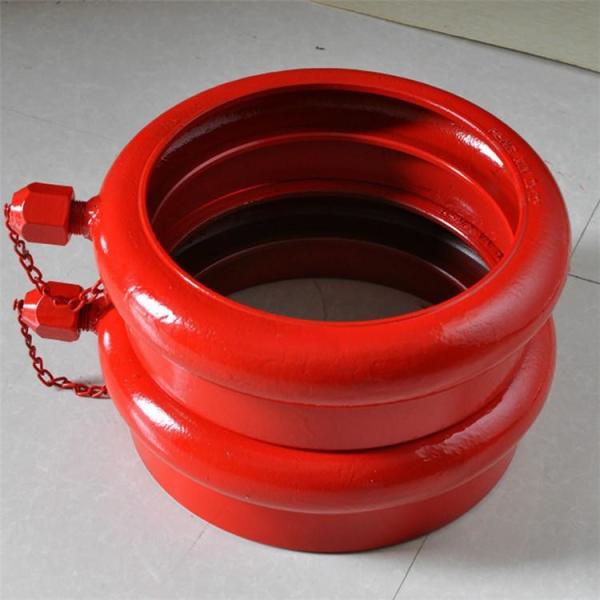

Products Show

Air O Grip Union/Pneumatic Tyre Union Low Pressure Carbon Steel Air Grip Union Fittings

Packaging & Shipping

Packing: Wooden case, or customized packing.

Delivery time: Stock or depending on quantity

Delivery: By express, truck, train, air, sea

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com Website: www.oilmanchina.com
