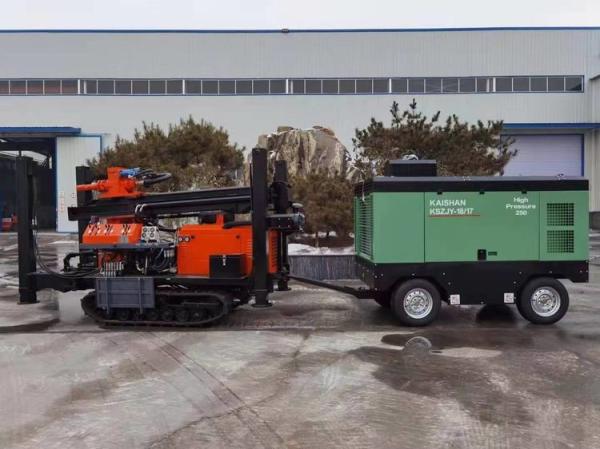

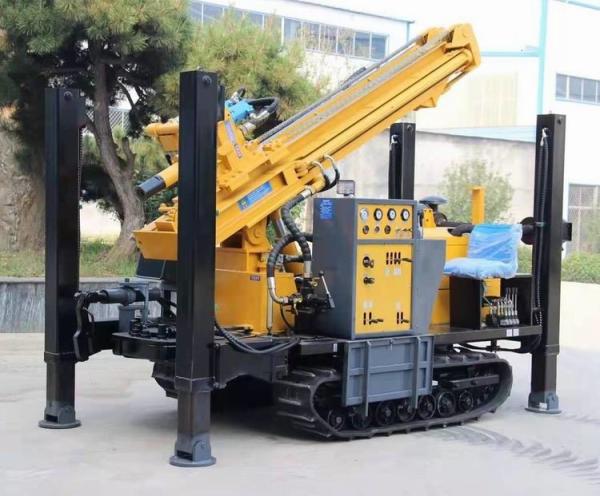

Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Specifications
Model Number :
Crawler Type Drilling Rig
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD10000-60000/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
15-45 days
Packaging Details :
Standard export packing
Drilling Depth :
180 - 600m
Bore Diameter :
130 - 350mm
Machine weight :
3.8 - 12 ton
Drill Method :
DTH and rotary drilling
Usage :
Construction works, Water well
Condition :
New
Warranty :
One year
Product Name :
Borehole Crawler Pneumatic DTH Deep Water Well Drilling Rig Machine With Air Compressor
Keyword :
Crawler water well drilling rig machine
Air consumption(m³/min) :
15 - 35
Description

Borehole Crawler Pneumatic DTH Deep Water Well Drilling Rig Machine With Air Compressor


Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton

Borehole Crawler Pneumatic DTH Deep Water Well Drilling Rig Machine With Air Compressor

FY Series of the Crawler Drilling Rig Machine

The FY series water well drilling rig is a light, efficient and multifunctional drilling and drilling equipment powered by diesel engines. It is mainly suitable for drilling wells, agricultural irrigation wells and other well holes. It is especially suitable for water intake engineering in mountain area and rock stratum. This series of drilling well rigs adopt new hydraulic technology, which is equipped with high torque hydraulic motor rotary and large cylinder diameter hydraulic cylinder advancement. All drilling rigs need to be used with air compressor.

If you would like more information on prices and more, please request a quote for free, details such as model and quantity. In fact, in addition to crawler drills, we have built many other types of drills, such as water well drilling rigs, DTH drilling rigs, core drilling rigs, rock drills and so on. If you need more information, please do not hesitate to contact us.


Crawler Water Well Drilling Rig Machine

Model FY180 FY200 FY260 FY300 FY400 FY600
Total Weight(kg) 3800 4600 6200 8800 8700 12000
Dimension(mm)

3800*1550*

2350

3800*1600*

2450

3900*1950*

2550

4350*1850*

2750

5050*2100*

2800

5400*2100*

2850
Hole diameter (mm) 130-254 140-325 140-325 180-325 140-325 140-350
Hole depth (m) 180 200 260 300 400 600
Disposable drilling depth (mm) 3000 3000 3000 6000 6000 6600
Walking speed (km / h) 2.5 2.5 2.5 2 2.5 2.5
Climbing ability (Max.) 30 30 30 30 30 30
Distance off ground (mm) 250 250 250 250 250 250
Working pressure (Mpa) 1.7-2.5 1.7-3.0 1.7-3.0 1.7-3.3 1.7-3.0 1.7-3.5
Air consumption (m3 / min) 15-27 17-35 17-35 23 17-35 17-35
Matching power (kw) 42-65 65 85 85 95 115
Rotational speed (rpm) 48-70 50-70 40-70 55-115 45-75 45-110
Rotational torque (N.M) 4200-5600 5000-6500 7000-9000 7200-8500 8500-10000 8500-10500


Product Details:
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton

Various Drilling Tools


Drilling rigs can be supplied in custom-built models in various configurations as indicated, mounting features to suit all special requirements and technical specifications can be offered accordingly.
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton
Package & Shipment:
Borehole Pneumatic Portable Water Well Drilling Rig 3.8 - 12 ton

We have models from 100m to 600m depth, mounted on wheel trailer, crawler/track/skid and truck for your difference choice!

Contact information:

Dongying Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@cn.com Website: www.china.com
