Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards
Specifications
Model Number :
F1600,F1300,F1000,F800,F500
Certification :
API 7K
Place of Origin :
China
MOQ :
1 pc
Price :
USD50-600/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Delivery Time :
25-30 work days
Packaging Details :
Export wooden case
Product Name :
Continental Emsco Gardner Denver Ideco NOV BOMCO Triplex Mud Pump Spare Parts
Keywords :
Gardner Denver Mud Pump Spare Parts
Application :
Oil Drilling Mud Pump
Condition :
New
Warranty :
One Year
Pressure :
14~140MPa
Color :
Red, green or as customer request
Feature :
Long service life
Description

Continental Emsco Gardner Denver Ideco NOV BOMCO Triplex Mud Pump Spare Parts

Product Description of Mud Pump Spare Parts

specializes in supplying quality mud pumps and mud pump parts.

We export-orientated mud pump parts, including liners, pistons, piston inserts, valve inserts, oil seals, rod packing, fluid ends etc.. All of them meet or exceed DIN and API standards and have been exported to U.K., Germany, USA, Canada, Pakistan, Middle East, and so on.

We also supply mud pump parts according to drawings or samples supplied by our customers.

Fluid End Module & Spare Parts

.Fluid end module

.Threaded ring

.Lock cap

.Cylinder head

.Cylinder head plug

.Valve cover

.Valve guide

.Liner retainer

.Liner bushing .Liner clamp .Wear plate

Power End Parts

·Bull gear ·Pinion shaft ·Bearing

·Crankshaft ·Connecting & Extension rod

·Crosshead, Pin & Guide

Fluid End Expendables

·Liner ·Liner gasket ·Piston ·Piston rubber ·Valve & Seat

·Valve spring ·Valve insert ·Piston rod ·Piston rod clamp

Accessories & Tools

·Pulsation dampener ·Bladder

·Discharge block ·Pressure gauge

·Suction manifold ·Relief valve

·Discharge manifold

They are available for these types as follow:

Model
BOMCO F-500 F-800 F-1000 F-1300 F-1600 F-1600HL F-1600L F-2200HL
Hong Hua HHF-500 HHF-800 HHF-1300 HHF-1600 3NB-1600F 5NB-1600 5NB-2400
EMSCO F-500 F-800 F-1000 F-1300 F-1600 FD-1000 FC-2200 FB-1300
Gardner Denver PAH P7 P8/9 P10/11 PXL PX-11 PZL PY-FXD
National 7-P-50 8-P-80 9-P-100 10-P-130 12-P-160 14-P-200 14-P-220 N-1000/1300
Oilwell A-850-PT A-1100-PT A-1400-PT A-1700-PT
TSC WF-500 WF-800 WF-1000 WF-1300 WF-1600 WF-2000 WF-2200
IDECO T-500 T-800 T-1000 T-1300 T-1600

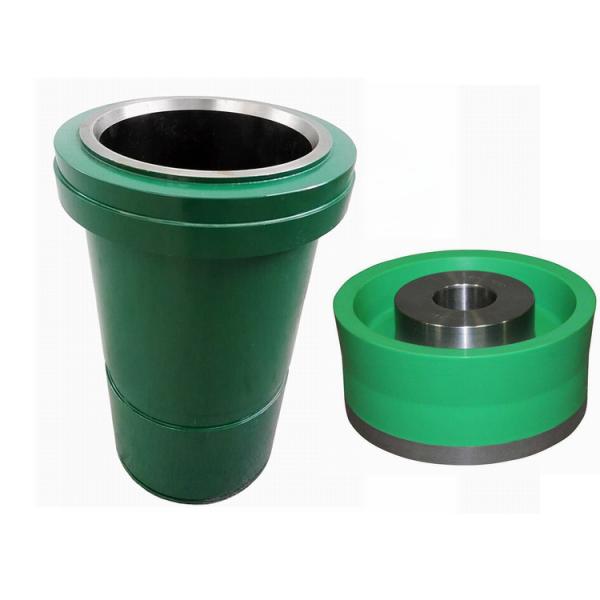

Products Show:

Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards

Packaging & Shipping:

Gardner Denver Mud Pump Spare Parts 14-140MPa DIN And API Standards

Company Information:

About us

Dongying Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com
