Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Fire Resistant High Pressure BOP Control Flexible Hose With NPT Thread
Specifications
Model Number :
1/4" - 2"
Certification :
API 16D
Place of Origin :
China
MOQ :
1 piece
Price :
USD100-2000/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pieces per month
Delivery Time :
15-30 work days
Packaging Details :
Export Wooden Case
Product Name :
Fire-resistant High Pressure BOP Control Flexible Hose with NPT Thread
Keywords :
BOP Control Hose
Usage :
Hydraulic control pipe line for BOP control equipments
Cover :
Fire resistant rubber cover, stainless steel armored
Size :
19mm - 38mm
Working Pressure :
5000PSI, 10000PSI, 15000PSI
Temperature range :
-40°F to +212°F (-40°C to +100°C)
Tube Material :
Modified Nitrile
Description

Fire-resistant High Pressure BOP Control Flexible Hose with NPT Thread

Product Description

API 16D BOP control hoses (BOP hydraulic control lines) used for blow-out prevention systems are manufactured with superior components to operate withstand tough crisis oilfield conditions. These hoses are designed to hold full working pressure and allow continued operation of the BOP control systems ever in the harshest of fires.

BOP control hoses feature in high pressure resistance, high temperature resistance and fire resistance. Specified standard API 16D, blowout preventer hoses are ideally suited for high pressure hydraulic applications for drilling well control equipments, and capable of containing the hose rated working pressure in a flame temperature of 1300°F (700°C) for a 5-minute period.

Certification/Standards:

API Spec 16D--ISO 14693

Recommended For:

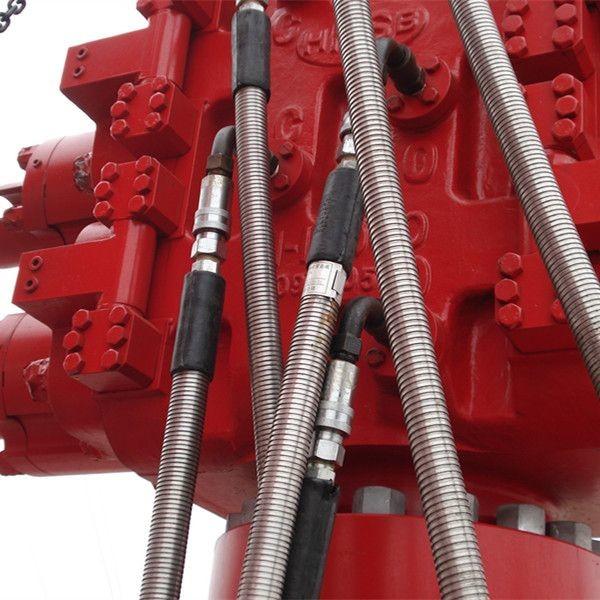

Blow-out preventer (BOP) systems requiring high pressure, high temperature and flame resistant control lines certified to API 16D.

Armored hose assemblies with flame resistant cover withstand minimum 1300°F (+700°C) flame temperature at working pressure for 5 minutes without failure.
Tube: Modified Nitrile. Black.

Reinforcement:

Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.

Cover:

Fire resistant, rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.

Couplings:

Crimped couplings with over-ferrule fire protection.

Temperature:

-40°F to +212°F (-40°C to +100°C) continuous service.

Options:

Accessories such as API 16D quick connector, self-sealing union and exterior armor to protect hoses against extreme environmental damage are available upon request.

Technical Parameter:

Hose ID Hose O.D. Working Pressure Min. Bend Radius Weight Max. Hose Length
(In.) (mm) (In.) (mm) (psi) (MPa) (In.) (mm) kg/m lb/ft ft m
1/4 6 0.77 20 5000 35 4 102 0.66 0.37 330 100
3/8 10 0.93 24 5000 35 5 127 0.77 0.52 330 100
1/2 13 1.05 27 5000 35 7 178 0.98 0.63 330 100
3/4 19 1.38 35 5000 35 9.5 241 1.64 1.05 200 60
1 25 1.67 42 5000 35 12 305 2.62 1.77 200 60
1 1/4 32 2.11 54 5000 35 16.5 419 3.94 2.67 200 60
1 1/2 38 2.41 61 5000 35 20 508 4.59 3 200 60
2 51 2.96 75 5000 35 25 635 8.53 5.73 200 60

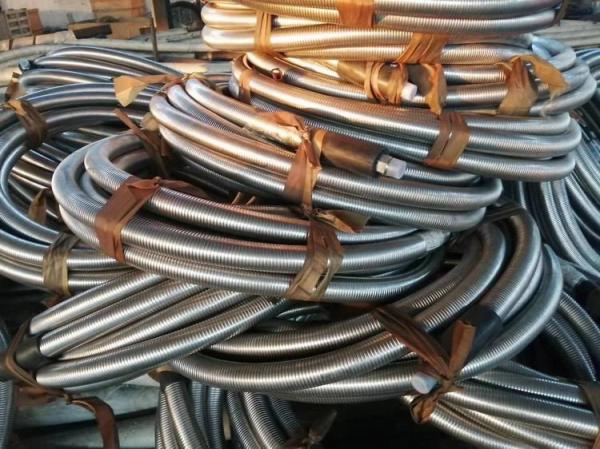

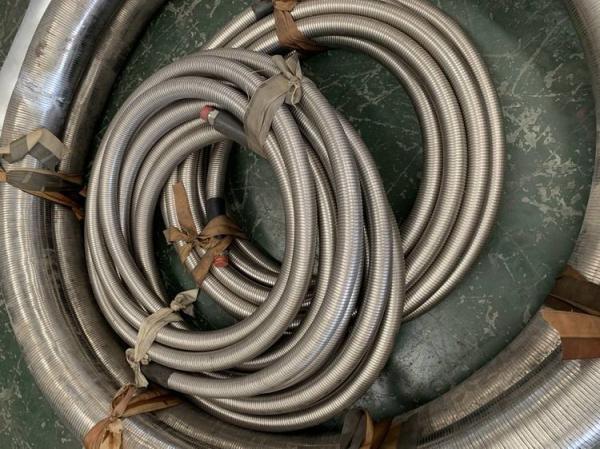

Products Show

Packaging & Shipping

After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.

Any enquiry please contact us by email: christal@oilmancn.com.

Visit our website: www.oilmanchina.com for more products information.

WhatsApp/WeChat:+86 13475294399
