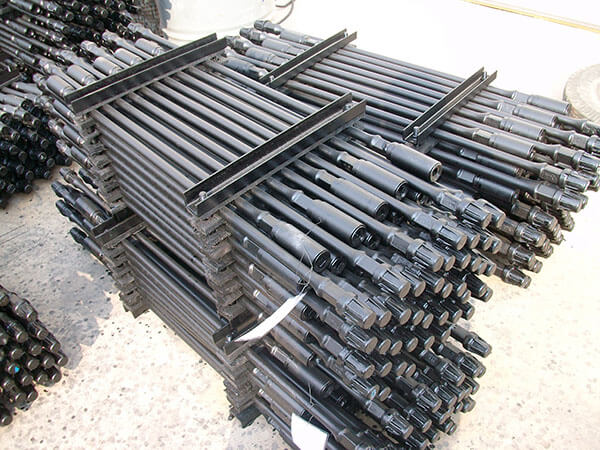

API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
API 11B Grade D Oilfield Sucker Rods 2ft 3ft 4ft 5ft 6ft Pony Rod
Specifications
Model Number :
5/8",3/4",7/8",1",1 1/8"
Certification :
API 11B
Place of Origin :
China
MOQ :
50 pcs
Price :
USD5-100/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000 pieces per month
Delivery Time :
25-30 work days
Packaging Details :
In Bundles
Product Name :
Oilfield API 11B 2ft 3ft 4ft 5ft 6ft Grade D Sucker Rods Pony Rod
Material :
Alloy Steel
Keywords :
Pony Rod
Usage :
Oil Production
Warranty :
One Year
Diameter :
38.1-55.6mm
Grade :
C,K,D,KD,HL,HY
Length :
25', 26' and 30' for sucker rod, 2', 4', 6', 8', 10' for pony rod
Description

Oilfield API 11B 2ft 3ft 4ft 5ft 6ft Grade D Sucker Rods Pony Rod

Sucker rod is the common equipment in the oil extraction. It is manufactured through many process including the testing, straightening and forging. The sucker rod is placed between the polished rod and oil well pump. To deliver power. Sucker rod is manufactured from high quality carbon steel and alloy steel, which is conform to the API Spec 11B standard. Sucker rod has various types including the common sucker rod, hollow sucker rod and FRP sucker rod. Commonly we use the sucker rod coupling to connect the sucker rod. The sucker rod also has various specs to fit different environments and applications.
One piece of sucker rod and one pieces of sucker rod with coupling with explanation on it.
Classification

The sucker rod has various types:
Common sucker rod
Grade C sucker rod.
Grade D sucker rod.
Grade K sucker rod.
Grade KD sucker rod.
High tensile sucker rod: grade H sucker rod
Grade HY sucker rod.
Grade HL sucker rod.
Grade KHL sucker rod.
Special sucker rod: hollow sucker rod
Continuous sucker rod.
Screw pump sucker rod
Taper thread sucker rod
Plug sucker rod.
FRP sucker rod: fiber reinforced plastic sucker rod
Flexible sucker rod
Carbon fiber composite sucker rod
Steel wire rope sucker rod.
Electric sucker rod

Specification
Material: high quality carbon steel or alloy steel.
Grade: C, D, K, H.
Rod diameter: 5/8", 3/4", 7/8", 1" and 1-1/4".
Length:
25', 26' and 30' for sucker rod.
2', 4', 6', 8', 10' for pony rod.

Rod Size (in)
Body OD (mm)
Shoulder OD (mm)
Thread nominal value (in)
Sucker rod length mm
Pony rod length mm(in)
5/8
15.88
31.8(1-1/4)
15/16
7518 9042
508(20)
3/4
19.05
38.1(1-1/2)
11/16
1118(44)
7/8
22.23
41.3(1-5/8)
13/16
1727(68)
1
25.4
50.8(2)
1-3/8
2337(92)
1-1/8
28.58
57.2(2-1/4)
1-9/16
2946(116)

● Mechanical Properties Of Steel Sucker Rod

Grade Minimum Yield Strength(0.2% Residual Deformation) Minimum Tensile Strength Maximum Tensile Strength

Elongation

200mm%

 Reduction Of Area Z% Surface Hardness HRC Core Hardness HB Fatigue Life
K 60000 414 90000 621 115000 793 ≥13 ≥50 / / /
C 60000 414 90000 621 115000 793 ≥13 ≥50 / / /
D 85000 586 115000 793 140000 965 ≥13 ≥50 / / /
KD 85000 590 115000 795 140000 965 ≥13 ≥50 / / /
HL 115000 795 140000 965 173339 1195 ≥13 ≥45 / / /
HY / / 140000 965 173339 1195 / / ≥42 ≥224 /
EHL / / 188500 1300 217500 1500 / / ≥50 ≥320 ≥2.5X106
Note: when the yield strength cannot be measured, it should be considered to be processed into standard sample installation drawing
a It is generally made of high quality carbon steel, which can reach the mechanical properties of the table.
b Molybdenum steel (but not limited to this type of steel) is generally used, and the mechanical properties of this table can be achieved through effective heat treatment.
