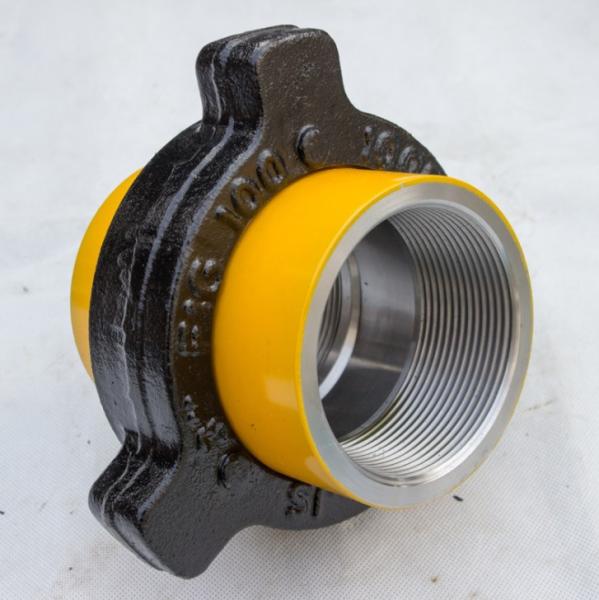

Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Specifications
Model Number :
FIG 1502 1002 602 400 402 206 100
Certification :
API
Place of Origin :
China
MOQ :
5 pc
Price :
USD20-200/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000 pieces per month
Delivery Time :
15-25 work days
Packaging Details :
Export Wooden Case
Product Name :
FMC Weco Fig 100 Fig 200 Hammer Union For Oil Drilling Rig
Keywords :
Fig100 Hammer Unions
Dimension :
1" - 4"
Material :
Carbon Steel, Alloy Steel, Stainless Steel
Country of Origin :
China
Working Pressure :
2000PSI~20000PSI
Technics :
Forged
Connection :
Threaded or welding
Description

FMC Weco Fig 100 Fig 200 Hammer Union For Oil Drilling Rig

Product Description

High pressure hammer union from Dongying Machinery Equipment Co.,ltd, importing international advanced technology, is forged with high strength alloy steel, strict head treatment process can ensure that the nipple have uniform metallurgical structure and pressing ability and the material meets ASTM and AISI standard and technology indexes conform to API Spec. 6A, the product adopts some end connections of pipeline thread, tubing thread, butt-weld and compress-seal.

FIG 100

Size Weight A B C+ TPI* Material
(Inches) (mm) (LBS) Nuts Sub
2 50 6.25 3.94 2.84 6.25 3 MOD Steel Forging A105
3 80 13.65 4.9 4.1 7.8 3 MOD
4 100 22 5.7 5.2 8.9 3 MOD
6 150 45.85 6.8 7.39 13.81 3 STD Steel Casting Steel Forging
A105
8 200 66.65 7.23 9.7 16.125 3 STD Steel Casting Steel Forging
A105
*TPI-Threads per inch.

FIG 200, 206
* socket weld and butt weld are also available

Size Weight A B C+ D** TPI* Material
(Inches) (mm) (LBS) Nuts Sub
1 25 1.75 2.8 1.6 3.8 ** 6 STD Steel Forging A105
2 50 4.9 3.5 2.9 5.8 ** 4 STD
3 80 13.25 4.5 4.1 7.8 ** 4 STD
4 100 18.35 5.0 5.1 8.9 ** 3 STD
6 150 46 6.61 7.41 12.8 ** 3 STD Steel
Casting		 Steel Forging
A105
8 200 68 7.24 9.65 13.75 ** 3 STD Steel
Casting		 Steel Forging
A105
*TPI-Threads per inch. **Weld Ends-Consult Factory.

Working
Pressure		 1" 2" 3" 4" 6" 8"
FIG 100 1000LB √ √ √ √ √
FIG 200 2000LB √ √ √ √ √ √
FIG 206 2000LB √ √ √ √ √ √
FIG 207 2000LB √ √ √ √
FIG 300 3000LB √ √ √ √
FIG 400 4000LB √ √ √ √
FIG 602 6000LB √ √ √
FIG 607 6000LB √
FIG 1502 15000LB √ √ √

Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union

Products Show

Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
