API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
Specifications
Model Number :
LM-T Type, DLM-T Type
Certification :
API 7-1
Place of Origin :
China
MOQ :
1 pc
Price :
USD150-1000/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 pcs per month
Delivery Time :
15-30 days
Packaging Details :
Export Wooden Case
Product Name :
API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back off Spear
Keywords :
Releasing Casing Spear
Application :
Fishing Tools for Oil Drilling
Material :
High-Grade Alloy Steel
Mandrel OD :
3 5/32''~8 1/4''
Fish ID :
1 1/2''~12 23/32''
Description

API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back off Spear

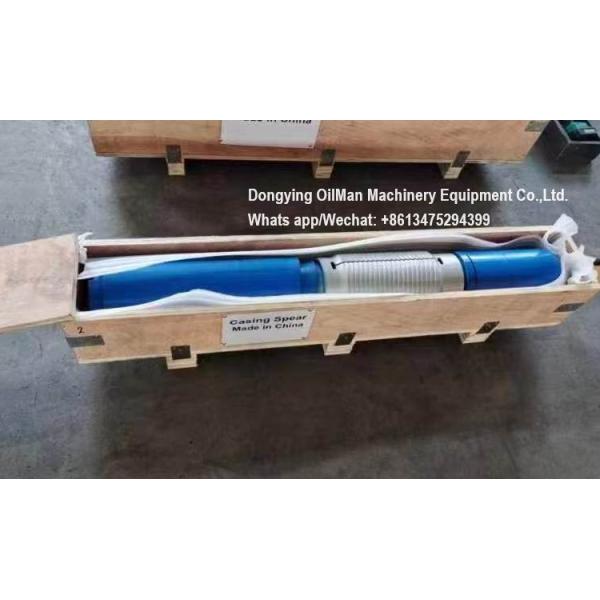

LM-T Releasing Spear is a fishing tool that can catch the drill pipe, tubing and casing from those tools' internal diameter. The releasing spear can be assembled with fishing spear packer, internal cutters, upper fishing jar and jar accelerator under different operation situation. If the fish cannot be pulled, the spear can be easily be released and disengaged.

The fishing tool is the most widely used tool for overhauling oil and water wells. There are many varieties and specifications of fishing tools. According to the types of falling objects in the well, they can be divided into five categories: spear tools, overshot tools, junk basket, hook fishing tools, and cutter tools.

As one of the full-fledged oil and gas equipment suppliers and the local China fishing tools manufactures, deenpu Group provides customers with various types of fishing tools.

Specifications-Releasing Spear LM-T
Model Nut QD. (mm) Catch Size (in) LD (mm) Code
MT48 35 1.9 8 LQ2-100
LM-T60 45 2 3/8 8 LQ2-110
LM-T73 54 2 7/8 10 L02-120
LM-T89 66 31/2 10 LQ2-130
LM-T 102 76 4 16 LQ2-140
LM-T114 88 4 1/2 16 L02-150
LM-T127 96 5 25 LQ2-160
LM-T 140 108 51/2 30 L02-170
LM-T 168 130 65/8 30 LQ2-180
LM-T178 145 7 50 LQ2-190
LM-T219 174 85/8 71 LQ2-210
LM-T245 174 95m 71 L02-220
LM-T273 210 10 3/4 71 L02-230
LM-T273-1 222 10 3/4 71 L02-260
LM-T340 210 13 3/8 71 LQ2-250
LM-T340-1 222 13 3/8 71 LQ2-240
Specifications-Releasing Spear LM/B
Model NutO.D. (mm) Catch size (in) LD<nvn) Code
LM-T48-B 35 1.9 8 L02-4810
LM-T60-B 47 2 3/8 10 L02-6010
LM-T73-B 58 2 7/8 10 L02-7310
LM-T89-B 71 3 1/2 12 L02-8910
LM-T102-B 82 4 16 L02-10210
LM-T114-B 92 4 1/2 19 L02-11410
LM-T127-B 98 5 22 L02-12710
LM-T140-B 108 5 1/2 25 L02-14010
LM-T168-B 130 6 5/8 25 102-16810
LM-T178-B 145 7 50 L02-17810
LM-T219-B 174 8 5/8 71 L02-21910
LM-T245-B 174 9 5/8 71 L02-24510
LM-T273-B 210 10 3/4 71 L02-27320
LM-T273-B1 222 10 3/4 71 L02-27330
LM-T340-B 210 13 3/8 71 L02-34020


h2: Features of LM-T Type Releasing Casing Spear

The fishing tool is the most widely used tool for overhauling oil and water wells. There are many varieties and specifications of fishing tools. According to the types of falling objects in the well, they can be divided into five categories: spear tools, overshot tools, junk basket, hook fishing tools, and cutter tools.

API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com Website: www.oilmanchina.com
