Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal
Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal
Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal
Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal
Specifications
Brand Name :
CCO
Model Number :
SB Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Outer Diameter :
12-400mm
Features :
High Temperature Resistance, Low Friction, Good Wear Resistance
Material :
Nitrile Rubber / Fluorinated Rubber
Color :
Black,Brown
Temperature Range :
-40°C to 100°C
Lip Design :
Double Lip
Spring Material :
Carbon Steel
Application :
Rotary Shaft Sealing
Description

Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal

Composition

This type has single lip and one spring, out structure with iron. Used in the occasion of low pressure without dust and pollution.

According to the different use of media, pressure and temperature, choose different materials. Common materials include: NBR, FKM, Silicone and so on.

Characteristics of Materials

  1. NBR oil seal: good heat resistance, airtightness, abrasion resistance and water resistance are better, strong adhesion. Disadvantages are poor cold and ozone resistance, low strength and elasticity, poor acid resistance, poor electrical insulation, and poor resistance to polar solvents. Temperature range: -20℃~+100℃.
  2. FKM oil seal: is high temperature resistant; fluorine rubber oil seal with acid and alkali resistance, oil resistance, is oil resistant rubber can also be high temperature resistant oil seal; electrical insulation, mechanical properties, chemical resistance, ozone resistance, atmospheric aging resistance are excellent. Disadvantages are poor processability, poor cold resistance, higher prices, lower elasticity and permeability. Use temperature range: -26℃~+250℃.
  3. Silicone oil seals: both high temperature resistance, and low temperature resistance, excellent electrical insulation, high stability to thermal oxidation and ozone, but also oil resistance, solvent resistance, chemical resistance and other characteristics. Disadvantages are: lower mechanical strength, oil resistance, solvent resistance and poor acid and alkali resistance, more difficult to vulcanize, higher prices. Use of temperature range: -55 ℃ ~ +225 ℃.​

Specifications

Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18

Details Images

Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil SealRubber Lip Oil Seal Leak Proof Metal Case Gasket Oil SealRubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal

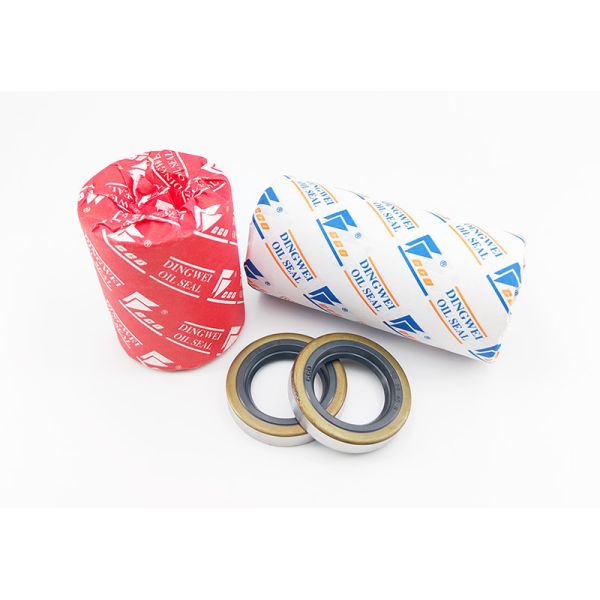

Product Packaging

Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil SealRubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal

Factory

Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal

Rubber Lip Oil Seal Leak Proof Metal Case Gasket Oil Seal

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.

Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
