NBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And Gray
NBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And Gray
NBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And Gray
NBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And Gray
Specifications
Brand Name :
CCO
Model Number :
SC Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Name :
SC
Brand :
CCO
Available Sizes :
Standard and Custom Sizes
Design Type :
Spring Loaded
Installation Method :
Press-fit
Application :
Rotary Shaft Sealing
Lip Type :
Single Lip
Material :
Nitrile Rubber
Description

NBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And Gray

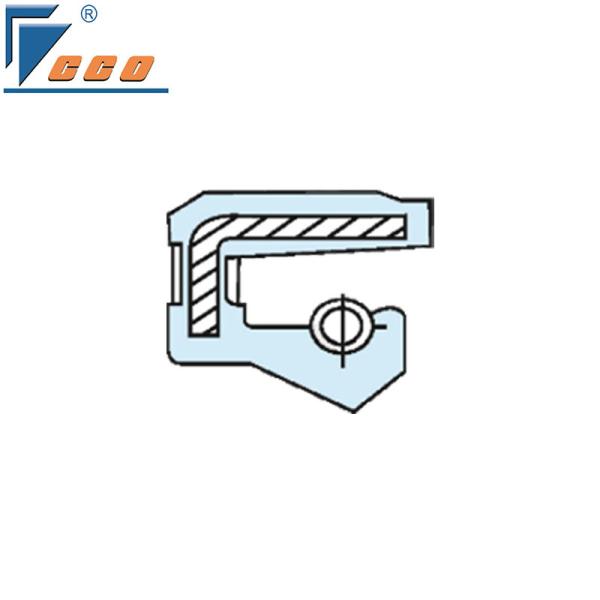

SC TYPE

Single lip,single spring, steel farme wrapped in rubber,rotating seal,used in the occasion of low pressure without dust and pollution.Maximum pressure 0.03 MPA(0.3/ Kgf/cm2).

Characteristics

  1. Low-pressure application: mainly applicable to low-pressure environment, it can maintain good sealing performance under no pressure or very low pressure.
  2. Speed limitation: it can adapt to a certain range of shaft rotation speed, but compared with some high-speed special oil seals, its applicable rotational speed is relatively low.
  3. Temperature range: According to different materials, the working temperature range is different.

Application


Automobile: it can be used in the crankshaft oil seal, transmission oil seal and other parts of the automobile engine to prevent lubricant leakage.


Industrial machinery: commonly used in electric motors, reducers, pumps and other equipment, rotary shaft sealing, to ensure that the lubricating oil inside the equipment does not leak out, to maintain the normal operation of the equipment.


Hydraulic system: In some low pressure hydraulic system, SC type oil seal can be used to seal the hydraulic oil, to ensure the system pressure stability and normal circulation of the oil.

Type

 SC Type

Brand Name

 CCO

Original Place

 Hebei,China

Material

 NBR/FKM/ACM/SILICONE

MOQ

 10 pcs

Application

 Industrial Bearing, Servo Motor, Machine Rotary Shaft

Size

 Different Models

Feature

Oil Resistance, Heat Resistance,Wear Resistance

Shipping

 By Sea, By Express

Payment Terms

 L/C, T/T

Specification of SC Type

NO.

 Specification NO. Specification
1 23*35*6 39 110*130*12
2 25*40*8 40 115*140*12
3 32*52*8 41 115*145*14
4 40*58*8 42 117.47*139.7*12.7
5 40*62*11 43 120*140*12
6 42*65*12 44 120*150*12
7 50*65*8 45 130*160*12
8 50*80*8 46 130*160*13
9 52*65*9 47 130*160*14
10 57.5*72*9 48 130*160*15
11 58*80*12 49 130*170*12
12 60*75*9 50 135*159*12
13 60*80*7 51 135*165*12
14 60*80*10 52 140*160*12
15 60.32*79.37*9.52 53 140*160*13
16 65*90*10 54 140*164*12
17

65*90*13

 55 150*180*13
18 70*90*10 56 150*180*14
19 70*95*13 57 150*180*15
20 75*95*10 58 160*184*12
21 75*100*10 59 160*190*16
22 78*100*10 60 170*200*13
23 80*100*10 61 170*200*15
24 83*98*9 62 177.8*203.2*12.7
25 85*110*12 63 180*210*13
26 85*110*13 64 180*210*15
27 88.9*111*12*9.52 65 180*210*16
28 90*115*13 66 158*210*13
29 95*120*13 67 185*210*15
30 95*125*12 68 190*220*15
31 100*115*9 69 200*230*14
32 100*120*12 70 200*235*18
33 100*125*12 71 205*255*22
34 100*125*13 72 210*240*15
35 100*130*12 73 210*250*16
36 100*130*13 74 230*160*15
37 105*130*12 75 240*270*15
38 105*135*14 76 240*280*19

Details Images

NBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And GrayNBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And Gray

Packaging

NBR SC Type Oil Seal Air Compressor Oil Seal Automobile Single Lip O Sealer Black And Gray

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
