Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial
Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial
Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial
Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial
Specifications
Brand Name :
CCO
Model Number :
SC Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Material :
Rubber
Shape :
Round
Temperature Range :
-40°C to 120°C
Application :
Automotive, Industrial, Agricultural
Size :
Standard
Color :
Black, Gray
Features :
High Temperature Resistance, High Pressure Resistance, High Speed Resistance
Usage :
Industrial Machinery, Automotive, Agricultural Machinery
Resistance :
Oil, Heat, Aging
Sealing Principle :
Lip Seal
Product Type :
Oil Seal
Installation :
Press-fit
Description

Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial

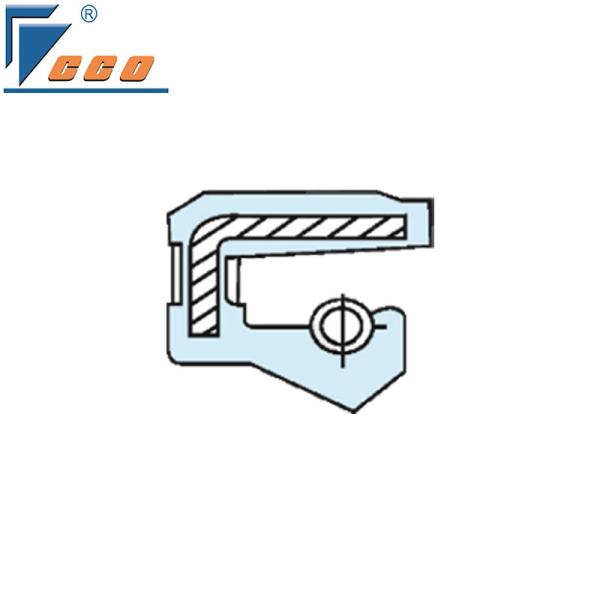

SC TYPE

  • Single lip
  • Single spring
  • Steel farme wrapped in rubber
  • Rotating seal
  • Maximum pressure 0.03 MPA(0.3/ Kgf/cm2).

Material Selection

  • Main material: generally made of Nitrile Rubber (NBR) or Fluorine Rubber (FKM). NBR has good oil resistance, abrasion resistance and certain temperature resistance, which can meet the needs of most of the conventional working environment; fluorine rubber has more excellent high temperature resistance and chemical resistance, which is suitable for some of the more demanding working conditions.
  • Spring material: stainless steel and other corrosion-resistant materials are usually used to ensure that the spring is not easy to rust, failure in the working environment, to ensure that its compression force on the sealing lip is stable and reliable.

Specification of SC Type

NO.

 Specification NO. Specification
1 23*35*6 39 110*130*12
2 25*40*8 40 115*140*12
3 32*52*8 41 115*145*14
4 40*58*8 42 117.47*139.7*12.7
5 40*62*11 43 120*140*12
6 42*65*12 44 120*150*12
7 50*65*8 45 130*160*12
8 50*80*8 46 130*160*13
9 52*65*9 47 130*160*14
10 57.5*72*9 48 130*160*15
11 58*80*12 49 130*170*12
12 60*75*9 50 135*159*12
13 60*80*7 51 135*165*12
14 60*80*10 52 140*160*12
15 60.32*79.37*9.52 53 140*160*13
16 65*90*10 54 140*164*12
17

65*90*13

 55 150*180*13
18 70*90*10 56 150*180*14
19 70*95*13 57 150*180*15
20 75*95*10 58 160*184*12
21 75*100*10 59 160*190*16
22 78*100*10 60 170*200*13
23 80*100*10 61 170*200*15
24 83*98*9 62 177.8*203.2*12.7
25 85*110*12 63 180*210*13
26 85*110*13 64 180*210*15
27 88.9*111*12*9.52 65 180*210*16
28 90*115*13 66 158*210*13
29 95*120*13 67 185*210*15
30 95*125*12 68 190*220*15
31 100*115*9 69 200*230*14
32 100*120*12 70 200*235*18
33 100*125*12 71 205*255*22
34 100*125*13 72 210*240*15
35 100*130*12 73 210*250*16
36 100*130*13 74 230*160*15
37 105*130*12 75 240*270*15
38 105*135*14 76 240*280*19

Details Images

Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial

Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial

Packaging

Machinery Single Lip Crankshaft Oil Seal Rotary Shaft Oil Seals Industrial

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
