Specifications
Brand Name :
CCO
Model Number :
TC Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Color :
Black,Brown
Material :
Nitrile Rubber / Fluorinated Rubber
Sample :
Available
Outer Diameter :
12mm to 110mm
Temperature Range :
-40°C to 120°C
Resistance :
Oil, Grease, Hydraulic Fluids
Tolerance :
±0.1mm
Application :
Rotary Shaft Sealing
Description

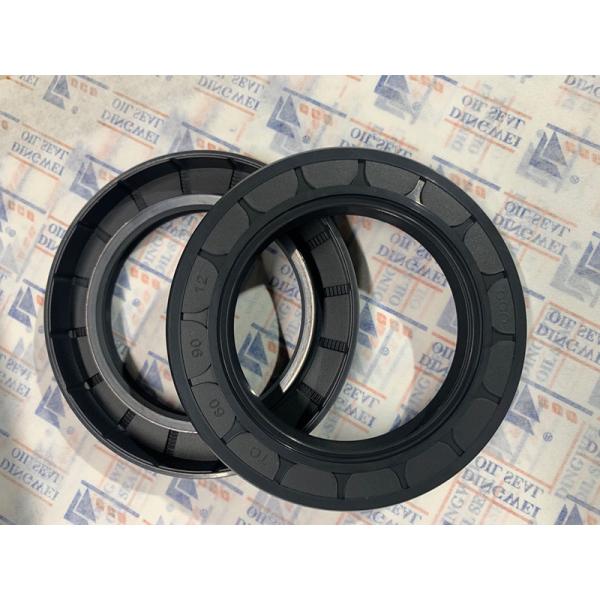

Industrial NBR TC Type Oil Seals High Temperature Resistant

TC TYPE:It is one of the standard models of common skeleton oil seals, also known as lip seals, standard parts oil seals. It belongs to rotary oil seal, which is used for sealing in oil, and dusty occasions. Can be made of different rubber materials such as Nitrile Rubber (NBR), Fluorine Rubber (FKM), Silicone Rubber (SI), etc.

It has the following main characteristics:

  • Double lips, a main lip, a vice lip, this double-lip design greatly improves the sealing performance and protection of the oil seal.
  • One spring.The steel skeleton is fully wrapped in rubber
  • Rotary seal
  • Used in low pressure. Highest pressure 0.03mpa(0.3kgf/cm2)
  • Good heat resistance, Normal working temperature is usually between -40℃ and 120℃.
  • Oil resistance, commonly used in general industrial equipment and automotive oil sealing
  • Good abrasion resistance, long service life
  • Many specifications, can be customized according to requirements

Standard

NO. SPECIFICATION NO. SPECIFICATION
1 4*12*6 2000 38*55*9
2 4*16*4 2001 38*55*10
3 4*16*6 2002 38*55*12
4 4*16*7 2003 38*56*5
5 4.5*15*7 2004 38*56*7
6 4.5*16*7 2005 38*56*8
7 5*12*5 2006 38*56*10
8 5*12*8 ... ...
9 5*13*7 4663 880*930*25
10 4*14*5 4664 890*950*25

...

 ... 4665 900*950*25
201 10*26*5 4666 900*960*25
202 10*26*6 4667 900*960*30
203 10*26*7 4668 910*960*25
204 10*26*8 4669 920*980*25
205 10*27*6 4670 940*1000*25
206 10*28*7 4671 950*1000*25
207 10*28*8 4672 970*1020*25
208 10*29*7 4673 1020*1070*25
209 10*30*7 4674 1150*1200*25
... ... 4675 1320*1370*25
