Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals
Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals
Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals
Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals
Specifications
Brand Name :
CCO
Model Number :
SB Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Temperature Range :
-40°C to 120°C
Color :
Black
Size :
Standard
Installation Method :
Press-fit
Shape :
Round
Working Medium :
Oil
Material :
Rubber
Application :
Automotive, Machinery, Industrial Equipment
Description

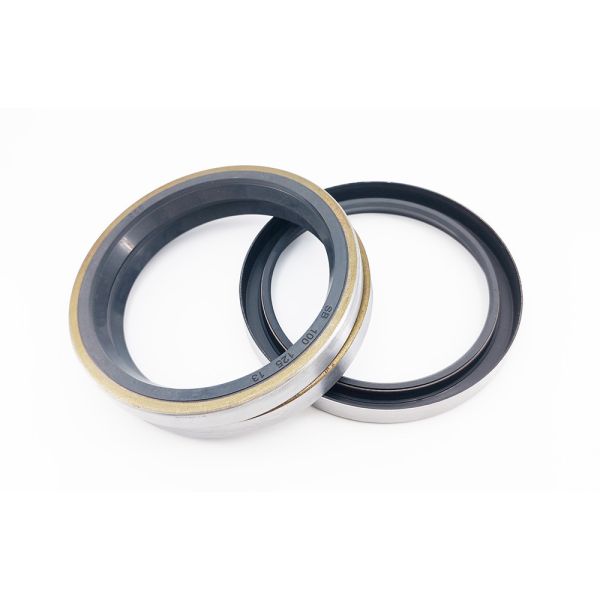

Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals​

Structure

The outer layer is an iron shell, designed for steel rotating shafts or cast iron pool holes. For sealing, single lip with spring, low coefficient of friction, pressure resistance about 0.03Mpa.

1. Metal type oil seal with sealing medium on one side and outer ring for use in clean field.

2. Not only used for lubrication of machinery, but also prevents leakage of water, chemicals, gases, etc. from the crevices of machinery.
3. Prevents intrusion of dust or sand from outside.
4. Optimizes the difference in film thickness between push and pull strokes by distributing the contact pressure of the seal.
5. A rubber sealing lip is sintered to a metal ring to seal the moving parts.

Features of Oil Seal Materials

According to the different use of media, pressure and temperature, choose different materials. Common materials include: NBR, FKM, Silicone Rubber, etc.

MATERIAL

 FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C
Silicone Rubber

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C

Standard

Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18

Details Images

Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring SealsDouble Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring SealsDouble Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals

Product Packaging

Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring SealsDouble Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.

Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.

Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals

Double Lip Oil Seals Hydraulic Pump Oil Seal Rubber Mechanical O Ring Seals
