Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing
Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing
Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing
Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing
Specifications
Brand Name :
CCO
Model Number :
SB Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Lip :
Double
Features :
High temperature resistance, oil resistance, wear resistance
Material :
Nitrile Rubber
Application :
Rotary shaft sealing
Surface Finish :
Smooth
Temperature Range :
-40°C to 120°C
Description

Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing

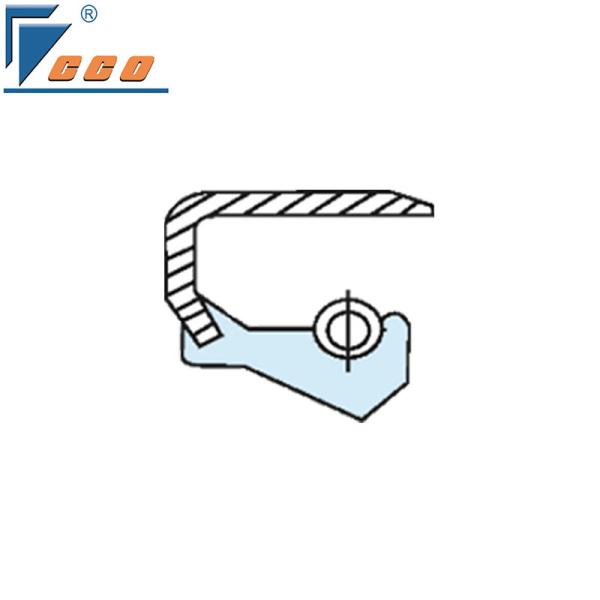

Composition

  • Single lip and spring for secure sealing of oil and grease for more benign environments
  • One spring
  • Under different pressure conditions
  • Out structure with iron, rotating seal
  • Used in the occasion of low pressure without dust and pollution

Application

  1. Automotive industry: It is used for sealing the crankshaft, camshaft and other parts of automobile engines to prevent oil leakage and ensure normal engine operation.
  2. Engineering machinery industry: SB oil seals are used to seal the gap between the piston rod and cylinder barrel of hydraulic cylinders to prevent hydraulic oil leakage and ensure the pressure stability and working efficiency of the hydraulic system.
  3. Environmental protection industry: SB oil seals can prevent the leakage of sewage to avoid secondary pollution to the environment, and at the same time ensure the normal operation of the pump.
  4. Chemical industry: In chemical pumps, SB oil seals are used to seal the gap between the pump shaft and the pump casing, preventing the leakage of chemical media, ensuring the normal operation of the pump, and protecting the safety of the operators and the environment from pollution.​

Standard

Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18

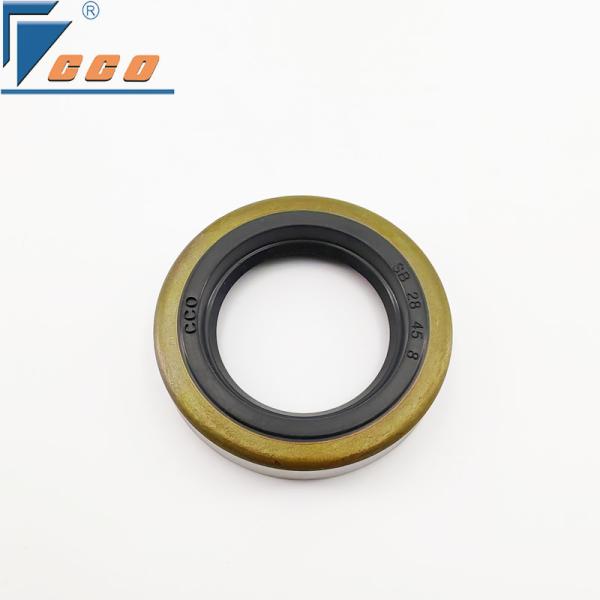

Details Images

Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing

Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing

Product Packaging

Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts SealingRubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing

Factory

Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing

Rubber SB Type Oil Seals Auto Oil Seals Skeleton Oil Seals Shaft Parts Sealing

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.

Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
