Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring
Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring
Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring
Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring
Specifications
Brand Name :
CCO
Model Number :
EC Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Shape :
Round
Usage :
Sealing
Applications :
Pumps, Compressors, Agitators
Performance :
Long service life
Fluid compatibility :
Water, Oil, Chemicals
Colar :
Black And Gray
Description

Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring

Product Description

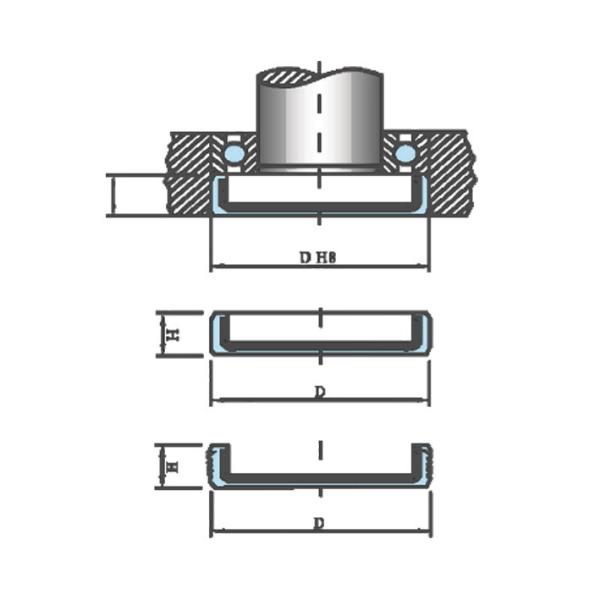

EC TYPE

It is mainly used for the orifice core of the oil sealand the bearing, mainly for the gear box and otherparts, as a substitute for the end flange or endcover, the rubber layer at the outer diameter ensures that the oil seal seat is not easy to leakoil, but also strengthens the neatness and beautyof the gear box and other parts.

APPLICATIONS
EC-type oil seals are used in a wide range of applications.

  • In the automotive industry, it is used in engines, transmissions and differentials.
  • In engines, it seals crankshafts and camshafts, preventing oil leakage and maintaining proper lubrication.
  • In transmissions, it ensures that transmission fluid stays in the system for smooth gearshift operation.
  • In industrial machinery, such as pumps, compressors and gearboxes, EC-type oil seals play a vital role. It seals the shaft in the pump and prevents leakage of the pumped medium (water, oil or chemicals).
  • In compressors, it helps maintain the integrity of the compressed gas or refrigerant.

Materials

MATERIAL FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C

Silicone Rubber

(VQM)

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C

Polyacrylate Rubber

(ACM)

Good wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -15~150°C

Product Images

Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring

Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring

Packaging

Paper bag + carton, also can be customized.

Machinery Fluorine Oil Seal Metal Skeleton Oil Seals O Seal Ring With Spring

About Our Company

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.
The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
