3193557 319-3557 SEAL KIT FIT FOR E D8R D8T
3193557 319-3557 SEAL KIT FIT FOR E D8R D8T
3193557 319-3557 SEAL KIT FIT FOR E D8R D8T
3193557 319-3557 SEAL KIT FIT FOR E D8R D8T
Specifications
Brand Name :
E
Model Number :
319-3557
Place of Origin :
China
MOQ :
10 Pcs/Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000SET
Delivery Time :
Within 5-15 days after getting your desposit
Packaging Details :
PP Bag Inside.outer is carton with film wrapped.
CertifiEion :
ISO 9001
Part No. :
319-3557
Model :
E D8R D8T
Machine :
E TRACK TYPE
Product name :
Cylinder Seal Kit
Size :
Inner size 76.15mm
Material :
NBR,PU,SPCC,PFTE
Temperature Range :
-20 to +150 ℃
Color :
blue,yellow,black
Rod seal :
421-4025
Description

1. Repair Seal Kit Details

Part NO 319-3557
Machine E TRACK D8T D8R
Size OEM
Material PU/NBR/SPCC
Oil seal type TRACTOR CYLINDER SERVICE KIT


2. 3193557 PART NO. FOR D8T TRACK TYPE TRACTOR

3193557 319-3557 SEAL KIT FIT FOR E D8R D8T

Pos. Part No Qty Parts name
319-3557 J [1] KIT-SEAL (LIFT CYLINDER)
1 383-7700 [1] CYLINDER AS (LIFT)
6E-1108 [2] BUSHING
2 383-7702 [1] ROD AS
3 163-6474 [1] HEAD
4 8C-9161 J [1] RING-WEAR
5 312-4248 J [1] SEAL AS-BUFFER
6 312-4247 J [1] SEAL-WIPER
7 421-4025 J [1] SEAL-U-CUP
8 1K-7095 J [1] RING-BACKUP
9 384-8178 [1] PISTON AS
10 387-1390 [1] WASHER-HARD (48X76X6-MM THK)
11 4J-3745 J [1] RING-WEAR
12 5J-7878 [1] NUT-SELF LOCKING (1-7/8-12-THD)
13 383-7697 Y [1] SENSOR GP-POSITION (LIFT)
14 214-1639 [1] MAGNET
15 243-3177 [1] RETAINER
16 3G-0911 B [28] SHIM (0.8-MM THK)
17 160-6310 [1] CAP-BEARING
18 8T-0672 M [4] BOLT (M24X3X160-MM)
19 7X-0851 M [4] NUT (M24X3-THD)
20 095-9806 M [4] BOLT-SOCKET HEAD (M16X2X80-MM)
21 175-7902 J [1] SEAL-O-RING
22 119-7843 J [1] SEAL-O-RING

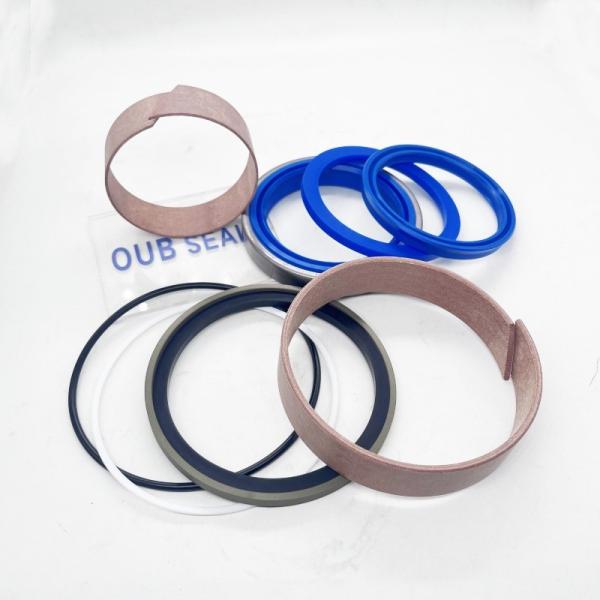

3. Picture viewing for 3193557

3193557 319-3557 SEAL KIT FIT FOR E D8R D8T

4. E SERVICE KIT NO. AND PART NO.

SERVICE KIT No. Part No. Part No.

319-3557

3193556

 6E-1102
380-5282 3651289 222-1222
4Z-6310 2641260 8Y-6860
124-4771 8C0660 3664623
2281775 8C2168 2440250
3746391 2442059 7X2692


5. FAQ
Q1. What kind of cylinder service kit do you have?
A1. We have cylinder kits such as boom,arm,bucket,blade lift,tilt,ripper,counter weigh,adjuster,positioning cylinder.

Q2. I want to buy 2442050 and 3236832 both 50set, do you have them?
A2. Thank you for your trust, I can send you the PI,just give me your email.

Q3. Can you quote for the size and picture?
A3. Of cause!We can check by a part no.or machine no.or size or picture.becuase we are professional.
