6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
Specifications
Place of Origin :
Zhejiang.Hangzhou
Brand Name :
China Jinggong
Certification :
ISO9001, CCC
Model Number :
HZZ5240JQJ16
MOQ :
No limited
Price :
negotiation
Packaging Details :
Wax Spray
Delivery Time :
45days
Payment Terms :
LC,TT, Paypal,Western Union
Supply Ability :
2Units/Month
Port of Delivery :
Shanghai/Ningbo
Product Name :
Bridge Inspection Vehicle
Drive Type :
6x4
Vehicle Type :
Bucket
Chassis :
Dong Feng
Features :
Folding Platform
Length :
16M
G.V.W. :
24000
Outer dimensions :
11240×2500×3930mm
Engine power :
230,245,270(HP)
Rated load platform :
200KG
Description

6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform

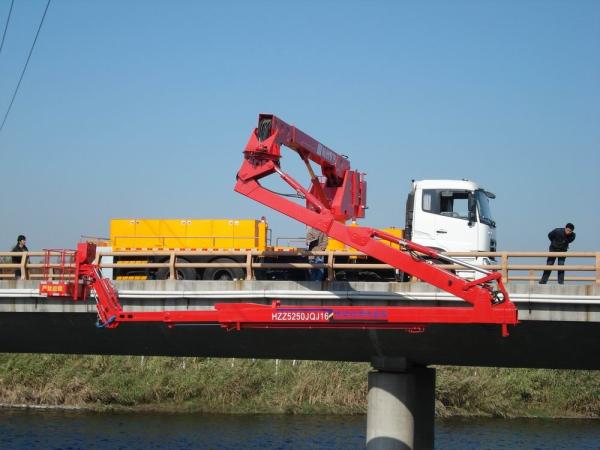

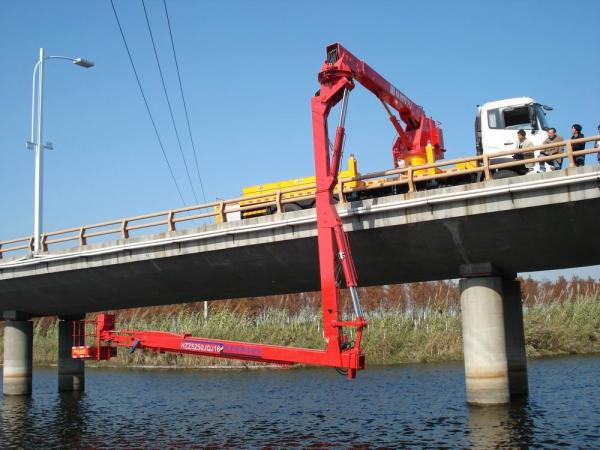

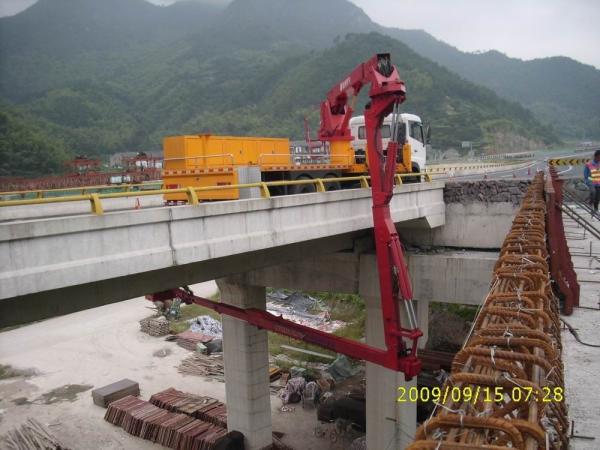

16m Dongfeng 6x4 Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)

Quick Detail:

1. Total Height: 16m

2. Chassis: Dongfeng

3. Engine Power: 230HP

4. Engine: Dongfeng Cummins

5. Drive Type: 6x4

6. Vehicle Type: Bucket Type

7. Wireless Remote control, Wired Remote Control, Cab Computer Monitor

8. Emission Standard: Euro III

9. Name: Bridge Inspection Vehicle

Descrition

Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.


The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model

HZZ5240JQJ 16

Product name

Bucket type bridge inspection unit

Chassis Model

Dongfeng

Driver type

6×4

G.V.W.

24000(Kg)

Outer dimensions

11240×2500×3930mm

Engine model

DONGFENG CUMMINS

ISDe230 30, ISDe245 30, ISDe270 30

Engine power

230,245,270(HP)

Max. horizontal range

0－16.41M

Max. lowering depth

0－23.3M

Max. overbridging of sidewalk

3－5.4M

The first scope of rotation

0－90°

The second scope of rotation

0－135°

Max. load on platform

300KG

Hydraulic system

The proportion of electro-hydraulic servo systems

Control system

Manual control mode

Cable control mode

Wireless control mode

6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform

Vertical working range under bridge Horizontal working range under bridge

6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform

6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform

Competitive Advantage:

Patented outrriger: Main arm across range approx 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition,the total length of sidewalk with bicyclepath is about 4m. This patented design can better afford the 4m widthness reach, hydruclic control with improved flexible movement, get stuck rarely. The outrriger's crawler drives the stabilizer with less pressing to reduce ground damage while operating under the bridge selfly.
