18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
Specifications
Place of Origin :
Zhejiang.Hangzhou
Brand Name :
China Jinggong
Certification :
ISO9001, CCC
Model Number :
HZZ5311JQJ
MOQ :
1 set
Price :
negotiation
Packaging Details :
Nude Packing
Delivery Time :
2 month
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
100 units per year
Port of Delivery: :
Shanghai / Ningbo
Material :
Steel Structure
Color :
red
Boom Size :
18m
Model :
Bucket With Basket
Span Width :
5.2m
Span Height :
4.3m To 5.8m
Description

18m bucket type under bridge inspection truck under bridge access maintenance repairing maximum flexibility

Detailed Product Description
Model: HZZ5240JQJ 18 G.V.W.: 24000
Outer Dimensions: 11240×2500×3930mm Engine Model: DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30
Engine Power: 230,245,270(HP) Rated Load Platform: 300KG
Hydraulic System: The Proportion Of Electro-hydraulic Servo Systems



6x4 18M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFL1250A9
1. Total Height: 18m
2. Chassis: Dongfeng
3. Engine Power: 230HP
4. Drive Type: 6x4
5. Vehicle Type: Bucket Type
6. Name: Bridge Inspection Vehicle

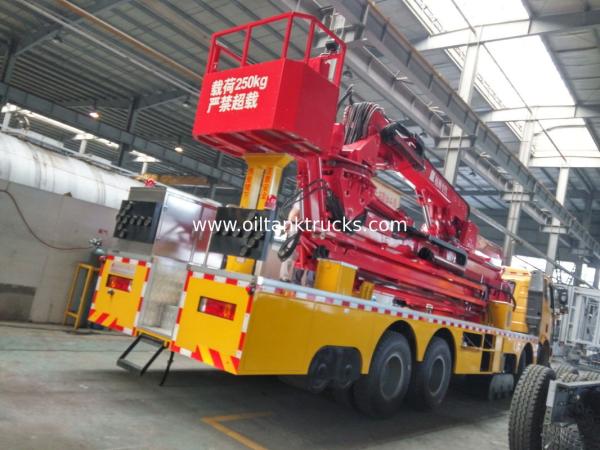

Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

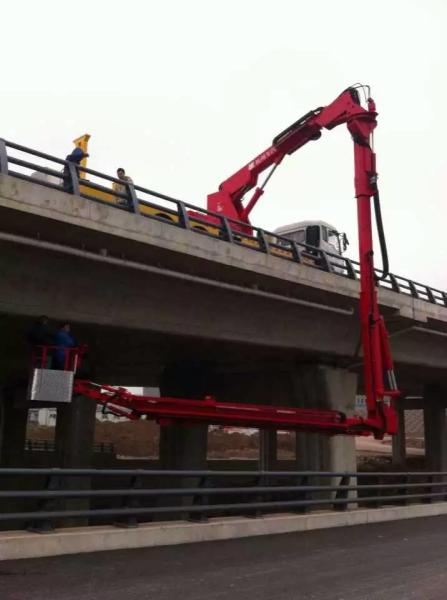

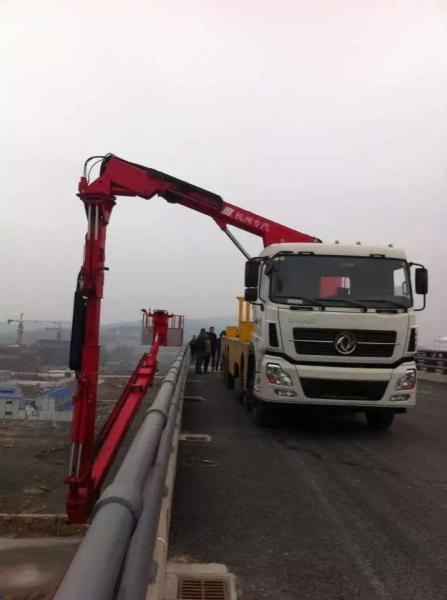

The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.
Specifications:

Model HZZ5311JQJ
Product name Bucket type bridge inspection vehicle
Chassis Model
Driver type 6×4
Total mass 24000(Kg)

Outer dimensions		 11240×2500×3930mm
Engine model DONGFENG CUMMINS
ISDe230 30, ISDe245 30, ISDe270 30
Engine power 230,245,270(HP)
Max. horizontal range 0－16.41M
Max. lowering depth 0－23.3M
Max. overbridging of sidewalk 3－5.4M
The first scope of rotation 0－90°
The second scope of rotation 0－135°
Max. load on platform 300KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode


18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
Vertical working range under bridge Horizontal workingrange under bridge
18m Bucket Type Bridge Inspection Truck Under Bridge Access Equipment
Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
