Description

6x4 18M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFF1310A1

1. Total Height: 18m
2. Chassis: Dongfeng
3. Engine Power: 230HP
4. Drive Type: 6x4
5. Vehicle Type: Bucket Type
6. Name: Bridge Inspection Vehicle

Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

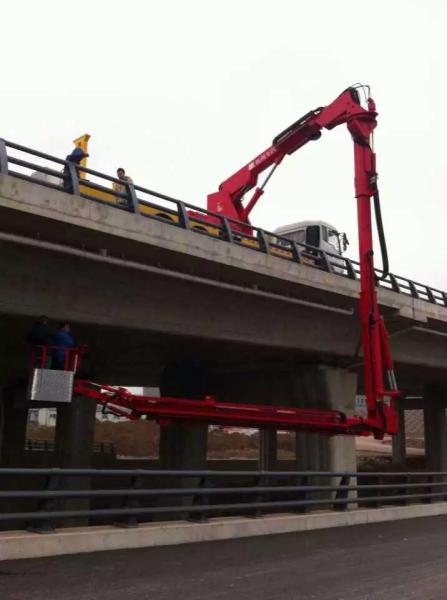

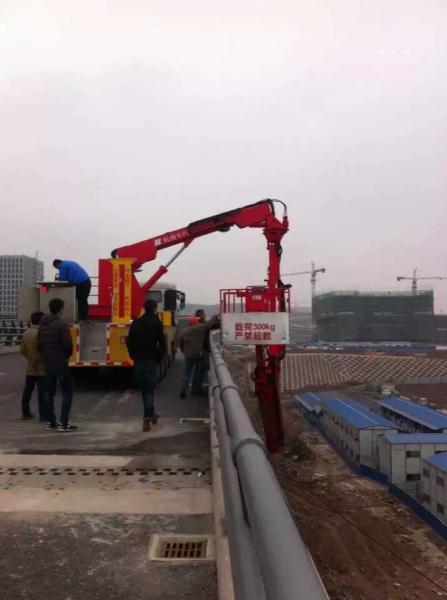

The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model HZZ5311JQJ 18
Product name Bucket type bridge inspection vehicle
Chassis Model
Driver type 6×4
Total mass 31000(Kg)

Outer dimensions		 12150×2500×3990mm
Engine model DONGFENG CUMMINS
ISDe230 30, ISDe245 30, ISDe270 30
Engine power 230,245,270(HP)
Max. horizontal range 0－18.1M
Max. lowering depth 0－23.3M
Max. overbridging of sidewalk 3－5.4M
The first scope of rotation 0－90°
The second scope of rotation 0－135°
Max. load on platform 300KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode

Vertical working range under bridge Horizontal workingrange under bridge

6x4 Dongfeng Chassis 18M Bucket Bridge Inspection Equipment For Bridge Detection


Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge.
