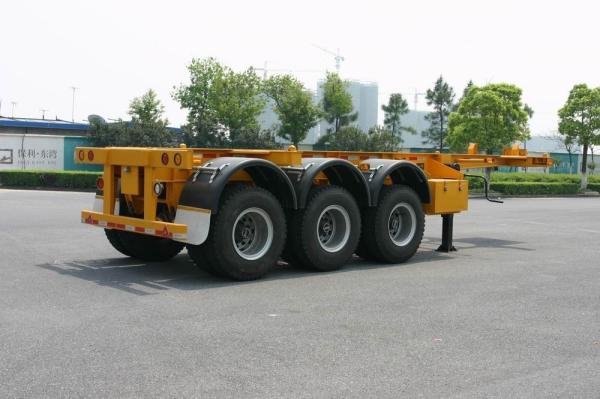

ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer
ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer
ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer
ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer
ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer
ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer
Specifications
Place of Origin :
Zhejiang.Hangzhou
Brand Name :
China Jinggong
Certification :
ISO9001, CCC
Model Number :
HZZ9401TJZ
MOQ :
No limited
Price :
negotiation
Packaging Details :
Naked
Delivery Time :
45days
Payment Terms :
T/T, L/C, Paypal, Western Union
Supply Ability :
10 Units/Months
Port of Delivery: :
Shanghai/Ningbo
Product :
Flat-bed type
Model :
HZZ9400TJZP
Size :
40 feet
Tyre :
11.00R-20, Rail tyre
Axle :
BPW
Kingpin :
50# JOST
Landing leg :
KIC
Frame material :
Carbon steel (Q345)
Container lock :
12 pieces
Braking system :
Dual braking system
Outer dimension (mm) :
12391x2480x1585
Wheel base (mm) :
7070+1350+1350
Tare weight (kg) :
8000
Payload (kg) :
32000
Total weight (kg) :
40000
Number of spring steel plate :
8/8/8
Number of axles :
3
Description

ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer

Quick Details

  • Use: Truck Trailer
  • Type: Semi-Trailer
  • Material: Steel
  • Size: 8500x2480x1585
  • Max Payload: 35000 kg
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Hongzhou
  • Model Number: HZZ9401TJZ
  • Components: Trailer Plugs
  • Total mass (kg): 40000
  • Kerb weight (kg): 5000
  • Payload (kg): 35000
  • Wheel base (mm): 4160+1310+1310
  • Tread (Front/Rear): 1830/1830/1830

Specifications

Basic specs for container trailer:
1.Total payload:35000kg
2.Axles:Rear 3 FUWA
3.Trailer type:Skeletal container semi-trailer

Basic specs for 40ft Carbon-steel skeletal container trailer chassis (Rear 3 FUWA axles):


1. Total payload: 35000kg


2. Axles: FUWA or BPW

3. Chassis material: Carbon-steel

4. ABS System: with

5. Landing leg: JOST or KIC

6. Trailer type: Skeletal container semi-trailer

7. Chassis specs: Can load one or two standard container or tank container

Basic technical parameters of 40ft container transport semi-trailer chassis:

Purpose of this trailer

This is the special semi-trailer for TANK CONTAINERS. (with Flatbed type and Skeleton type)



Advantages

Reliable, long life and easy maintenance characteristics. In addition, in line with international maritime standards,

with self-weight light.



Others

We produced the tank container semi-trailer in accordance with the chinese standard design.

Specialfication Of Container Semi-trailer

Product Flat-bed type Skeleton type Skeleton type
Model HZZ9400TJZP HZZ9400TJZ HZZ9280TJZ
Size 40 feet 40 feet 20 feet
Tyre

11.00R-20,

Rail tyre

11.00R-20,

Rail tyre

11.00-20,

Nylon tyre
Axle BPW BPW

FUWA

(chinese brand)
Kingpin 50# JOST 50# JOST 50#JOST
Landing leg KIC KIC KIC
Frame material Carbon steel (Q345) Carbon steel (Q345) Carbon steel (Q345)
Container lock 12 pieces 12 pieces 4 pieces
Tyre holder 2 pieces 2 pieces 1 piece
Tool box 1 piece 1 piece 1 piece
Braking system Dual braking system Dual braking system Dual braking system
Outer dimension (mm) 12391x2480x1585 12390x2480x1530 7500x2480x1690
Wheel base (mm) 7070+1350+1350 7070+1350+1350 4250+1350
Tare weight (kg) 8000 6920 4250
Payload (kg) 32000 33080 24000
Total weight (kg) 40000 40000 28250
Number of spring steel plate 8/8/8 8/8/8 7/7
Number of axles 3 3 2
Number of tyre 12 12 8
