Specifications
Place of Origin :
Zhejiang.Hangzhou
Brand Name :
China Jinggong
Certification :
ISO9001, CCC
Model Number :
HZZ5251QJ
MOQ :
No limited
Price :
negotiation
Packaging Details :
Naked
Delivery Time :
90days
Payment Terms :
T/T, L/C, Paypal, Western Union
Supply Ability :
100Units/year
Port of Delivery: :
Shanghai/Ningbo
Materia :
Aluminum Platform
Color :
Yellow
overbridge sidewalk :
2.5m
crossing sound barrier height :
3.1m
total weight :
25ton
Description

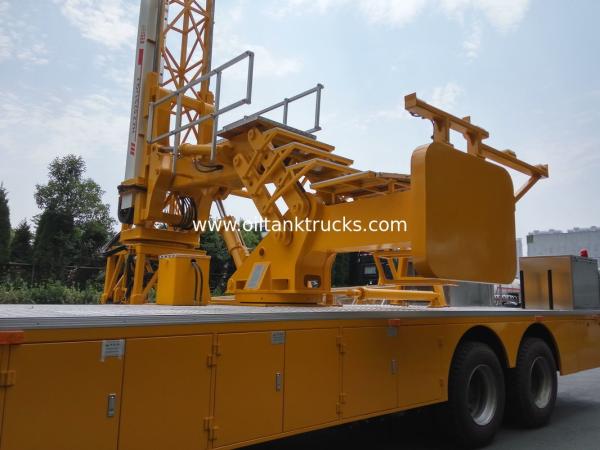

15m aluminum platform type bridge inspection access equipment 800kg load

6x4 15M FAW chassis Platform type Bridge Inspection Equipment For Bridge Detection

1. Total Height: 15m
2. Chassis: FAW
3. Engine Power: 209HP
4. Drive Type: 6x4
5. Vehicle Type: Platform Type
6. Name: Bridge Inspection Vehicle

Bucket type is equipped with FAW chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model HZZ5251JQJ
Product name Platform type bridge inspection vehicle
Chassis Model
Driver type 6×4
Total mass 25000(Kg)

Outer dimensions		 11355×2550×3990mm
Engine model FAW CA6DK1-28E5
Engine power 209HP
Max. horizontal range 0－15
Max. lowering depth 0－6.8M
Max. overbridging of sidewalk 2.5M
The first scope of rotation 0－90°
The second scope of rotation 0－180°
Max. load on platform 600KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode
