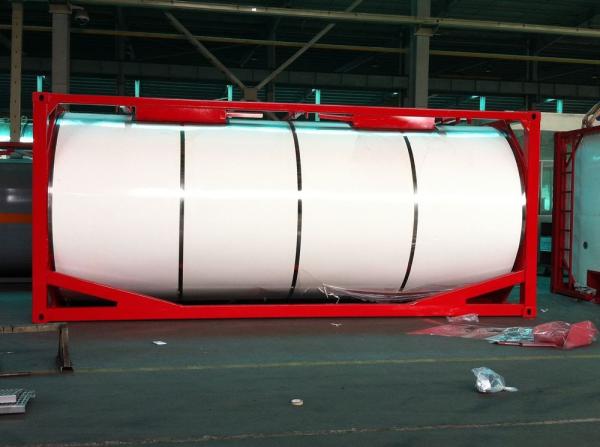

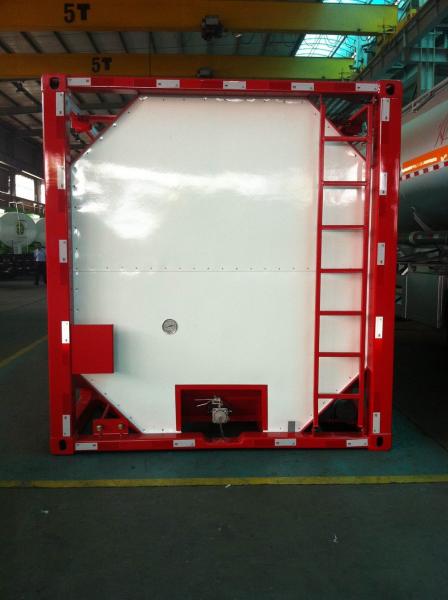

Insulated Liquid Tank Container / Horizontal 20ft ISO Tank Container
Insulated Liquid Tank Container / Horizontal 20ft ISO Tank Container
Insulated Liquid Tank Container / Horizontal 20ft ISO Tank Container
Insulated Liquid Tank Container / Horizontal 20ft ISO Tank Container
Specifications
Place of Origin :
Zhejiang.Hangzhou
Brand Name :
China Jinggong
Certification :
ISO9001, CCC
Model Number :
TANK2200
MOQ :
No limited
Price :
negotiation
Packaging Details :
Naked
Delivery Time :
45days
Payment Terms :
T/T, L/C, Paypal, Western Union
Supply Ability :
5Units/Month
Port of Delivery: :
Shanghai/Ningbo
Exterior dimensions(mm) :
6058×2438×2591
Design temperature(℃) :
50
Insulating performance :
If necessary
Water testing pressure(MPa) :
0.4 (Cylinder-shaped)
Insulating materials and thickness(mm) :
50mm Glass fiber/Polyurethane
Heating :
Steam heat
Capacity(m3) :
20FT(Max. 26000L), 30FT(Max.39000L)
Main Tank Materials :
Carbon steel Q345,stainless steel304/316L
Norminal Barrel Thickness (mm) :
5
Norminal Ends Thickness(mm) :
6
Outer matte materials :
Stainless steel mirror finish/GRP
Frame Material :
Carbon Steel Q345D
Manway, Breather valve, Foot valve :
Optional “FORT VALE” , “EMCO”
Description


Insulated Liquid Tank Container / Horizontal 20ft ISO Tank Container

Quick Details:

20 feet / 40 feet tank container

Main Tank Materials:Carbon steel Q345,stainless steel304/316L

Type: Horizontal

standard:ISO international standard

The tank container design in accordance with ISO international standard, accord with international shipping standard. The production has such advantages as: light tare weight, widely-range loading, long service life, easy clean and maintenance.

Applications:


Widely used in chemical manufacture, greatly save the storage space and reduce the cost which compare with the traditional barrel package.


Specifications:

Technical Parameter of Tank Container

20 feet tank container

40 feet tank container

Exterior dimensions(mm)

6058×2438×2591

12192×2438×2591

Design temperature(℃)

50

Insulating performance

If necessary

Water testing pressure(MPa)

0.4 (Cylinder-shaped)

0.15(Square-shaped)

Insulating materials and thickness(mm)

50mm Glass fiber/Polyurethane

Heating

Steam heat

Capacity(m3)

20FT(Max. 26000L), 30FT(Max.39000L), 40FT(Max.48000L)

Main Tank Materials

Carbon steel Q345,stainless steel304/316L

Norminal Barrel Thickness (mm)

5

Norminal Ends Thickness(mm)

6

Outer matte materials

Stainless steel mirror finish/GRP

Frame Material

Carbon Steel Q345D

Manway, Breather valve, Foot valve

Optional “FORT VALE” , “EMCO”


Competitive Advantage:


The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.
