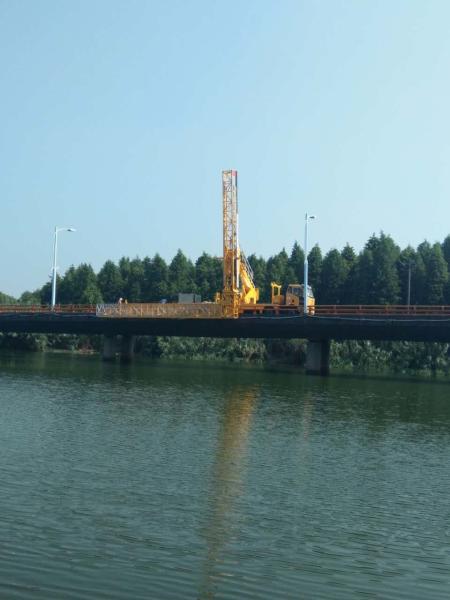

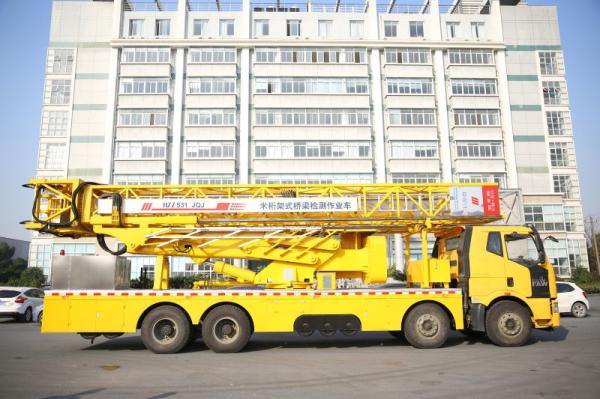

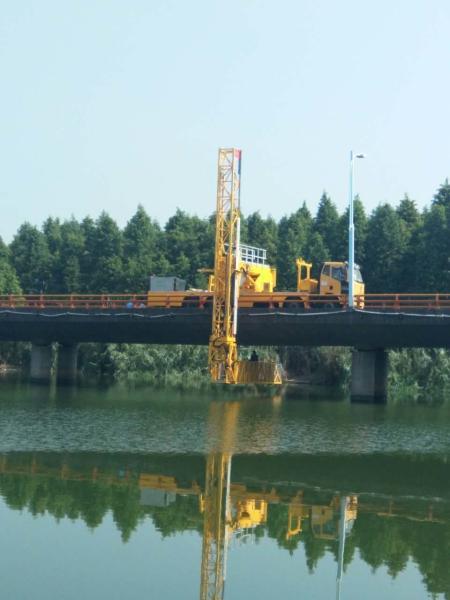

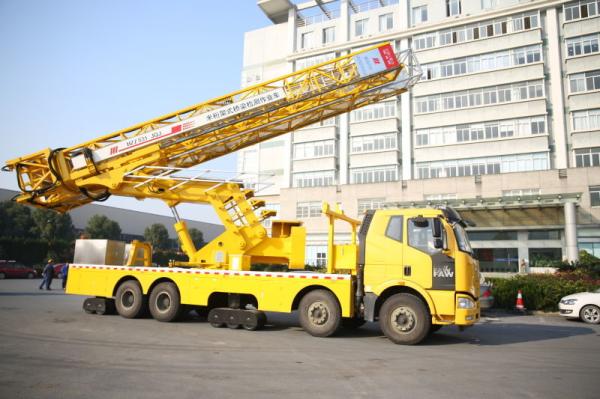

22m Bridge inspection platform under bridge access structure mounted with truck with FAW chassis

Main description:

Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.

Platform type Bridge inspection vehicle used FAW chassis, drive mode is 8 × 4, the maximum driving speed is 102km / h, maximum working speed is 10m/min, maximum operating inspection speed is 15m/min, and good view cab with air conditioning system and FM / AM radio, it is very suitable for large bridges, overpasses, approach bridges and other various types of bridge preventive inspection.

Product standard:

Main characteristic:

1. Leading Technology

It is the high-tech products which has dozens of patents for an invention and utility model patents, and developed with comprehensive facts for the bridge structure, to ensure the technology and performance of vehicle is located in the domestic and overseas leading level.

2.Optimization Chassis

Used FAW, chassis, attractive appearance, strong power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.

3. Reliable Performance

Vehicle electrical, hydraulic control systems used all imported components; Main structure parts made of imported high-strength steel, welded with imported high-strength welding wire.

4.Loading Capacity is strong

Max. load on platform is 800kg.

5. Wide range of application

Horizontal range: 22000mm, Max. crossing of sound barrier: 4700mm, Max. overbridging of sidewalk:2700mm.

6.High Working Efficiently

Can be inspected the entire fan of bottom of bridge at the same time, used mechanical hydrostatic self-propelled patent technology, the operating speed is 15m/min.

7.Powerful Communication Function

Configure the video image monitoring system, enabling multi-party video intercom, platform monitoring, reverse video and other functions to ensure smooth communication.

8. With Complete Accessory

Users may need to select the individual of various types configuration to extend bridge inspection vehicle’s functions.

9. High Adaptability To Circumstance

Has a good performance in high temperatures, low temperatures, high humidity and other harsh natural environment, such as elevation of 2000m, ambient temperature -20 ℃ to +50 ℃, relative humidity 98%, wind level 6 that also can work properly.

10. Good operation performance

Equipped with imported wireless remote control(original from Germany NBB), the control distance is 100 meters.
