22M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges
22M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges
22M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges
22M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges
Specifications
Brand Name :
China Jinggong
Model Number :
HZZ5240JQJ16
Certification :
ISO9001, CCC
Place of Origin :
Zhejiang.Hangzhou
MOQ :
No limited
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal, Western Union
Supply Ability :
10Units/Months
Delivery Time :
45days
Packaging Details :
Naked
Port of Delivery: :
Shanghai/Ningbo
Specification :
22m
load of working basket :
250kg
wheel formula :
8*4
axles :
4
Gearbox :
Manual
operation model :
remote
sidewalk width :
4.5m
sound barrier :
4.6m
Description

22 M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges(HZZ5311JQJ)

The Bridge Inspection Vehicle is a kind of special-purpose vehicle for bridge inspection personnel to provide operation platform during the inspection process, and can be used for all kinds of large and medium-sized bridge inspection, maintenance and repair, reinforce and etc.

Specifications:

Model

HZZ5311JQJ

Product name

Operating vehicle for bridge detection

Chassis Model

GB450B 10×4×6NA

Driver type

10×4x6

Total mass31

38000(Kg)

Outer dimensions

12700×2500×3990mm

Engine model

DC13

Engine power

450(HP)

Operating range under bridge

0－22.41M

Vertical operating range under the bridge

0－23.3M

The main arm across the width

4.5M

The first scope of rotation

0－90°

The second scope of rotation

0－135°

Rated load platform

250KG

Hydraulic system

The proportion of electro-hydraulic servo systems

Control system

Manual control mode

Cable control mode

Wireless control mode

22M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges

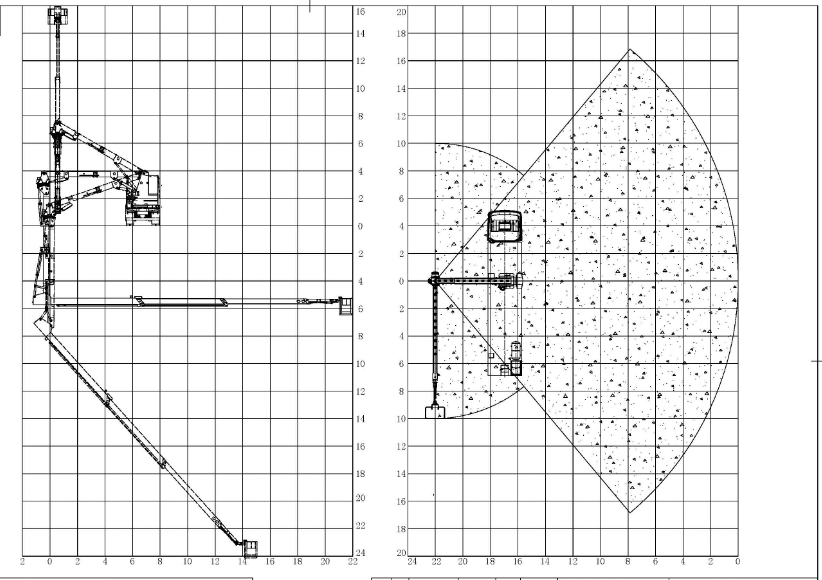

Vertical operating range under the bridge Operating range under bridge

The Bridge Inspection Vehicle can ensure that the staff or related equipment can be quickly and safely transported to each part of the bridge, including and places on the bridge, under bridge and bridge mast. Bucket angle adjusting.
