Specifications
Brand Name :
HSA
Model Number :
HSA5251JQJ
Certification :
ISO9001, CCC
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 sets per year
Delivery Time :
90 days
Packaging Details :
lude
horizontal working length :
15m
related load capacity of platform :
300kg/600kg
Erecting time :
Self Erecting within 5 Minutes
Self Propelled :
KB transfer case
road occupation :
Single Lane Operation
Sound barrier overcrossing :
4.5m
crossing sidewalk width :
3.5m
Description

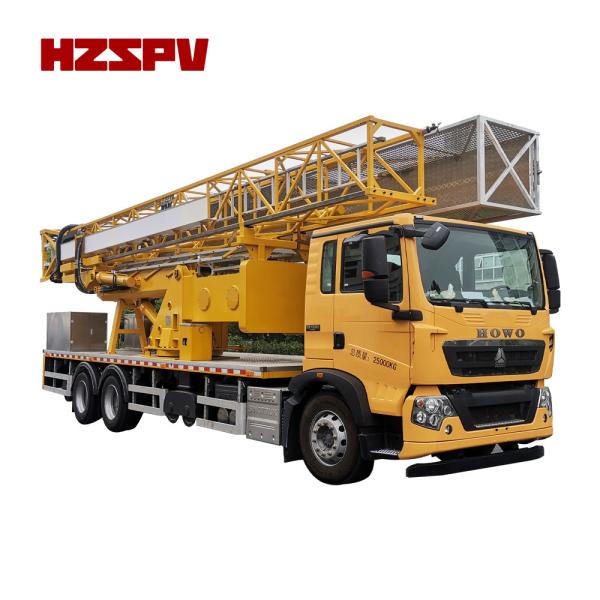

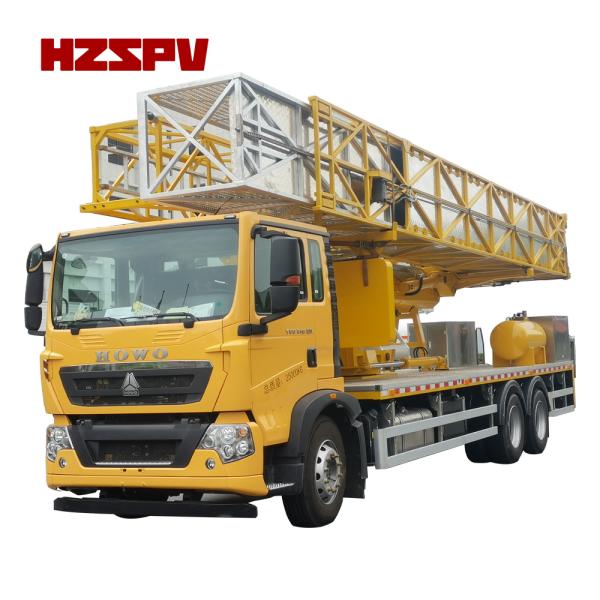

China newest platform type under bridge inspection truck from HSA

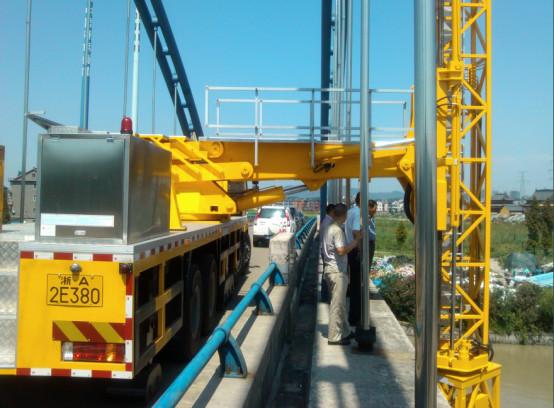

The platform type bridge inspection truck is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

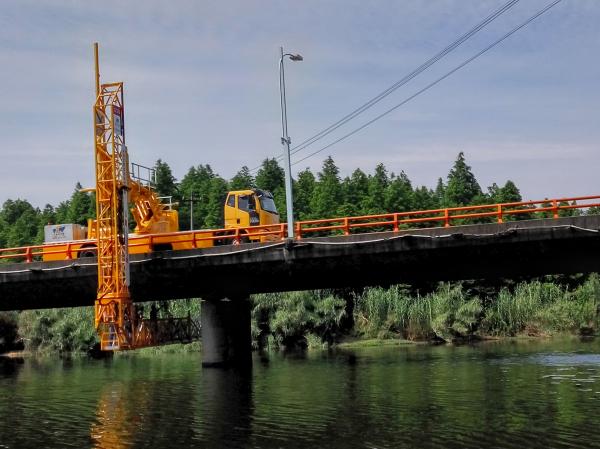

It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.

Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.

  • Cab optional air condition, driver’s seat can be moved front and back, back and lift height of the seat can be adjusted, the cab also can take 2 passengers.
  • Instrument board configuration: Speedometer, water temperature, fuel gauge, engine speed recorder,alarm indicator, gear position indicator light,turning indicator light.
  • Rear axle equipped with four hydraulic cylinder for supporting wheel, supporting the chassis frame when working, to increase stability and safety for the vehicle.
  • The control panel equipped with button or switch for hydraulic pump control, transfer case(retarder motor) control, walking control.


Under Bridge Inspection Units Designed For bridge Maintenance and repair job

  1. Specifications:
Structure type of bridge inspection vehicle Platform type
Max. Horizontal working range 15M
Max. vertical working depth 8000mm
Width of work platform 1080mm
Max. load on Truss platform 600KG
Max. load on telescopic Truss platform 300KG
Max. Width of sidewalk spanning 3000mm
Max. height of guardrail spanning 4200mm
The 1st rotation angle scope 0~90°
The 2nd rotation angle scope 0~1800
Max. amble travelling speed 15m/min
Operation Mode Wireless Remoter , Panel, Emergency manual
Drive system Two drive system: PTO and gasoline generator
Amble self travelling device Transfer case instead of amble motor
Chassis HOWO 6X4
G.V.W 25000KG
Overall dimensions 11560(L)×2500(W)×4000 (H)mm


working video on youtube website:

Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be

Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
