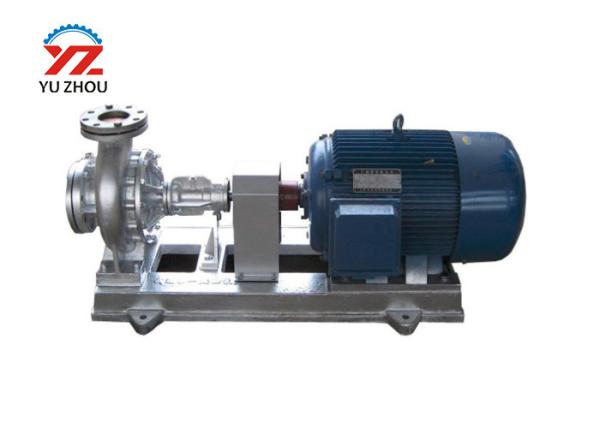

Air Cooling Hot Oil Transfer Pump Centrifugal Type Cast Iron Material RY Series
Air Cooling Hot Oil Transfer Pump Centrifugal Type Cast Iron Material RY Series
Air Cooling Hot Oil Transfer Pump Centrifugal Type Cast Iron Material RY Series
Air Cooling Hot Oil Transfer Pump Centrifugal Type Cast Iron Material RY Series
Specifications
Brand Name :
Yuzhou
Model Number :
RY
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500sets/month
Delivery Time :
3-7 Work Days
Packaging Details :
Plywood Case Package
Product Name :
Hot Oil Transfer Pump
Voltage :
220V/380V/415V/440V /460V.
Package :
standard export plywood case packaging.
MOQ :
1 set
Brand :
Yuzhou
Warranty :
1 year
Description

RY Series air-cooling Centrifugal Hot Oil Transfer Pump Cast iron Stainless steel crude oil pump

Brief introduction

1.RY series 370 Degree C heat boiler thermal hot oil pump is suitable for heat-conduction oil, or other hot oils with temperature ≤350°C

2.It has a reasonable structure, advanced technology, high efficiency, long-term stable operation without leakage in the hot state. Used to transport not containing solid particles of corrosion high temperature liquid with system of directly wind cooling.

3. It's widely used in petroleum oil, chemical industry, rubber, leather, food industry, grease, boilers, construction, road maintenance, pharmaceutical, plastics, rubber, synthetic fiber textile, printing and dyeing and other industrial fields.

Hot Oil Pump/ Centrifugal Oil Pump

1.Pump Body: Stainless Steel/Fluorine Plastic

2.Impeller: Stainless Steel

3.Mechanical Seal: Carbon / Ceramic / Stainless Steel

Motor

1.Single Phase/3 phase

2.Heavy Duty Continuous Work

3.Motor Housing: Aluminum

4.Shaft: Stainless Steel

5.Insulation: Class B / Class F

6.Protection: IP44 / IP54

7.Cooling: External Ventilation

Operating conditions

1.Liquid temperature up to 60°C

2.Ambient temperature up to 40°C

3.Total suction lift up to 9m

4.Continuous duty

Product details:

Working Principle: Centrifugal
Main applications: Hot oil, thermal oil, high temperature oil, etc
Driver: Electric motor, diesel motor.
Power Specs: 220/380/400/415V 3phase;50hz/60hz
Max.permissible fluid temperature: 350°C
Type of connection: Flange
Installation position: Horizontal
Casing parts material: Cast steel
Shaft seal type: Shaft seal ring, Mechanical seal, Carbon seal
Free passage: 1mm
Maximum viscosity: 5X104cst
Maximum drive rating: 132KW
Maximum caliber: 150mm
Maximum discharge-side pressure: 0.85Mpa
Maximum head: 85m
Flow rate range: 4.5-400m³/h

Technical details:

Model

Flow

( m³/h)

Lift

(m)

Speed

(r/min)

 Shaft Power(kw)

Power

(kW)

Efficiency

(%)
20-20-100 1 10 2800 0.09 0.75 26
20-20-125 1.5 22 2800 0.22 0.75 30
25-25-160 3 27 2900 0.53 1.5 30
32-32-160 6 28 2900 0.85 1.5 50
40-25-160 10 28 2900 1.72 2.2 45
40-25-200 10 50 2900 3.30 4.0 50
50-32-160 12.5 30 2900 1.90 3.0 57
20-20-100 1 10 2800 0.09 0.75 26
20-20-125 1.5 22 2800 0.22 0.75 30
25-25-160 3 27 2900 0.53 1.5 30
32-32-160 6 28 2900 0.85 1.5 50
40-25-160 10 28 2900 1.72 2.2 45
40-25-200 10 50 2900 3.30 4.0 50
50-32-160 12.5 30 2900 1.90 3.0 57
50-32-200 12.5 50 2900 3.78 5.5 45
50-32-200 18 40 2900 3.95 5.5 50
50-32-200A 16 32 2900 3.35 4.0 42
50-32-250 12.5 80 2900 6.20 11 44
50-32-250 18 70 2900 7.6 11 45
50-32-250A 16 60 2900 6.20 7.5 42
65-50-160 20 32 2900 3.17 5.5 55

65-40-200

 25

50

2900

5.87

7.5

 58
65-40-200 30 48 2900 6.30 7.5 62
65-40-200A 25 35 2900 4.00 5.5 59
65-40-250 25 80 2900 10.3 15 53
65-40-250A 20 51 2900 5.67 7.5 49
65-40-315 25 125 2900 18.9 30 45
65-40-315A 22.5 100 2900 15.3 22 40
80-50-200 40 52 2900 8.85 15 64
80-50-200 50 50 2900 9.70 15 70
80-50-200 60 46 2900 11.0 15 70
80-50-200A 45 40 2900 7.80 11 63
80-50-200B 40 32 2900 6.37 7.5 55
80-50-250 50 80 2900 18.7 22 58
80-50-250 60 72 2900 19.6 22 60
80-50-250A 43 60 2900 12.80 15 55
80-50-315 50 125 2900 30.4 45 56
80-50-315A 45 100 2900 23.6 30 52
100-65-200 80 53 2900 16.50 22 70
100-65-200 100 50 2900 18.40 22 74
100-65-200A 94 44 2900 16.00 22 70
100-65-200B 87 38 2900 13.80 15 65
100-65-200C 80 32 2900 11.80 15 59
100-65-250 80 85 2900 28.90 37 64
100-65-250 100 80 2900 32.06 37 68
100-65-250A 95 72 2900 29.00 37 64
100-65-250B 90 65 2900 26.20 30 61
100-65-315 80 130 2900 45.00 75 63
100-65-315 100 125 2900 50.06 75 68
100-65-315A 95 113 2900 45.23 55 64
100-65-315B 90 100 2900 40.50 55 60
100-65-315C 82 84 2900 34.76 45 54
125-80-160 160 50 2900 28.70 22 76
125-80-200 160 50 2900 28.7 37 76
125-80-200 180 45 2900 29.4 37 75
125-80-250 160 80 2900 47.75 55 73
125-80-250A 140 70 2900 39.20 45 69
125-100-200 180 52 2900 34 45 75
125-100-200 200 50 2900 35.4 45 77
125-100-200A 178 40 2900 26.60 37 73
125-100-250 200 70 2900 47.00 55 80
125-100-250 230 62 2900 51.80 55 75
125-100-250A 190 63 2900 44.00 55 74
125-100-250B 180 57 2900 40.00 45 70
125-100
