Anti Heat Industrial Centrifugal Pump , Highly Corrosive Medium Electric Chemical Pump
Anti Heat Industrial Centrifugal Pump , Highly Corrosive Medium Electric Chemical Pump
Anti Heat Industrial Centrifugal Pump , Highly Corrosive Medium Electric Chemical Pump
Anti Heat Industrial Centrifugal Pump , Highly Corrosive Medium Electric Chemical Pump
Specifications
Brand Name :
Yuzhou
Model Number :
IHF
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets/month
Delivery Time :
3-7 working days
Packaging Details :
Plywood case package
Product Name :
Chemical Pump
OEM :
YES
Structure :
Single stage
Application :
Corrosive, pure and contaminated media in the chemical
Theory :
Centrifugal pump
Power :
Electric motor drive
Description

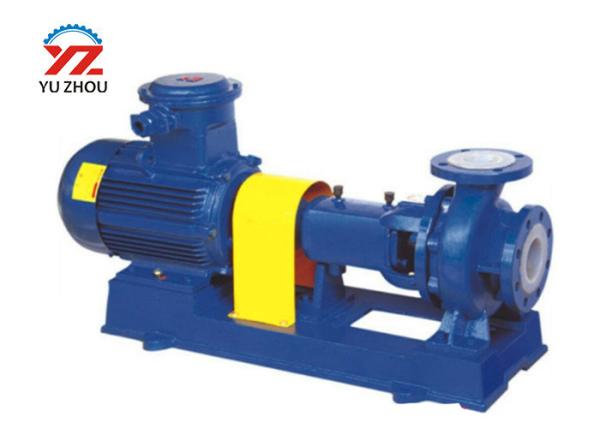

IHF anti-heat industrial grade centrifugal pump highly corrosive medium chemical pump

1. Summarize
IHF type lining fluorine centrifugal pump is a single-stage single-suction centrifugal pump designed according to the international standard ISO2858. It has high temperature and strong corrosion resistance and is widely used in chemical, pharmaceutical, petroleum, metallurgy, electric power, electroplating, printing and dyeing, pesticide, paper, jewelry, chemical fiber and other industries.

2. Usage
This pump can be used to transport sulfuric acid, nitro-hydrochloric acid, strong oxidative and strong corrosive media, it is one of the most advanced corrosion- proof equipments at present.

3. Characteristic
Anti- corrosion, wearability, high temperature resistance,nonaging, high mechanical strength, non-toxin decomposition and wide temperature range of use
Operating range:

Flow: up to 400 m3/h, max 1761 GPM
Head: 80 m; 410 feet
Temperature: - 20 °C to +150 °C; -68 °F to +302 °F

Application Liquid:

  • Acid, alkali,

  • Salt solution,

  • Strong oxidant,

  • Organic solvents,

  • Corrosive slurries, solvents,

  • Hydrocarbons and other strong corrosive medium,

  • Ammonia water ion film caustic soda,

  • Waste water

ItemFluoroplastic lining in chemical pump
SuctionEnd
ModelIHF series
MaterialFluoroplatic
ModeHorizontal
DriveDirect coupling
Temperature-85 to 200 degree C
SealMechanical seal
Speed2900r/min/1450r/min
TheoryCentrifugal
PressureHigh or low pressure
UsageAcid,Alkali or strong corrosive liquid
PowerElectric
Standard or NonStandard
Outlet diameter25-250mm
Capacity0.8-400m³/h
Head5-115m
Power0.37-90kw
Warranty12 months
CertificateISO9001:2008
OEMAcceptable
FeatureSpecial for chemicals


Technical data

Model Inlet (mm)Outlet (mm)Flow m 3 /h)Head (m)Power (kw)Rotary speed (r/min)(NPSH) r(m)
IHF50-32-125503212.5202.229003
IHF50-32-160503212.532429003
IHF50-32-200503212.5507.529003
IHF65-50-12565502520329003.5
IHF65-50-160655025325.529003.5
IHF65-40-200654025501129003.5
IHF80-65-125806550205.529004
IHF80-65-160806550321129004
IHF80-50-200805050501529004
IHF100-80-12510080100201129004.5
IHF100-80-16010080100321529004.5
IHF100-65-20010065100503029004.5


Anti Heat Industrial Centrifugal Pump , Highly Corrosive Medium Electric Chemical Pump
Anti Heat Industrial Centrifugal Pump , Highly Corrosive Medium Electric Chemical Pump
