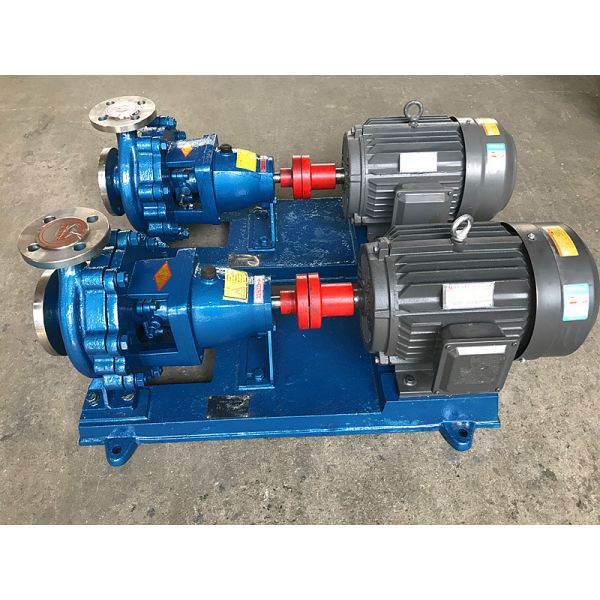

Acid Resistant Horizontal Chemical Transfer Pump Mechanical Sealed
Acid Resistant Horizontal Chemical Transfer Pump Mechanical Sealed
Acid Resistant Horizontal Chemical Transfer Pump Mechanical Sealed
Acid Resistant Horizontal Chemical Transfer Pump Mechanical Sealed
Acid Resistant Horizontal Chemical Transfer Pump Mechanical Sealed
Acid Resistant Horizontal Chemical Transfer Pump Mechanical Sealed
Specifications
Brand Name :
Yuzhou
Model Number :
IH
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets/month
Delivery Time :
3-7 working days
Packaging Details :
Plywood case package
Product Name :
Centrifugal Water Pump
Application :
chemical
Pressure :
High Pressure
Mode :
Horizontal
Colour :
Green
Max head :
125m
Description

IH series horizontal acid resistant stainless steel chemical centrifugal pump

1. IH model sulfuric acid pumps are the series of products designed according to ISO international standards. It is mainly composed of pump body, impellers, seal rings, impeller nuts, pump cover, seal parts, intermediate support, spindle, suspended parts and so on.

2. To make it convenient to disassemble, the prolonged coupling is designed, so that it is unnecessary to disassemble the Coupled input & output pipes during check and maintenance, only by disassembling the intermediate coupler of the prolonged coupling, users are able to screw out rotor part.

3. The shaft seal is mechanical seal generally, use of imported titanium rings and carbide mechanical seals and high temperature materials, corrosion resistant, no leakage.

4. The pump is connected with the motor through flexible coupling, the pump rotation direction, from the motor end, is clockwise rotation.

Technical data

Model

Flow

(m3/h)

Lift Head

(m)

Rev

(r/min)

Power

(kw)

 Diameter(mm)
Inlet Outlet
50-32-125 12.5 20 2900 2.2 50 32
6.3 5 1450 0.55
50-32-160 12.5 32 2900 3
6.3 8 1450 0.55
50-32-200 12.5 50 2900 5.5
6.3 12.5 1450 0.75
50-32-250 12.5 80 2900 11
6.3 20 1450 1.5
65-50-125 25 20 2900 3 65 50
12.5 5 1450 0.55
65-50-160 25 32 2900 5.5
12.5 8 1450 0.75
65-40-200 25 50 2900 7.5 65 40
12.5 12.5 1450 1.1
65-40-250 25 80 2900 15
12.5 20 1450 2.2
65-40-315 25 125 2900 30
12.5 32 1450 4
80-65-125 50 20 2900 5.5 80 65
25 5 1450 0.75
80-65-160 50 32 2900 7.5
25 8 1450 1.5
80-50-200 50 50 2900 15 80 50
25 12.5 1450 2.2
80-50-250 50 80 2900 22
25 20 1450 3
80-50-315 50 125 2900 37
25 32 1450 5.5
100-80-125 100 20 2900 11 100 80
50 5 1450 1.5
100-80-160 100 32 2900 15
50 8 1450 2.2
100-65-200 100 50 2900 22 100 65
50 12.5 1450 4
100-65-250 100 80 2900 37
50 20 1450 5.5
100-65-315 100 125 2900 75
50 32 1450 11
125-100-200 200 50 2900 45 125 100
100 12.5 1450 7.5
125-100-250 200 80 2900 75
100 20 1450 11
125-100-315 200 125 2900 110
100 32 1450 15
125-100-400 100 50 1450 30 125 100
150-125-250 200 20 1450 18.5 150 125
150-125-315 200 32 1450 30
150-125-400 200 50 1450 45
200-150-250 400 20 1450 37 200 150
200-150-315 400 32 1450 55
200-150-400 400 50 1450 90
