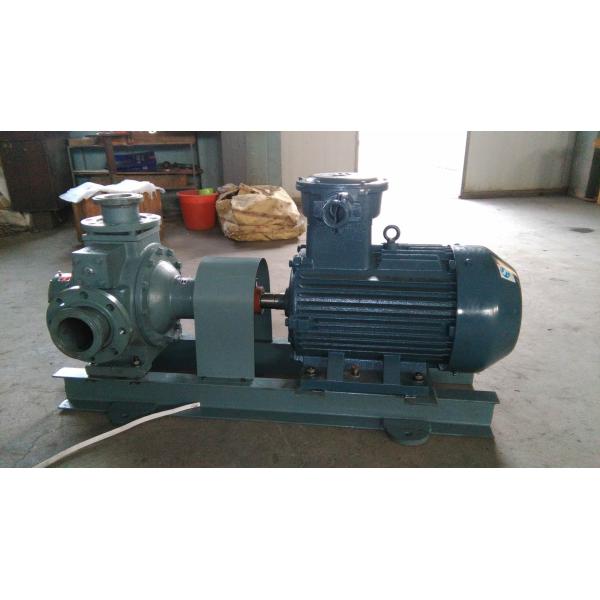

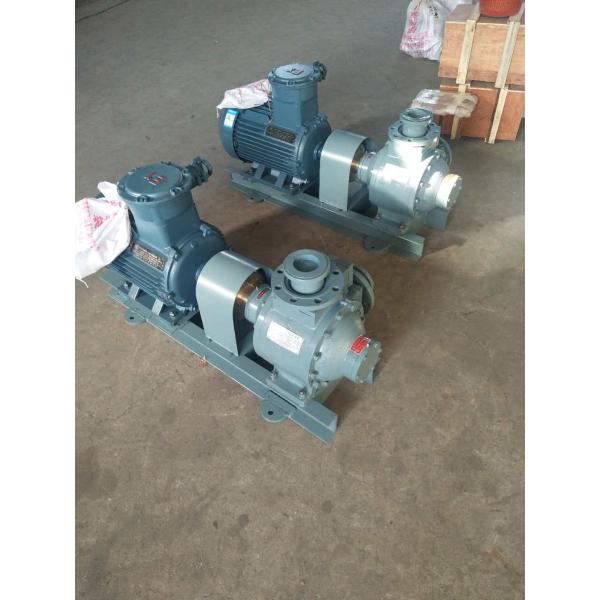

YQB series Lpg transfer pump with explosion motor 220v single phrase for nigeria market

Descreption:

YQB series Lpg transfer pump with explosion motor 220v single phrase for nigeria market, mainly used for liquefied petroleum gas, propane and butane, are also suitable for filling or transporting volatile liquids and petroleum products of similar properties. The pump is a volumetric vane pump with advanced structure. The stator curved surface is composed of a composite curve. The two ends are mechanically sealed. The fixed-fit end faces are all made of “O”-type sealing ring. The rotating moving parts are made of metal corresponding non-metal. It has the function of safe and reliable use and multi-purpose use

YQB series Lpg transfer pump Advantages:

1. Innovative cam desigb virtually eliminates cavitation

2. New materials utilized in cam and blades and heavy duty bearings extend pump life

3. Single mechanical seal, very easy seal replacement and maintenance

4. Large diameter non-metallic pins are suitable for higher pump speeds

YQB series Lpg transfer pump Technical details:

Notes:

When the pump is use, it is strictly forbidden to pump out and reverse. If the pump outlet does not discharge, stop the pump immediately, check the cylinder at the inlet for liquid, prevent the pump from pumping out, and damage the pump. (Weighing cylinders use electrons as the best, and digital changes can tell if there is no liquid). If there is a possibility of failure and troubleshooting in the cylinder.

1 No pressure, no fluid.

(1) Check the steering,

(2) Check the pipeline switch, the cylinder valve, the inlet filter is not blocked (3) Check the inverted cylinder for liquid.

2 Vibration and voice.

(1) Check if the outlet valve is open,

(2) Bearing damage, change the bearing.
