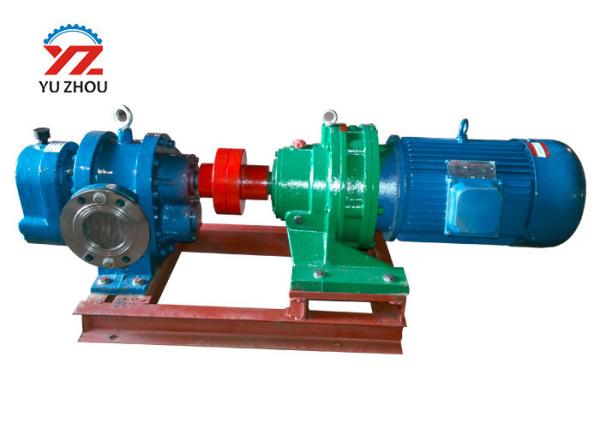

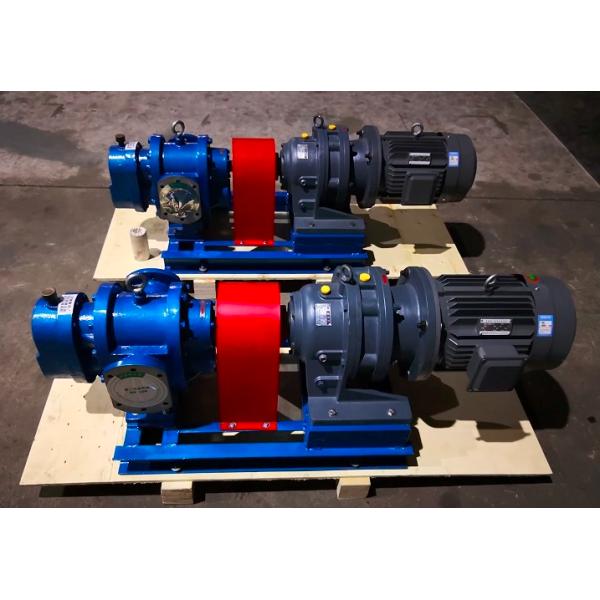

Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
Specifications
Brand Name :
Yuzhou
Model Number :
LC/LCW
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
2-5 working days
Packaging Details :
plywood case package
Product name :
gear oil transfer pump
Model :
LC/LCW
Drive type :
Gear reducer connection
Application :
Asphalt
Theory :
Gear pump
Colour :
Customized
Description

LC/LCW series electric motor gear reducer connection roots pump with heat insulation jacket

  • LC /LCW Roots pump has two driving styles,one is belt drive,the other is gear reducing drive.
  • It has advantages of low rotation rate,high efficiency,small volume,big low,low consumed power.
  • It is widely used in carrying the oil and oil products(when deliver the gasoline,the copper pump leaves are needed)and transport various oil and liquid in plant,such as crude oil,paint lubricant,glass cement,oil-based acid,tooth paste and dilute alkali liquid (soap processing)etc.
  • In food processing fields,delivering different liquid,such as bean sauce,barm,thin malt sugar etc.
  • When load and unload the various tank truck and oiler,it could run forward and backward.It has characteristics of high speed,high efficiency and easy to operate.

Product name High viscosity LC type easy to use profession manufacturer delivery roots oil pump
Import 50mm
Export 50mm
Rotation speed 400r/min
Temperature <140℃
Material Cast iron or stainless steel
Flow rate 18m3/h
Connection method Reducer or pulley
Explosion proof motor Optional
Color According to customer demand
Warranty period 1 year


Technical data:

Model

Flow

m3/h

Working

pressure

mpa

Calibre for

Inlet&outlet

mm

 Fitting motor

Power

KW

Speed

r/min

Medium temperature

≤°C

 Applied range

Reduction device

type

 Triangle belt code name
LC-10/0.6 10 0.6 40 ZD14 A1778 3 400 140

Diesel,

engine oil,

Glycerine,

petroleum,

toothpaste,

edibles,

viscous oil,etc
LC-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4 140
LC-38/0.6 38 0.6 65 ZD14 B2350 7.5 400 140
LCX-50/0.6 50 0.6 100 ZL200 15 445 140
LC-80/0.6 80 0.6 200 ZL200 30 209 140
LCT-100/0.6 100 0.6 200 ZL23.1 37 254 140
LCT-10/0.6 10 0.6 40 ZD14 B2350 3 400 140

Gasoline,

flux oil,

Kerosene,

etc
LCT-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4 140
LCT-38/0.6 38 0.6 65 ZD14 A1778 7.5 400 140
LCT-50/0.6 50 0.6 100 ZL200 18.5 445 140
LCT-80/0.6 80 0.6 200 ZL23.1 30 209 140
LCT-100/0.6 100 0.6 200 ZL23.1 37 254 140
LCW-10/0.6 10 0.6 40 ZD14 A1778 3 400 140

Asphalt,

cold oil,

viscous oil etc
LCW-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4 140
LCW-38/0.6 38 0.6 65 ZD14 B2350 7.5 400
LCW-50/0.6 50 0.6 100 ZL200 18.5 445 140
LCW-80/0.60 80 0.6 200 ZL23.1 30 209 140
LCW-100/0.6 100 0.6 200 ZL23.1 37 254 140

Electric Motor Gear Oil Transfer Pump With Heat Insulation Jacket LC/LCW Series
