Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Belt Drive Connection Gear Oil Transfer Pump High Viscosity For Conveying Asphalt
Specifications
Brand Name :
Yuzhou
Model Number :
LC/LCW
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
2-5 working days
Packaging Details :
plywood case package
Product name :
gear oil transfer pump
Model :
LC/LCW
Drive type :
Belt connection
Application :
Asphalt
Structure :
Gear pump
Warranty :
12 month
Description

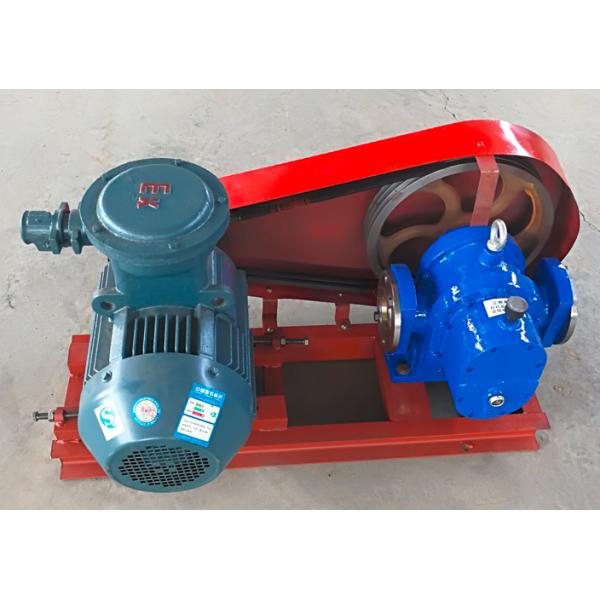

LC/LCW series belt drive connection high viscosity gear oil transfer pump for conveying asphalt

The LC Roots pump is a cam double-rotor pump. The product uses two synchronously moving rotors. The rotor is driven by an external synchronous gearbox, and the rotor is rotated in the opposite direction by the drive shaft. There is no friction contact in the volume and the service life is very long. Compared with the NYP internal gear pump, the LC Roots pump has a long service life and the price is equivalent. It is mainly used to transport high viscosity fluids (molasses, etc.).

Product name High viscosity LC type easy to use profession manufacturer delivery roots oil pump
Import 50mm
Export 50mm
Rotation speed 400r/min
Temperature <140℃
Material Cast iron or stainless steel
Flow rate 18m3/h
Connection method Reducer or pulley
Explosion proof motor Optional
Color According to customer demand
Warranty period 1 year


Technical data:

Model

Flow

m3/h

Working

pressure

mpa

Calibre for

Inlet&outlet

mm

 Fitting motor

Power

KW

Speed

r/min

Medium temperature

≤°C

 Applied range

Reduction device

type

 Triangle belt code name
LC-10/0.6 10 0.6 40 ZD14 A1778 3 400 140

Diesel,

engine oil,

Glycerine,

petroleum,

toothpaste,

edibles,

viscous oil,etc
LC-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4 140
LC-38/0.6 38 0.6 65 ZD14 B2350 7.5 400 140
LCX-50/0.6 50 0.6 100 ZL200 15 445 140
LC-80/0.6 80 0.6 200 ZL200 30 209 140
LCT-100/0.6 100 0.6 200 ZL23.1 37 254 140
LCT-10/0.6 10 0.6 40 ZD14 B2350 3 400 140

Gasoline,

flux oil,

Kerosene,

etc
LCT-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4 140
LCT-38/0.6 38 0.6 65 ZD14 A1778 7.5 400 140
LCT-50/0.6 50 0.6 100 ZL200 18.5 445 140
LCT-80/0.6 80 0.6 200 ZL23.1 30 209 140
LCT-100/0.6 100 0.6 200 ZL23.1 37 254 140
LCW-10/0.6 10 0.6 40 ZD14 A1778 3 400 140

Asphalt,

cold oil,

viscous oil etc
LCW-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4 140
LCW-38/0.6 38 0.6 65 ZD14 B2350 7.5 400
LCW-50/0.6 50 0.6 100 ZL200 18.5 445 140
LCW-80/0.60 80 0.6 200 ZL23.1 30 209 140
LCW-100/0.6 100 0.6 200 ZL23.1 37 254 140
