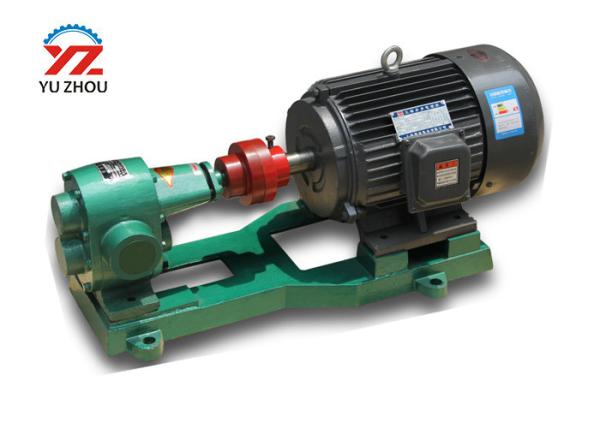

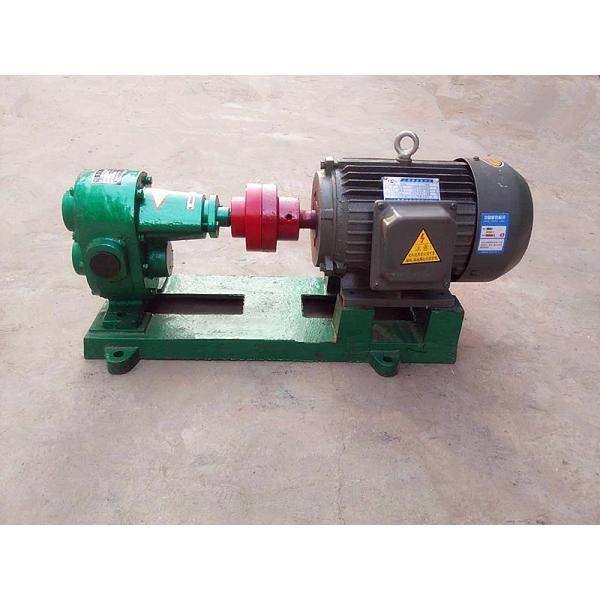

Electric Oil Transfer Pump 380v 220v 415v , CBN Series Heavy Oil Pump
Electric Oil Transfer Pump 380v 220v 415v , CBN Series Heavy Oil Pump
Electric Oil Transfer Pump 380v 220v 415v , CBN Series Heavy Oil Pump
Electric Oil Transfer Pump 380v 220v 415v , CBN Series Heavy Oil Pump
Electric Oil Transfer Pump 380v 220v 415v , CBN Series Heavy Oil Pump
Electric Oil Transfer Pump 380v 220v 415v , CBN Series Heavy Oil Pump
Specifications
Brand Name :
Yuzhou
Model Number :
CBN
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
2-5 working days
Packaging Details :
plywood case package
Product name :
gear oil transfer pump
Model :
CBN
Drive type :
Belt / electric direct connection
Application :
Heavy oil
Structure :
Gear pump
Warranty :
12 month
Description

CBN series heavy oil pump gear oil transfer pump electric motor connection 380v 220v 415v

1.Introduction
CBN series heavy oil pump composes of pump body, cover ,gear, and shaft-end seal parts and so on. Using transmission of bridge type exterior pulley and direct connection of motors with low speed and noise, high suction characters. On the other hand, sealing using 2 types mechanical sealing structures due to the transfer liquids.
The series can all adopt stainless anti-acid and anti-corrosion material to make, suitable for food industry,pharmacy and daily chemical industry.
Proper medium temperature:below 230C
Proper medium viscosity:below 2000mm2/S
2.Transfer medium
1).Paint,rosin,paraffin wax,soap,sludge,asphalt,high viscosity oil, etc.
2).Butter,syrup,sauce,grease,toothpaste,etc.

ModelCBN heavy oil pump
Flow rate1- 60cbm/h
Output pressure4-25 Bar
Pump materialCast iron/ stainless steel
Efficiency80%
Frequency&voltageCustomized from the customer power supply
Application scope

Transport various lubrication liquid at temperature not higher than 70 ℃. If temperature is up to 200 ℃,anti-high temperature material will be matched.Its viscosity is 5*10-5-15*10-3m2/s.
Such as : Alcohol.gasoline, Aqueous Ammonia, Isopropyl ether, Petoleum products and so on.


Technical data:

Model

Caliber

(mm)

Flow

Pressure

(MPa)

Speed ( r/min)

Power (KW)

m3/hL/min
CBN-4324660.759601.5
CBN-74071160.759603
CBN-1350132160.759605.5
CBN-1870183000.69607.5
CBN-3080305000.696011
CBN-38100386330.696015
CBN-45100457500.696018.5
CBN-601006010000.496022


Troubles and Solutions

Troubles

Productive

Reason

Solutions

Discharging oil or discharging little oil

1.Revolving direction reversed
2.Valve closed
3.Oil absorption tube has not been soaked into the oil
4.The high of absorption exceeds the rated
5.The filtering area of the filter at absorption end is too small
6.Air leakage in absorption tube
7.Safety valve blocked or doesn’t work well
8. Lower temperature of oil results in viscosity increasing

1.Change in to right direction 2.Open valve
3.Check out oil absorption tube and soak it in the liquid 4.Measure absorption pressure and raise the oil level 5.Change filter and extend the filtering area6.Check every joint and seal them with sealing material 7.Disassemble and wash safety valve and polish with abrasive grease 8. Heat liquid or reduce exhausting pressure or the volume of oil exhaustion

No pressure or pressure not rising1.The button of the pressure meter is still in OFF position 2.The pressure of the safety valve is too low3.Side tube valve is on 4.High temperature,low viscosity o foil and small resistance of the tube 5.Air leakage in the tube1.Press the button ON of the pressure meter2.Readjust the safety valve pressure 3.Close the side tube valve 4.Reduce oil temperature 5. Check out absorption tube
Oil leakage in mechanical seal1.Shaft seal has not been adjusted properly 2.O-seal ring wear 3.The defects caused by wearing of stationary and rotating rings of mechanical seal4.Spring flabby1.Adjust it 2.Change O-seal 3.Change stationary and rotating rings or polish the magain4.Change spring
Noise and vibration1.Improper assembling 2.The in concentricity of pump shaft and motor shaft 3.Absorption tube or filter stopped up 4.Absorption tube dimension is too small and long.It could not pump in,for resistance is too big 5.Oil exhaustion tube’s resistance is too big6.Air leakage 7.Fastener is relaxed 8.Gears and bearings stand sides show serious wear and tear or gripped1.Check out and maintain 2.adjust it 3.Clear dirt things in the absorption tube or filter 4.Read just it 5.Check up whether exhaustion tube or valve are stopped up6.Check up and maintain7.Check up and tighten it 8.Disassemble and maintain or change them
Safely valve unworkable1.Wrong position2.Pressure too high 3.Safety valve chip gripped1.Reassembling it2.Lower the pressure 3.Disassembling,wash and adjust
