Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Blast Protection Double Gear Pump , Gear Lube Transfer Pump WCB Series
Specifications
Brand Name :
Yuzhou
Model Number :
WCB
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
2-5 working days
Packaging Details :
plywood case package
Product name :
gear oil transfer pump
Model :
WCB
Power :
Electric motor drive
Colour :
Customized
Place of original :
China
Material :
Cast iron/stainless steel
Description

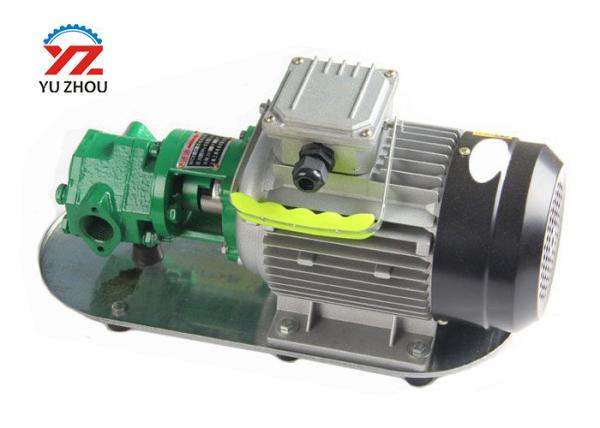

WCB series double gear pump portable oil pump electric gear oil transfer pump

Introduction :

1. WCB double gear pump portable oil pump electric diesel transfer pump is light, small volume, convenience to carry and move.

2. It is widely used in oil drum carrier, oil refinery, electric power plant, substation and oil depot.

3. The double gear pump by adopting cast iron material, pump can transport various oil, such as crude oil, diesel oil and lubricating oil.

4. By adopting stainless steel material, it works for medium like non-lubricating oil, beverage and corrosive liquid.

Product details:

Casing parts material: Cast iron, Stainless Steel
Maximum drive rating: 1.1kW(1.5HP)
Maximum caliber: 25mm(1inch)
Maximum discharge-side pressure: 0.3MPa(3bar)
Maximum suction 5m(16.4ft)
Flow rate range: 30-100L/min(7.9-26.4US.GPM)

Technical Parameters:

Model Caliber Capacity Head Motor power Voltage
(mm) (L/min) (m) (W) (Phase)
WCB-30 Cast iron 20 30 30 370 1ph/3ph
WCB-50 20 50 30 550 1ph/3ph
WCB-75 25 75 30 750 1ph/3ph
WCB-100 25 100 30 1100 1ph/3ph
WCB-30P Stainless steel 20 30 30 370 1ph/3ph
WCB-50P 20 50 30 550 1ph/3ph
WCB-75P 25 75 30 750 1ph/3ph
WCB-100P 25 100 30 1100 1ph/3ph
