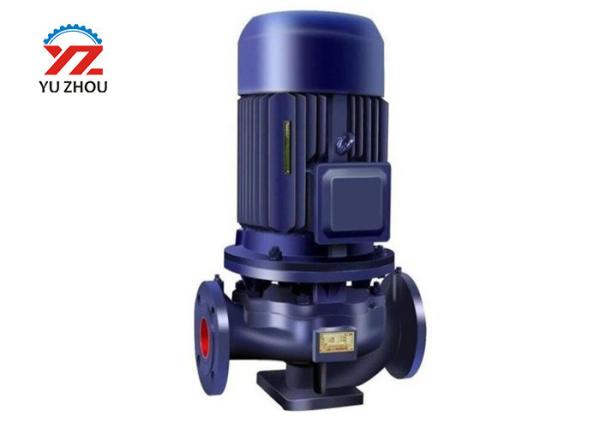

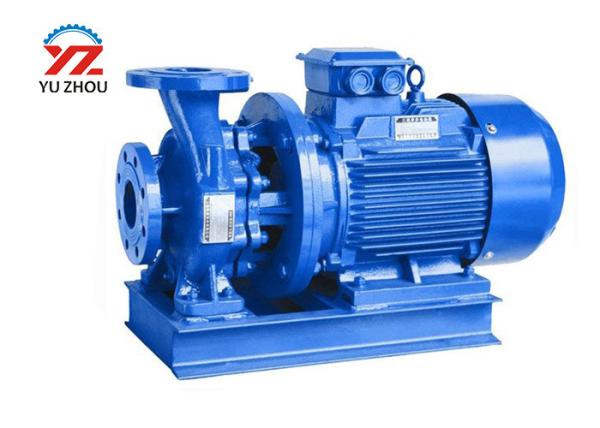

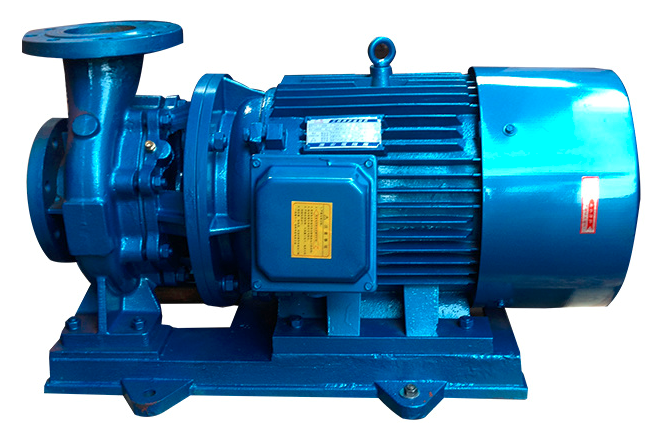

0.5hp 5.5hp 25hp Centrifugal Water Pump For High Rise Building Water Supply
0.5hp 5.5hp 25hp Centrifugal Water Pump For High Rise Building Water Supply
0.5hp 5.5hp 25hp Centrifugal Water Pump For High Rise Building Water Supply
0.5hp 5.5hp 25hp Centrifugal Water Pump For High Rise Building Water Supply
0.5hp 5.5hp 25hp Centrifugal Water Pump For High Rise Building Water Supply
0.5hp 5.5hp 25hp Centrifugal Water Pump For High Rise Building Water Supply
Specifications
Brand Name :
Yuzhou
Model Number :
ISW/ISG
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets/month
Delivery Time :
3-7 working days
Packaging Details :
Plywood case package
Product Name :
Centrifugal Water Pump
Material :
stainless steel/cast iron
Warranty :
One Year
Application :
Clean water
Connection :
Flanges
Structure :
Vertical /horizontal
Description

0.5hp 1hp 1.5hp 3hp 5hp 5.5hp 7.5hp 10hp 15hp 25hp Electric Motor Driven Centrifugal Water Pump

Application:

1, ISW ISG Horizontal Vertical High Efficiency Centrifugal Water Pump Electric Motor Driven is used for conveying clean water and other liquids which physical and chemical properties is similar to clean water. It is suitable for water supply and drainage of Factory and city, high-rise building’s water supply, garden irrigation, fire boosting pump. Temperature ≤ 80 ° C

2, ISWB is for transporting oil or Flammable, explosive liquids such as petrol, diesel, kerosene and other petroleum products. Temperature : -20 ° C -120 ° C

3, ISWR is widely used as hot water circulation pump for boiler and urban heating system. Temperature ≤ 120 ° C

4, ISWH chemical pump is for transporting liquids, without solid particles, which corrosive and viscosity is similar to water. Pump is most used in petroleum production, chemical factory, power station, paper making, food, pharmaceutical area .Temperature : -20 ° C - 120 ° C.

Working Principle: Centrifugal
Main applications: Water (oil, chemical, contact us)
Driver: Electric motor
Power Specs: 220V/240V380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature: 100℃ (212°F)
Type of connection: Flange
Casing: Cast iron, Stainless steel
Impeller: Cast iron, Stainless steel, Bronze
Shaft seal type: Mechanical seal
Maximum drive rating: 250KW(340HP)
Maximum caliber: 500mm(20inch)
Maximum discharge-side pressure: 1.6MPa(16bar)
Maximum head: 160m(524.8ft)
Flow rate range: 1.1-2400m3/h(4.8-10560US.GPM)
Pump type: Water, Hot water type, oil type, chemical type

Technical data

Model Capacity (m3/h) Lift head (m) Speed (r/min) Motor (KW) Inlet&Outlet Diameter (mm)
150-400

140

200

260

53

50

44

 1450 45 150
150-400A

131

187

243

46.6

44

38.3

 1450 37 150
150-400B

122

174

226.5

40

38

33

 1450 30 150
150-250(I)

120

200

240

87

80

72

 2900 75 150
150-250(I)A

112

187

224

76

70

63

 2900 55 150
150-250(I)B

104

173

208

65

60

54

 2900 45 150
150-315(I)

120

200

240

133

125

120

 2900 110 150
150-315(I)A

112

187

224

116

110

105

 2900 90 150
150-315(I)B

104

173

208

100

95

91

 2900 75 150
200-200

140

200

260

13.8

12.5

10.6

 1450 15 200
200-200A

125

179

232.5

11

10

8.5

 1450 11 200
200-250

140

200

260

21.8

20

17

 1450 18.5 200
200-250A

129

184.4

240

18.5

17

14.4

 1450 15 200
200-250B

117

167

217.5

15.2

14

12

 1450 11 200
200-315

140

200

260

33.8

32

28

 1450 30 200
200-315A

131

189

243

29.5

28

24.5

 1450 22 200
200-315B

121

173

225

25

24

21

 1450 18.5 200
200-400

140

200

260

53

50

44

 1450 45 200
200-400A

131

187

243

46.6

44

38.3

 1450 37 200
200-400B

122

174

226.5

40

38

33

 1450 30 200
200-400C

112

160

208

34

32

28

 1450 22 200
200-200(I)

280

400

520

13.4

12.5

10.5

 1450 22 200
200-200(I)A

250

358

465

10.7

10

8.5

 1450 18.5 200
200-250(I)

280

400

520

22.2

20

14

 1450 30 200
200-250(I)A

250

358

465

18

14

11.2

 1450 22 200
200-250(I)B

226

322

419

14.4

13

7.3

 1450 18.5 200
200-315(I)

280

400

520

36

32

26

 1450 55 200
200-315(I)A

262

374

486

31.5

28

23

 1450 45 200
200-315(I)B

242

346

450

27

24

19.5

 1450 37 200
200-400(I)

280

400

520

54.5

50

39

 1450 75 200
200-400(I)A

362

374

486

48

44

34

 1450 75 200
200-400(I)B

242

346

450

41.4

38

29.6

 1450 55 200
200-400(I)C

224

320

416

34.9

32

25

 1450 45 200
250-250

350

550

650

22

20

16

 1450 45 250
250-250A

300

500

600

18.3

17

14

 1450 37 250
250-235

300

500

600

14

12.5

11

 1480 22 250
250-300

300

500

600

22

20

16

 1480 37 250
250-315

350

550

650

34

32

28

 1450 75 250
250-315A

300

500

600

29.5

28

24

 1450 55 250
250-315B

260

450

520

25

24

20

 1450 45 250
250-400

300

500

600

54.5

50

39

 1480 90 250
300-235

540

720

900

20.5

18

15.0

 1450 55 300
