Specifications
Brand Name :
Yuzhou
Model Number :
QJ
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets/month
Delivery Time :
3-7 working days
Packaging Details :
Plywood case package
Product name :
Submersible Water Transfer Pump
Usage :
Water
Well diameter :
6",7",8",10"/150mm,175mm,200mm,250mm
Application :
Submersible
Head range :
15-200m
OEM :
YES
Description

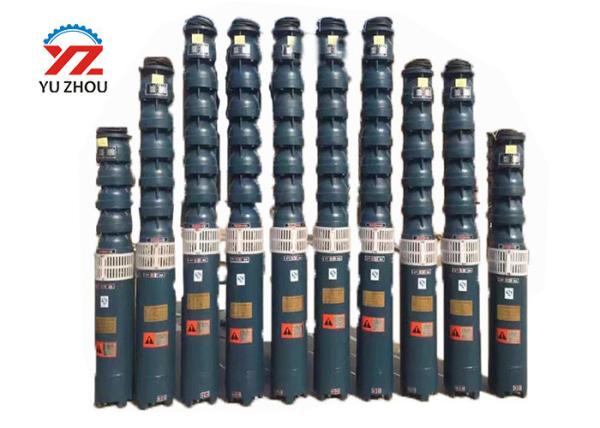

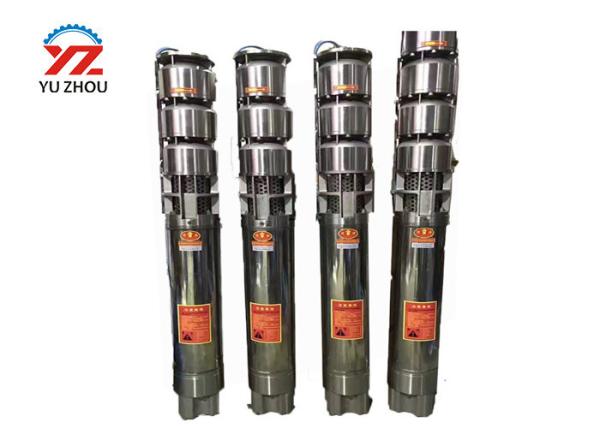

QJ Series Vertical Electric Portable Irrigation Electric Submersible Deep Well Borehole Water Pump

Brief Introduction
QJ series submersible pump including QJ deep well(borehole)submersible pumps, QJH stainless steel submersible pumps, QJT bottom-suction submersible pumps and QJR hot water submersible pumps.

Submersible well pump overview

Pump diameter: 7 8 10 12 14 16 18 Inch well submersible pump(Well size has to be larger than pump diameter)
Flow rate: 5m3/h-2500m3/h
Head rate: 10m-600m
Motor Power: 2.2kw-410kw
Voltage:380v/415v/420v/440v/460v/480v/660v /1140v, low pressure
Frequency: 3 phase 50hz/60hz
Material: Cast iron/ss304/ss316/ss316L/duplex stainless/ss904(pump sets or casting parts)
Install: Vertical

Submersible well pump applications

Groundwater pumping
Irrigation system
Water supply system
Clean water supply
Sea water, salt water, or Corrosive liquid

Submersible well pump features

Continuous running 2500 hours
7 years life with clean water
3 years life with water have impurities
Low noise and long lifetime
Water-filled motor, no pollution


Submersible well pump parameters:

ModelMotor PowerCapacity RangeHead RangeRated Current
QJ Serieskwhpm3/hmA
175QJ10-165/1211159-11158-17226.1
175QJ20-143/11152018-22120-16549.7
200QJ20-148/11152018-22120-17033.9
200QJ20-162/1218.52518-22138-18741.6
200QJ20-175/1318.52518-22150-21041.6
200QJ20-189/14223018-22160-21748.2
200QJ25-140/1018.52523-27110-16141.6
200QJ25-154/1118.52523-27138-18441.6
200QJ25-168/12223023-27140-19548.2
200QJ25-182/13223023-27150-21048.2
200QJ25-196/14253423-27160-22554.5
200QJ32-143/11223029-35121-17048.2
200QJ32-144/9223029-35123-17254.5
200QJ32-156/12253429-35132-18054.5
200QJ32-176/1304029-35148-20365.4
200QJ50-156/12375046-54132-18079.7
200QJ50-182/14456046-54154-21096.9
250QJ50-140/7304046-54119-16164.2
250QJ50-180/9456046-54150-21077.8
250QJ140-150/10100136130-150130-171203.1
250QJ140-165/11110150143-188158-162223.4
250QJ160-150/10110150186-214128-170222.1
